3/4" UNC B7/2H Stud Bolt Kit A193/A194

Skip to the beginning of the images gallery

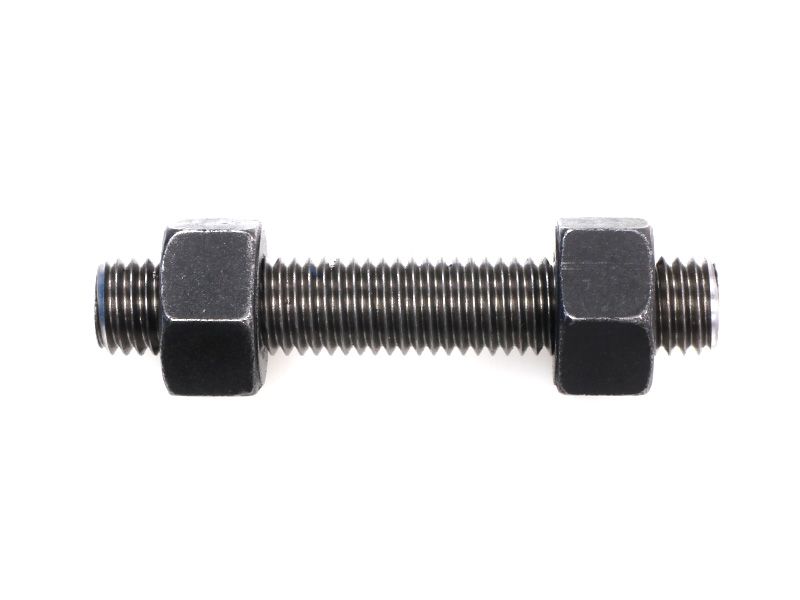

3/4" Plain B7, 2H Stud Bolt Kit

B7 stud bolts are commonly sold as plain (unplated) bare metal finish however we offer surface coatings which have benefits for corrosion protection, lubrication and or wear resistant properties.

Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2x 2H grade heavy hex nuts.
ASTM A193/A194 stud bolts and nuts come standard with EN 3.1 certification.

Submit items for a quote by simply selecting length, and quantity and then add to cart. View Cart to submit quote (available to all account customers with Trade Portal access).

SKU 6B7SBNUU20

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
3/4” x 50mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 60mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 65mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.20
3/4” x 70mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.25
3/4” x 75mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.35
3/4” x 80mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.40
3/4” x 90mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.55
3/4” x 95mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.60
3/4” x 100mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.70
3/4” x 110mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $3.90
3/4” x 115mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.00
3/4” x 120mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.10
3/4” x 125mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.15
3/4” x 130mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.25
3/4” x 140mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.40
3/4” x 145mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.45
3/4” x 150mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.50
3/4” x 160mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.65
3/4” x 165mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.75
3/4” x 170mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $4.80
3/4” x 180mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.05
3/4” x 185mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.15
3/4” x 190mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.20
3/4” x 195mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.30
3/4” x 200mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.35
3/4” x 210mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.50
3/4” x 215mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.55
3/4” x 220mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.65
3/4” x 230mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.85
3/4” x 235mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $5.90
3/4” x 240mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $6.00
3/4” x 250mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $6.20
3/4” x 255mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $6.25
3/4” x 260mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $6.35
3/4” x 265mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $6.40
3/4” x 275mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $6.55
3/4” x 280mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $6.65
3/4” x 285mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $6.75
3/4” x 290mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $6.80
3/4” x 300mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $6.95
3/4” x 305mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $7.05
3/4” x 310mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $7.10
3/4” x 320mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $7.30
3/4” x 325mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $7.40
3/4” x 330mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $7.45
3/4” x 335mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $7.60
3/4” x 345mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $7.75
3/4” x 350mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $7.80
3/4” x 355mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 360mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 370mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 375mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 380mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 385mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 395mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 400mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 405mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 415mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 420mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 425mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 430mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 440mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 445mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 450mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 455mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 465mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 470mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 475mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 485mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 490mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 495mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 500mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00
3/4” x 510mm UNC B7 Studbolt A193, 2H A194 Nuts Plain From $0.00

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Delivery	7 - 10 DAYS. Lead times may vary depending on quantity.
Diameter / Gauge	3/4"
Thread Type	UNC
Bolt / Stud Property	ASTM A193 B7
Nut Properties	ASTM A194 Gr 2H
Material / Finish	Plain (Unplated)
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]	Weight [ kg ]
1280.0200050	3/4” x 50mm UNC	Plain	860 MPa	720 MPa	0.27
1280.0200060	3/4” x 60mm UNC	Plain	860 MPa	720 MPa	0.29
1280.0200065	3/4” x 65mm UNC	Plain	860 MPa	720 MPa	0.3
1280.0200070	3/4” x 70mm UNC	Plain	860 MPa	720 MPa	0.31
1280.0200075	3/4” x 75mm UNC	Plain	860 MPa	720 MPa	0.32
1280.0200080	3/4” x 80mm UNC	Plain	860 MPa	720 MPa	0.33
1280.0200090	3/4” x 90mm UNC	Plain	860 MPa	720 MPa	0.35
1280.0200095	3/4” x 95mm UNC	Plain	860 MPa	720 MPa	0.36
1280.0200100	3/4” x 100mm UNC	Plain	860 MPa	720 MPa	0.37
1280.0200110	3/4” x 110mm UNC	Plain	860 MPa	720 MPa	0.38
1280.0200115	3/4” x 115mm UNC	Plain	860 MPa	720 MPa	0.39
1280.0200120	3/4” x 120mm UNC	Plain	860 MPa	720 MPa	0.4
1280.0200125	3/4” x 125mm UNC	Plain	860 MPa	720 MPa	0.41
1280.0200130	3/4” x 130mm UNC	Plain	860 MPa	720 MPa	0.42
1280.0200140	3/4” x 140mm UNC	Plain	860 MPa	720 MPa	0.44
1280.0200145	3/4” x 145mm UNC	Plain	860 MPa	720 MPa	0.45
1280.0200150	3/4” x 150mm UNC	Plain	860 MPa	720 MPa	0.46
1280.0200160	3/4” x 160mm UNC	Plain	860 MPa	720 MPa	0.48
1280.0200165	3/4” x 165mm UNC	Plain	860 MPa	720 MPa	0.49
1280.0200170	3/4” x 170mm UNC	Plain	860 MPa	720 MPa	0.5
1280.0200180	3/4” x 180mm UNC	Plain	860 MPa	720 MPa	0.52
1280.0200185	3/4” x 185mm UNC	Plain	860 MPa	720 MPa	0.52
1280.0200190	3/4” x 190mm UNC	Plain	860 MPa	720 MPa	0.53
1280.0200195	3/4” x 195mm UNC	Plain	860 MPa	720 MPa	0.54
1280.0200200	3/4” x 200mm UNC	Plain	860 MPa	720 MPa	0.55
1280.0200210	3/4” x 210mm UNC	Plain	860 MPa	720 MPa	0.57
1280.0200215	3/4” x 215mm UNC	Plain	860 MPa	720 MPa	0.58
1280.0200220	3/4” x 220mm UNC	Plain	860 MPa	720 MPa	0.59
1280.0200230	3/4” x 230mm UNC	Plain	860 MPa	720 MPa	0.61
1280.0200235	3/4” x 235mm UNC	Plain	860 MPa	720 MPa	0.62
1280.0200240	3/4” x 240mm UNC	Plain	860 MPa	720 MPa	0.63
1280.0200250	3/4” x 250mm UNC	Plain	860 MPa	720 MPa	0.65
1280.0200255	3/4” x 255mm UNC	Plain	860 MPa	720 MPa	0.65
1280.0200260	3/4” x 260mm UNC	Plain	860 MPa	720 MPa	0.66
1280.0200265	3/4” x 265mm UNC	Plain	860 MPa	720 MPa	0.67
1280.0200275	3/4” x 275mm UNC	Plain	860 MPa	720 MPa	0.69
1280.0200280	3/4” x 280mm UNC	Plain	860 MPa	720 MPa	0.7
1280.0200285	3/4” x 285mm UNC	Plain	860 MPa	720 MPa	0.71
1280.0200290	3/4” x 290mm UNC	Plain	860 MPa	720 MPa	0.72
1280.0200300	3/4” x 300mm UNC	Plain	860 MPa	720 MPa	0.74
1280.0200305	3/4” x 305mm UNC	Plain	860 MPa	720 MPa	0.75
1280.0200310	3/4” x 310mm UNC	Plain	860 MPa	720 MPa	0.76
1280.0200320	3/4” x 320mm UNC	Plain	860 MPa	720 MPa	0.78
1280.0200325	3/4” x 325mm UNC	Plain	860 MPa	720 MPa	0.79
1280.0200330	3/4” x 330mm UNC	Plain	860 MPa	720 MPa	0.79
1280.0200335	3/4” x 335mm UNC	Plain	860 MPa	720 MPa	0.8
1280.0200345	3/4” x 345mm UNC	Plain	860 MPa	720 MPa	0.82
1280.0200350	3/4” x 350mm UNC	Plain	860 MPa	720 MPa	0.83
1280.0200355	3/4” x 355mm UNC	Plain	860 MPa	720 MPa	0.84
1280.0200360	3/4” x 360mm UNC	Plain	860 MPa	720 MPa	0.85
1280.0200370	3/4” x 370mm UNC	Plain	860 MPa	720 MPa	0.87
1280.0200375	3/4” x 375mm UNC	Plain	860 MPa	720 MPa	0.88
1280.0200380	3/4” x 380mm UNC	Plain	860 MPa	720 MPa	0.89
1280.0200385	3/4” x 385mm UNC	Plain	860 MPa	720 MPa	0.90
1280.0200395	3/4” x 395mm UNC	Plain	860 MPa	720 MPa	0.92
1280.0200400	3/4” x 400mm UNC	Plain	860 MPa	720 MPa	0.92
1280.0200405	3/4” x 405mm UNC	Plain	860 MPa	720 MPa	0.93
1280.0200415	3/4” x 415mm UNC	Plain	860 MPa	720 MPa	0.95
1280.0200420	3/4” x 420mm UNC	Plain	860 MPa	720 MPa	0.96
1280.0200425	3/4” x 425mm UNC	Plain	860 MPa	720 MPa	0.97
1280.0200430	3/4” x 430mm UNC	Plain	860 MPa	720 MPa	0.98
1280.0200440	3/4” x 440mm UNC	Plain	860 MPa	720 MPa	1.00
1280.0200445	3/4” x 445mm UNC	Plain	860 MPa	720 MPa	1.01
1280.0200450	3/4” x 450mm UNC	Plain	860 MPa	720 MPa	1.02
1280.0200455	3/4” x 455mm UNC	Plain	860 MPa	720 MPa	1.03
1280.0200465	3/4” x 465mm UNC	Plain	860 MPa	720 MPa	1.05
1280.0200470	3/4” x 470mm UNC	Plain	860 MPa	720 MPa	1.06
1280.0200475	3/4” x 475mm UNC	Plain	860 MPa	720 MPa	1.06
1280.0200485	3/4” x 485mm UNC	Plain	860 MPa	720 MPa	1.08
1280.0200490	3/4” x 490mm UNC	Plain	860 MPa	720 MPa	1.09
1280.0200495	3/4” x 495mm UNC	Plain	860 MPa	720 MPa	1.10
1280.0200500	3/4” x 500mm UNC	Plain	860 MPa	720 MPa	1.11
1280.0200510	3/4” x 510mm UNC	Plain	860 MPa	720 MPa	1.13
