FIXING ROOF SHEETING TO METAL

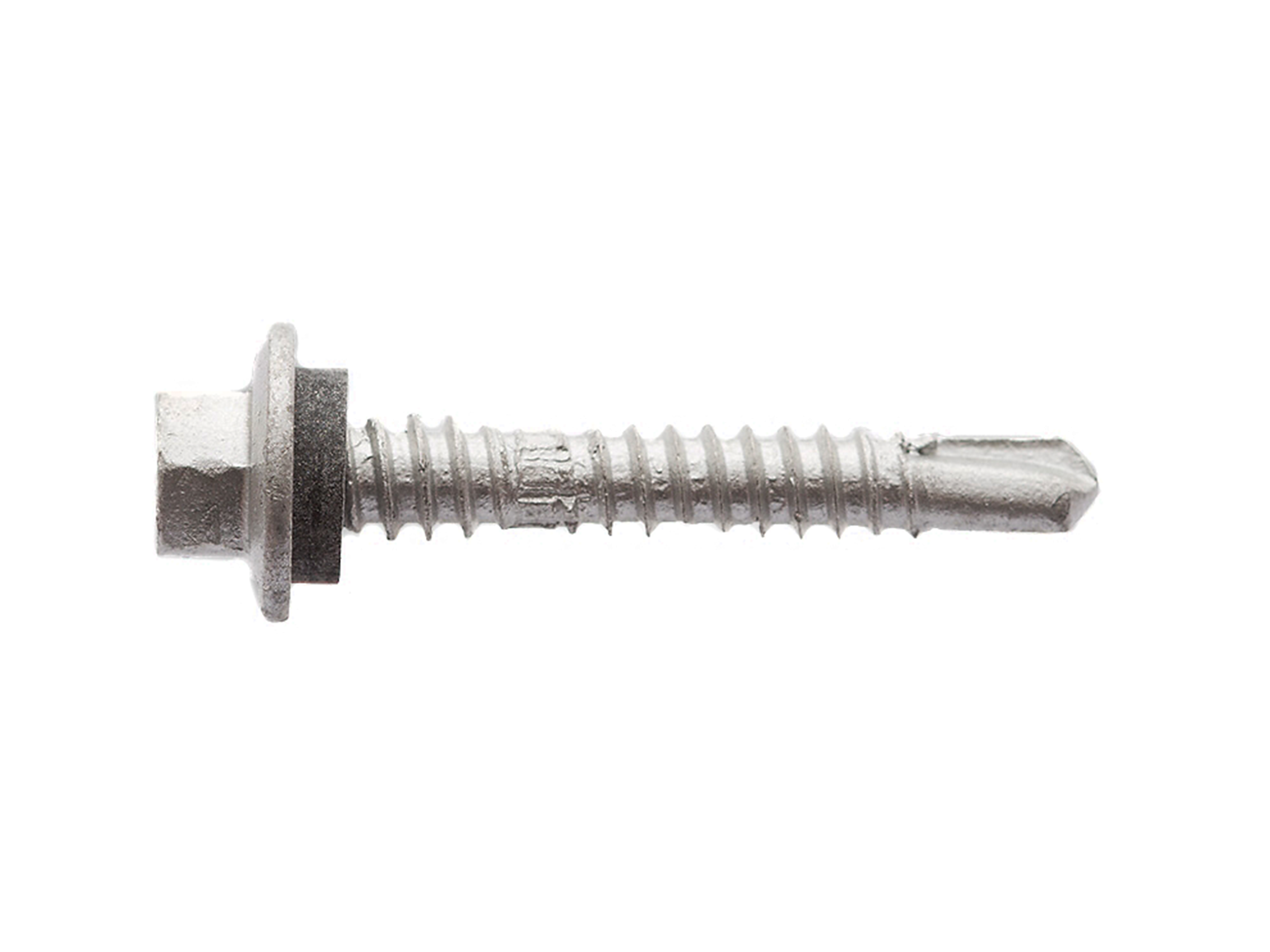

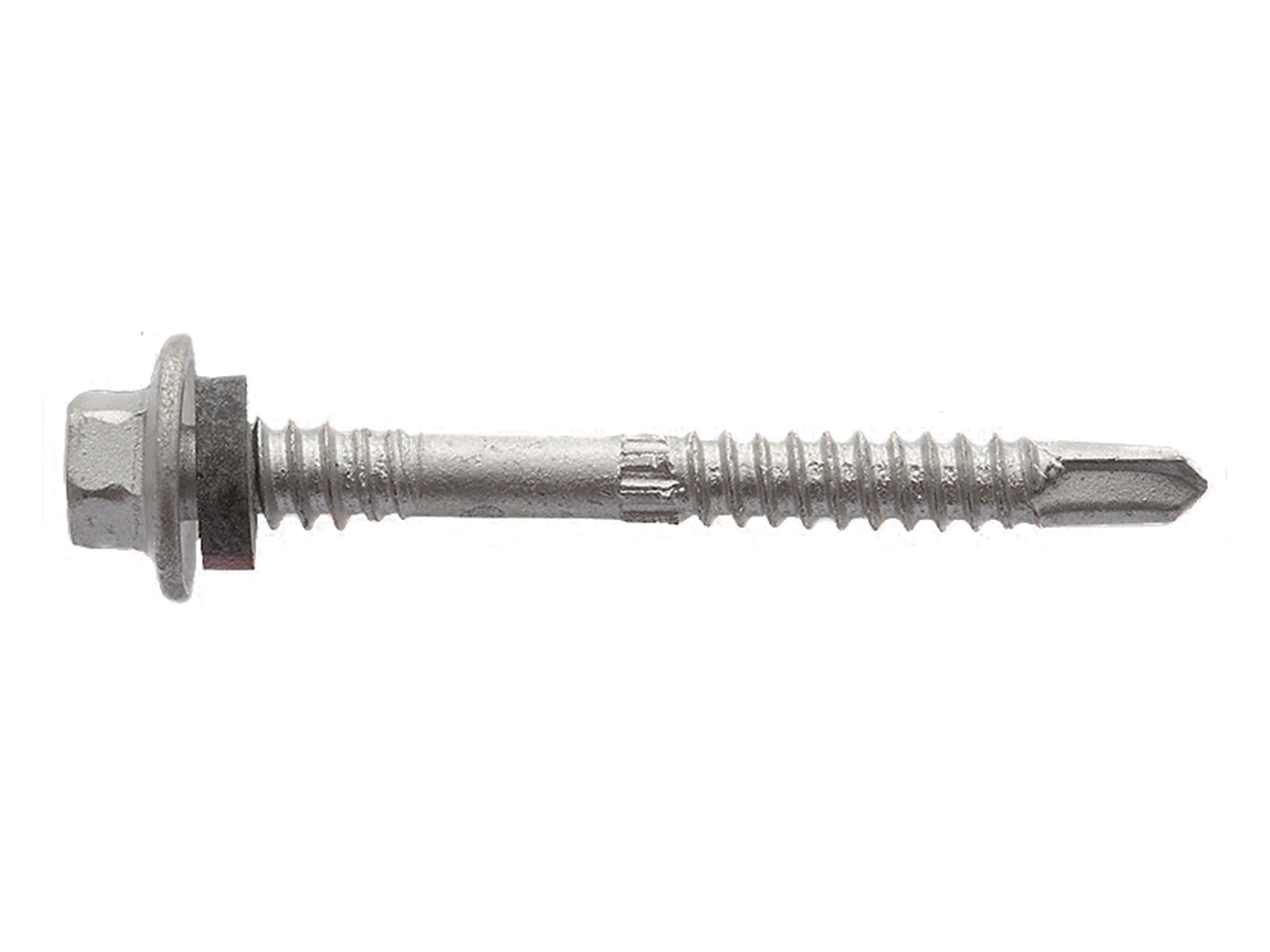

12-14 Metal Teks® Screws Hex Head Higrip®
CLEARANCE ITEM | LIMITED STOCK
Designed for crest fixing into corrugated and square rib roofing to steel purlins. Buildex® 12-14 Metal Teks® screws feature Higrip® threads and a neo sealing washer. Suitable for fixing metal roofing to steel between 1mm and 5mm thick.
Features & Benefits
- High pull-out strength
- Climaseal® 4 corrosion protection
- Under-roof Corrosion Protection with Shankguard® feature* which prevents the scratching and scouring of the fastener shank that can happen during installation
- Higrip® feature grips to the roof sheeting combined with the sealing washer to create a waterproof join. It also prevents sheet ride down the shank when the roof is walked on.
- Painted heads Colourmatch® to Colorbond® colours available, select below.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
TECHNICAL INFO:
INSTALLATION
- Drill Capacity: 1.0–5.0mm of Steel
- Driver Type: 5/16 Hex Socket
- Installation Speed: mains powered or cordless screw driver with a drive speed of 3,000 RPM
- Grip Length: 12.5 / 14.5mm (39mm), 21.5 / 23.5mm (50mm)

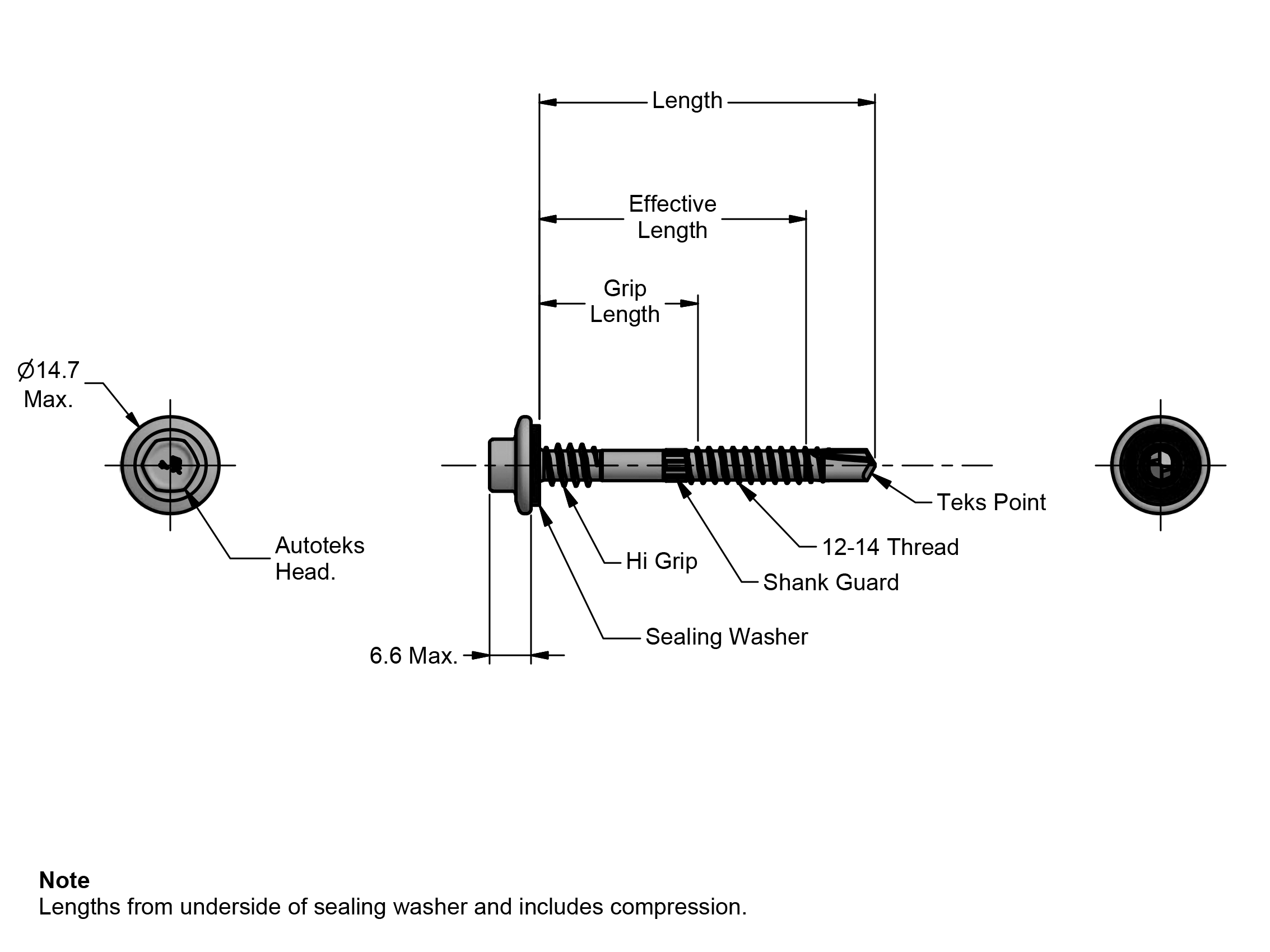

PHYSICAL CHARACTERISTICS
- Head Type: Hex Head
- Point Type: Self-Drilling No 3 Tek® Point
- Material: Carbon Steel SAE 1022
- Finish: Climaseal4® Mechanical Galvanised
- Washer Dia: 14.7mm
- Head Height: 6.6mm
Metal Teks®, AutoTeks®, Roof Zips®, Higrip®, Climaseal®, and Colormatch® are all registered trademarks of ITW Buildex. Colorbond® colour range is a trademark of BluScope Steel
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Galvanised |
| Material Grade | Carbon Steel |
| Head Type | Hex Sealing Washer |
| Driver Type | Hex 1/2'' Socket Bit |
| Point Type | Drill Point No.3 |
| Thread Type | Coarse |
Technical Information
| SKU | Select | Colour | Colour | Item |
|---|---|---|---|---|
| 1158.0553900 | 12-14 x 39mm PLAIN | Climaseal 4 | - | 12-14 x 39mm AutoTeks® |
| 1159.0553901 | 12-14 x 39mm Colorbond | Basalt | Basalt | 12-14 x 39mm AutoTeks® |
| 1159.0553907 | 12-14 x 39mm Colorbond | Monument | Monument | 12-14 x 39mm AutoTeks® |
| 1159.0553909 | 12-14 x 39mm Colorbond | Night Sky | Night Sky | 12-14 x 39mm AutoTeks® |
| 1159.0553913 | 12-14 x 39mm Colorbond | Surfmist | Surfmist | 12-14 x 39mm AutoTeks® |
| 1159.0555010 | 12-14 x50mm Colorbond | Monument | Monument | 12-14 x 50mm AutoTeks® |
| 1159.0555013 | 12-14 x50mm Colorbond | Night Sky | Night Sky | 12-14 x 50mm AutoTeks® |
