1" L7 Inorganic Zinc 'Esso Spec' Stud Bolts

Skip to the beginning of the images gallery

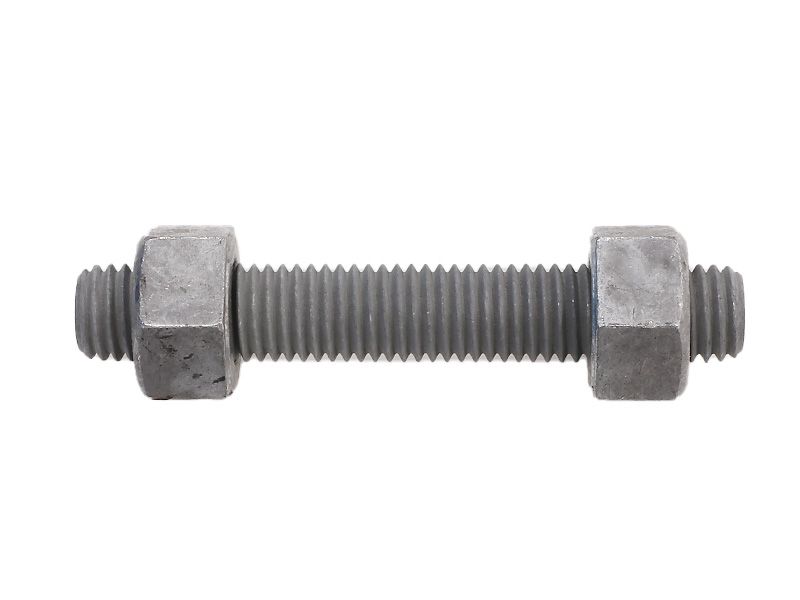

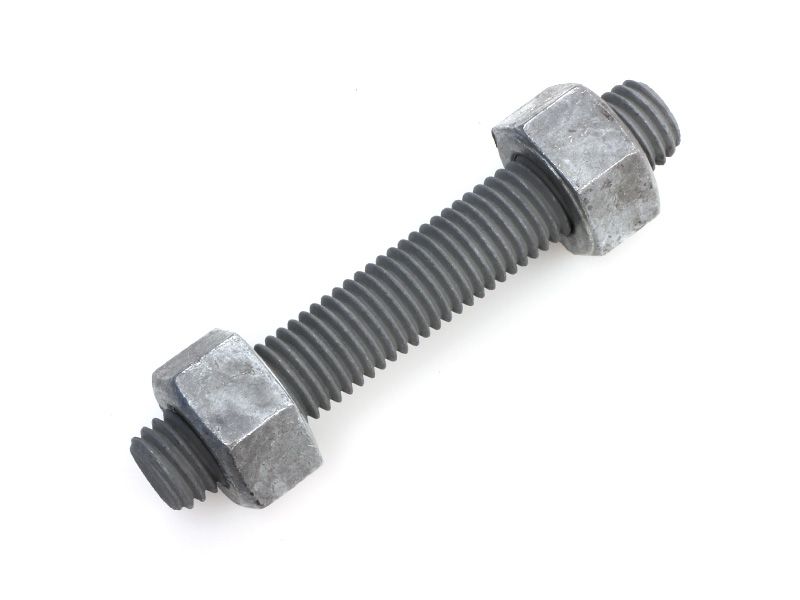

1" Inorganic Zinc Silicate L7 Stud Bolt Kit

Inorganic Zinc Silicate (IZS) provides excellent corrosion resistant properties providing fasteners with extended service life in harsh environments, and can be specified as a primer for a multiple finish high-build systems.

Particularly ideal for high corrosive coastal environments, IZS provides superior galvanic corrosion protection when compared with hot-dipped galvanising. Used on studbolts for off-shore platforms it is often referred to as "Esso Spec" within the fastener industry.

Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2 heavy hex nuts.
ASTM A193/A194 stud bolts and nuts come standard with EN 3.1 certification.

Submit items for a quote by simply selecting length, and quantity and then add to cart. View Cart to submit quote (available to all account customers with Trade Portal access).

SKU 6L7SBNUIZS25

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
1” x 75mm UNC L7 Studbolt A320, 7L A194 IZS From $0.00
1” x 80mm UNC L7 Studbolt A320, 7L A194 IZS From $0.00
1” x 90mm UNC L7 Studbolt A320, 7L A194 IZS From $23.50
1” x 95mm UNC L7 Studbolt A320, 7L A194 IZS From $24.15
1” x 100mm UNC L7 Studbolt A320, 7L A194 IZS From $24.75
1” x 110mm UNC L7 Studbolt A320, 7L A194 IZS From $25.85
1” x 115mm UNC L7 Studbolt A320, 7L A194 IZS From $26.35
1” x 120mm UNC L7 Studbolt A320, 7L A194 IZS From $26.95
1” x 125mm UNC L7 Studbolt A320, 7L A194 IZS From $27.50
1” x 130mm UNC L7 Studbolt A320, 7L A194 IZS From $28.05
1” x 140mm UNC L7 Studbolt A320, 7L A194 IZS From $29.15
1” x 145mm UNC L7 Studbolt A320, 7L A194 IZS From $29.65
1” x 150mm UNC L7 Studbolt A320, 7L A194 IZS From $30.30
1” x 160mm UNC L7 Studbolt A320, 7L A194 IZS From $31.40
1” x 165mm UNC L7 Studbolt A320, 7L A194 IZS From $31.85
1” x 170mm UNC L7 Studbolt A320, 7L A194 IZS From $32.50
1” x 180mm UNC L7 Studbolt A320, 7L A194 IZS From $33.60
1” x 185mm UNC L7 Studbolt A320, 7L A194 IZS From $34.15
1” x 190mm UNC L7 Studbolt A320, 7L A194 IZS From $34.70
1” x 195mm UNC L7 Studbolt A320, 7L A194 IZS From $35.25
1” x 200mm UNC L7 Studbolt A320, 7L A194 IZS From $35.85
1” x 210mm UNC L7 Studbolt A320, 7L A194 IZS From $36.95
1” x 215mm UNC L7 Studbolt A320, 7L A194 IZS From $37.45
1” x 220mm UNC L7 Studbolt A320, 7L A194 IZS From $38.05
1” x 230mm UNC L7 Studbolt A320, 7L A194 IZS From $39.15
1” x 235mm UNC L7 Studbolt A320, 7L A194 IZS From $39.70
1” x 240mm UNC L7 Studbolt A320, 7L A194 IZS From $40.20
1” x 250mm UNC L7 Studbolt A320, 7L A194 IZS From $41.35
1” x 255mm UNC L7 Studbolt A320, 7L A194 IZS From $41.90
1” x 260mm UNC L7 Studbolt A320, 7L A194 IZS From $42.45
1” x 265mm UNC L7 Studbolt A320, 7L A194 IZS From $43.00
1” x 275mm UNC L7 Studbolt A320, 7L A194 IZS From $44.15
1” x 280mm UNC L7 Studbolt A320, 7L A194 IZS From $44.70
1” x 285mm UNC L7 Studbolt A320, 7L A194 IZS From $45.25
1” x 290mm UNC L7 Studbolt A320, 7L A194 IZS From $45.80
1” x 300mm UNC L7 Studbolt A320, 7L A194 IZS From $46.95
1” x 305mm UNC L7 Studbolt A320, 7L A194 IZS From $47.45
1” x 310mm UNC L7 Studbolt A320, 7L A194 IZS From $48.05
1” x 320mm UNC L7 Studbolt A320, 7L A194 IZS From $49.15
1” x 325mm UNC L7 Studbolt A320, 7L A194 IZS From $49.70
1” x 330mm UNC L7 Studbolt A320, 7L A194 IZS From $50.25
1” x 335mm UNC L7 Studbolt A320, 7L A194 IZS From $50.75
1” x 345mm UNC L7 Studbolt A320, 7L A194 IZS From $51.90
1” x 350mm UNC L7 Studbolt A320, 7L A194 IZS From $52.50
1” x 355mm UNC L7 Studbolt A320, 7L A194 IZS From $53.05
1” x 360mm UNC L7 Studbolt A320, 7L A194 IZS From $53.60
1” x 370mm UNC L7 Studbolt A320, 7L A194 IZS From $54.70
1” x 375mm UNC L7 Studbolt A320, 7L A194 IZS From $55.30
1” x 380mm UNC L7 Studbolt A320, 7L A194 IZS From $55.80
1” x 385mm UNC L7 Studbolt A320, 7L A194 IZS From $56.40
1” x 395mm UNC L7 Studbolt A320, 7L A194 IZS From $57.50
1” x 400mm UNC L7 Studbolt A320, 7L A194 IZS From $58.05
1” x 405mm UNC L7 Studbolt A320, 7L A194 IZS From $58.60
1” x 415mm UNC L7 Studbolt A320, 7L A194 IZS From $59.70
1” x 420mm UNC L7 Studbolt A320, 7L A194 IZS From $60.25
1” x 425mm UNC L7 Studbolt A320, 7L A194 IZS From $60.85
1” x 430mm UNC L7 Studbolt A320, 7L A194 IZS From $61.35
1” x 440mm UNC L7 Studbolt A320, 7L A194 IZS From $62.40
1” x 445mm UNC L7 Studbolt A320, 7L A194 IZS From $63.05
1” x 450mm UNC L7 Studbolt A320, 7L A194 IZS From $63.60
1” x 455mm UNC L7 Studbolt A320, 7L A194 IZS From $64.15
1” x 465mm UNC L7 Studbolt A320, 7L A194 IZS From $65.25
1” x 470mm UNC L7 Studbolt A320, 7L A194 IZS From $65.80
1” x 475mm UNC L7 Studbolt A320, 7L A194 IZS From $66.40
1” x 485mm UNC L7 Studbolt A320, 7L A194 IZS From $67.50
1” x 490mm UNC L7 Studbolt A320, 7L A194 IZS From $68.00
1” x 495mm UNC L7 Studbolt A320, 7L A194 IZS From $68.60
1” x 500mm UNC L7 Studbolt A320, 7L A194 IZS From $69.15
1” x 510mm UNC L7 Studbolt A320, 7L A194 IZS From $0.00

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack

				Pack:

More Information

More Information
Delivery	3 - 4 WEEKS. Lead times may vary depending on quantity.
Diameter / Gauge	1"
Thread Type	UNC
Bolt / Stud Property	ASTM A320 L7
Nut Properties	ASTM A194 Gr 7L
Material / Finish	Inorganic Zinc Silicate (IZS)
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]
1302.0250075	1” x 75mm UNC	IZS	860 MPa	725 MPa
1302.0250080	1” x 80mm UNC	IZS	860 MPa	725 MPa
1302.0250090	1” x 90mm UNC	IZS	860 MPa	725 MPa
1302.0250095	1” x 95mm UNC	IZS	860 MPa	725 MPa
1302.0250100	1” x 100mm UNC	IZS	860 MPa	725 MPa
1302.0250110	1” x 110mm UNC	IZS	860 MPa	725 MPa
1302.0250115	1” x 115mm UNC	IZS	860 MPa	725 MPa
1302.0250120	1” x 120mm UNC	IZS	860 MPa	725 MPa
1302.0250125	1” x 125mm UNC	IZS	860 MPa	725 MPa
1302.0250130	1” x 130mm UNC	IZS	860 MPa	725 MPa
1302.0250140	1” x 140mm UNC	IZS	860 MPa	725 MPa
1302.0250145	1” x 145mm UNC	IZS	860 MPa	725 MPa
1302.0250150	1” x 150mm UNC	IZS	860 MPa	725 MPa
1302.0250160	1” x 160mm UNC	IZS	860 MPa	725 MPa
1302.0250165	1” x 165mm UNC	IZS	860 MPa	725 MPa
1302.0250170	1” x 170mm UNC	IZS	860 MPa	725 MPa
1302.0250180	1” x 180mm UNC	IZS	860 MPa	725 MPa
1302.0250185	1” x 185mm UNC	IZS	860 MPa	725 MPa
1302.0250190	1” x 190mm UNC	IZS	860 MPa	725 MPa
1302.0250195	1” x 195mm UNC	IZS	860 MPa	725 MPa
1302.0250200	1” x 200mm UNC	IZS	860 MPa	725 MPa
1302.0250210	1” x 210mm UNC	IZS	860 MPa	725 MPa
1302.0250215	1” x 215mm UNC	IZS	860 MPa	725 MPa
1302.0250220	1” x 220mm UNC	IZS	860 MPa	725 MPa
1302.0250230	1” x 230mm UNC	IZS	860 MPa	725 MPa
1302.0250235	1” x 235mm UNC	IZS	860 MPa	725 MPa
1302.0250240	1” x 240mm UNC	IZS	860 MPa	725 MPa
1302.0250250	1” x 250mm UNC	IZS	860 MPa	725 MPa
1302.0250255	1” x 255mm UNC	IZS	860 MPa	725 MPa
1302.0250260	1” x 260mm UNC	IZS	860 MPa	725 MPa
1302.0250265	1” x 265mm UNC	IZS	860 MPa	725 MPa
1302.0250275	1” x 275mm UNC	IZS	860 MPa	725 MPa
1302.0250280	1” x 280mm UNC	IZS	860 MPa	725 MPa
1302.0250285	1” x 285mm UNC	IZS	860 MPa	725 MPa
1302.0250290	1” x 290mm UNC	IZS	860 MPa	725 MPa
1302.0250300	1” x 300mm UNC	IZS	860 MPa	725 MPa
1302.0250305	1” x 305mm UNC	IZS	860 MPa	725 MPa
1302.0250310	1” x 310mm UNC	IZS	860 MPa	725 MPa
1302.0250320	1” x 320mm UNC	IZS	860 MPa	725 MPa
1302.0250325	1” x 325mm UNC	IZS	860 MPa	725 MPa
1302.0250330	1” x 330mm UNC	IZS	860 MPa	725 MPa
1302.0250335	1” x 335mm UNC	IZS	860 MPa	725 MPa
1302.0250345	1” x 345mm UNC	IZS	860 MPa	725 MPa
1302.0250350	1” x 350mm UNC	IZS	860 MPa	725 MPa
1302.0250355	1” x 355mm UNC	IZS	860 MPa	725 MPa
1302.0250360	1” x 360mm UNC	IZS	860 MPa	725 MPa
1302.0250370	1” x 370mm UNC	IZS	860 MPa	725 MPa
1302.0250375	1” x 375mm UNC	IZS	860 MPa	725 MPa
1302.0250380	1” x 380mm UNC	IZS	860 MPa	725 MPa
1302.0250385	1” x 385mm UNC	IZS	860 MPa	725 MPa
1302.0250395	1” x 395mm UNC	IZS	860 MPa	725 MPa
1302.0250400	1” x 400mm UNC	IZS	860 MPa	725 MPa
1302.0250405	1” x 405mm UNC	IZS	860 MPa	725 MPa
1302.0250415	1” x 415mm UNC	IZS	860 MPa	725 MPa
1302.0250420	1” x 420mm UNC	IZS	860 MPa	725 MPa
1302.0250425	1” x 425mm UNC	IZS	860 MPa	725 MPa
1302.0250430	1” x 430mm UNC	IZS	860 MPa	725 MPa
1302.0250440	1” x 440mm UNC	IZS	860 MPa	725 MPa
1302.0250445	1” x 445mm UNC	IZS	860 MPa	725 MPa
1302.0250450	1” x 450mm UNC	IZS	860 MPa	725 MPa
1302.0250455	1” x 455mm UNC	IZS	860 MPa	725 MPa
1302.0250465	1” x 465mm UNC	IZS	860 MPa	725 MPa
1302.0250470	1” x 470mm UNC	IZS	860 MPa	725 MPa
1302.0250475	1” x 475mm UNC	IZS	860 MPa	725 MPa
1302.0250485	1” x 485mm UNC	IZS	860 MPa	725 MPa
1302.0250490	1” x 490mm UNC	IZS	860 MPa	725 MPa
1302.0250495	1” x 495mm UNC	IZS	860 MPa	725 MPa
1302.0250500	1” x 500mm UNC	IZS	860 MPa	725 MPa
1302.0250510	1” x 510mm UNC	IZS	860 MPa	725 MPa

Documents

1" UNC IZS L7/Gr7 Stud Bolt Kit A320/A194

1" Inorganic Zinc Silicate L7 Stud Bolt Kit
