1-7/8" UN8 Xylan B7/2H Stud Bolt Kit A193/A194

  • Home
  • 1-7/8" Xylan B7, 2H Stud Bolt Kit

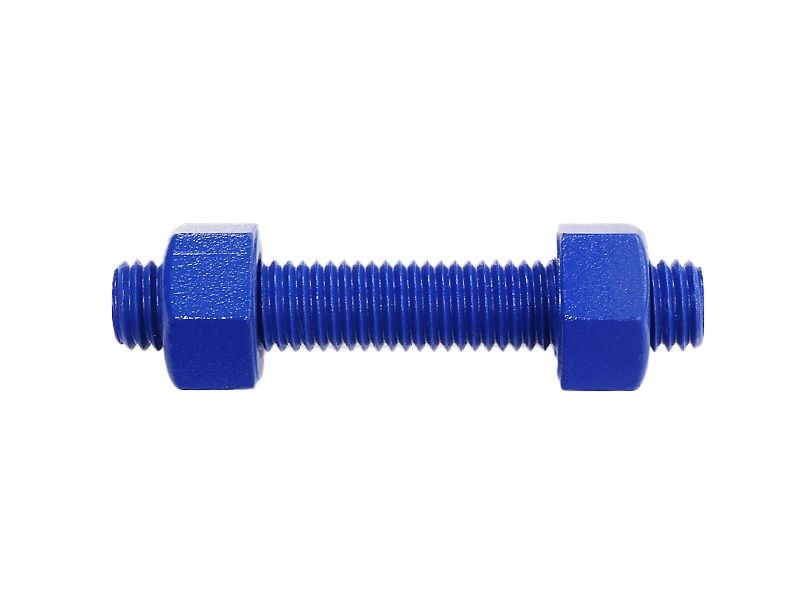

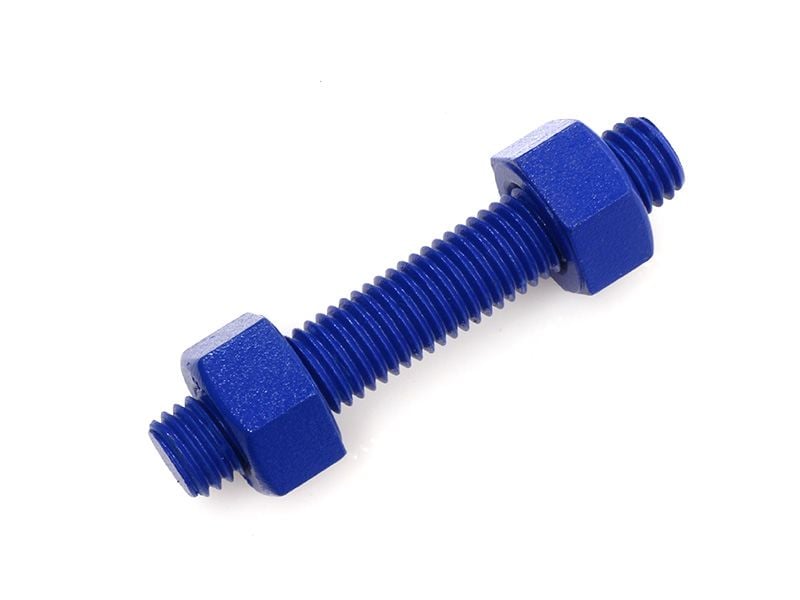

1-7/8" Xylan B7, 2H Stud Bolt Kit

Xylan blue is a fluoropolymer (PTFE) coating designed to provide corrosion protection, lubrication, wear resistance and non-stick properties in a variety industries and applications.

  • Stud lengths are measured first leading thread to last leading thread.
  • All kits are supplied with 2 heavy hex nuts.
  • ASTM A193/A194 stud bolts and nuts come standard with EN 3.1 certification.



Submit items for a quote by simply selecting length, and quantity and then add to cart. View Cart to submit quote (available to all account customers with Trade Portal access).

SKU 6B7SBN8XB48
Availability:
Pack:
Sub-total: / ex. gst.
Build A Quote?
Store Item
SKU:
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery 3 - 4 WEEKS. Lead times may vary depending on quantity.
Diameter / Gauge 1-7/8"
Thread Type UN8
Bolt / Stud Property ASTM A193 B7
Nut Properties ASTM A194 Gr 2H
Material / Finish Xylan Blue (PTFE)
Use for Petrochemical
Technical Information
SKU Dia. x Length Finish Tensile, min [ MPa ] Yield, min [ MPa ] NULL
1283.0480355 1-7/8” x 355mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480360 1-7/8” x 360mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480370 1-7/8” x 370mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480375 1-7/8” x 375mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480380 1-7/8” x 380mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480385 1-7/8” x 385mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480395 1-7/8” x 395mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480400 1-7/8” x 400mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480405 1-7/8” x 405mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480415 1-7/8” x 415mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480420 1-7/8” x 420mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480425 1-7/8” x 425mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480430 1-7/8” x 430mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480440 1-7/8” x 440mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480445 1-7/8” x 445mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480450 1-7/8” x 450mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480455 1-7/8” x 455mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480465 1-7/8” x 465mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480470 1-7/8” x 470mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480475 1-7/8” x 475mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480485 1-7/8” x 485mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480490 1-7/8” x 490mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480495 1-7/8” x 495mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480500 1-7/8” x 500mm UN8 Xylan Blue 860 MPa 720 MPa
1283.0480510 1-7/8” x 510mm UN8 Xylan Blue 860 MPa 720 MPa
