1-7/8" UN8 B7/2H Stud Bolt Kit A193/A194

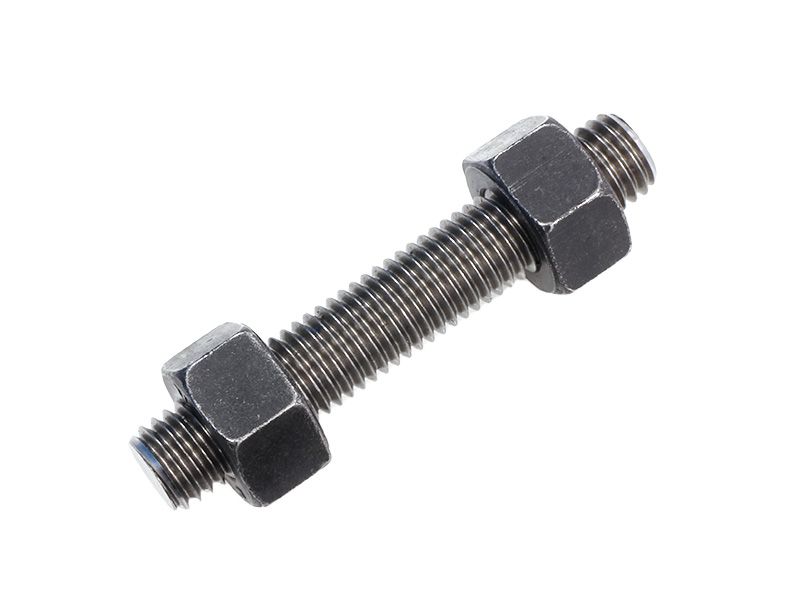

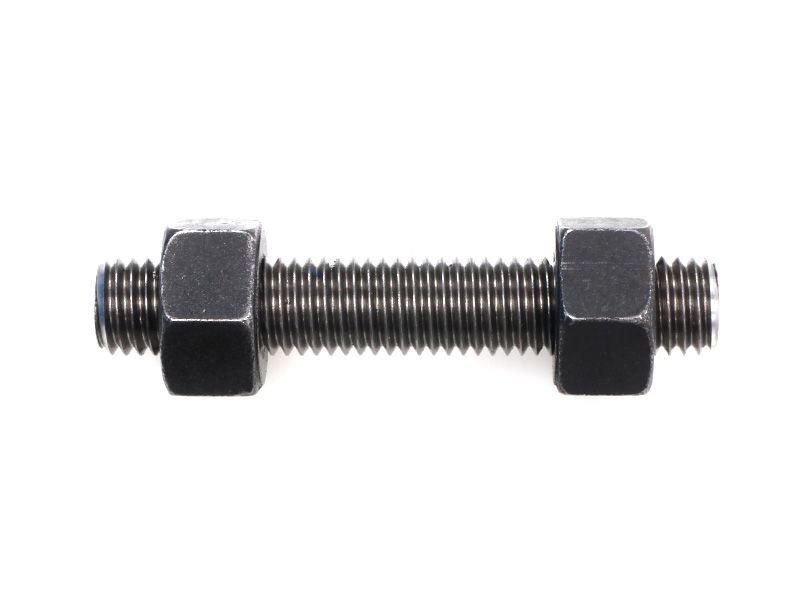

1-7/8" Plain B7, 2H Stud Bolt Kit
B7 stud bolts are commonly sold as plain (unplated) bare metal finish however we offer surface coatings which have benefits for corrosion protection, lubrication and or wear resistant properties.
- Stud lengths are measured first leading thread to last leading thread.
- All kits are supplied with 2x 2H grade heavy hex nuts.
- ASTM A193/A194 stud bolts and nuts come standard with EN 3.1 certification.
Submit items for a quote by simply selecting length, and quantity and then add to cart. View Cart to submit quote (available to all account customers with Trade Portal access).
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | 7 - 10 DAYS. Lead times may vary depending on quantity. |
|---|---|
| Diameter / Gauge | 1-7/8" |
| Thread Type | UN8 |
| Bolt / Stud Property | ASTM A193 B7 |
| Nut Properties | ASTM A194 Gr 2H |
| Material / Finish | Plain (Unplated) |
| Use for | Petrochemical |
Technical Information
| SKU | Dia. x Length | Finish | Tensile, min [ MPa ] | Yield, min [ MPa ] | Weight [ kg ] |
|---|---|---|---|---|---|
| 1280.0480355 | 1-7/8” x 355mm UN8 | Plain | 860 MPa | 720 MPa | 6.83 |
| 1280.0480360 | 1-7/8” x 360mm UN8 | Plain | 860 MPa | 720 MPa | 6.89 |
| 1280.0480370 | 1-7/8” x 370mm UN8 | Plain | 860 MPa | 720 MPa | 7.02 |
| 1280.0480375 | 1-7/8” x 375mm UN8 | Plain | 860 MPa | 720 MPa | 7.08 |
| 1280.0480380 | 1-7/8” x 380mm UN8 | Plain | 860 MPa | 720 MPa | 7.15 |
| 1280.0480385 | 1-7/8” x 385mm UN8 | Plain | 860 MPa | 720 MPa | 7.21 |
| 1280.0480395 | 1-7/8” x 395mm UN8 | Plain | 860 MPa | 720 MPa | 7.34 |
| 1280.0480400 | 1-7/8” x 400mm UN8 | Plain | 860 MPa | 720 MPa | 7.4 |
| 1280.0480405 | 1-7/8” x 405mm UN8 | Plain | 860 MPa | 720 MPa | 7.47 |
| 1280.0480415 | 1-7/8” x 415mm UN8 | Plain | 860 MPa | 720 MPa | 7.59 |
| 1280.0480420 | 1-7/8” x 420mm UN8 | Plain | 860 MPa | 720 MPa | 7.66 |
| 1280.0480425 | 1-7/8” x 425mm UN8 | Plain | 860 MPa | 720 MPa | 7.72 |
| 1280.0480430 | 1-7/8” x 430mm UN8 | Plain | 860 MPa | 720 MPa | 7.78 |
| 1280.0480440 | 1-7/8” x 440mm UN8 | Plain | 860 MPa | 720 MPa | 7.91 |
| 1280.0480445 | 1-7/8” x 445mm UN8 | Plain | 860 MPa | 720 MPa | 7.97 |
| 1280.0480450 | 1-7/8” x 450mm UN8 | Plain | 860 MPa | 720 MPa | 8.04 |
| 1280.0480455 | 1-7/8” x 455mm UN8 | Plain | 860 MPa | 720 MPa | 8.1 |
| 1280.0480465 | 1-7/8” x 465mm UN8 | Plain | 860 MPa | 720 MPa | 8.23 |
| 1280.0480470 | 1-7/8” x 470mm UN8 | Plain | 860 MPa | 720 MPa | 8.29 |
| 1280.0480475 | 1-7/8” x 475mm UN8 | Plain | 860 MPa | 720 MPa | 8.35 |
| 1280.0480485 | 1-7/8” x 485mm UN8 | Plain | 860 MPa | 720 MPa | 8.48 |
| 1280.0480490 | 1-7/8” x 490mm UN8 | Plain | 860 MPa | 720 MPa | 8.55 |
| 1280.0480495 | 1-7/8” x 495mm UN8 | Plain | 860 MPa | 720 MPa | 8.61 |
| 1280.0480500 | 1-7/8” x 500mm UN8 | Plain | 860 MPa | 720 MPa | 8.67 |
| 1280.0480510 | 1-7/8” x 510mm UN8 | Plain | 860 MPa | 720 MPa | 8.80 |
