1-3/4" UN8 Galvanised L7/Gr7 Stud Bolt Kit A320/A194

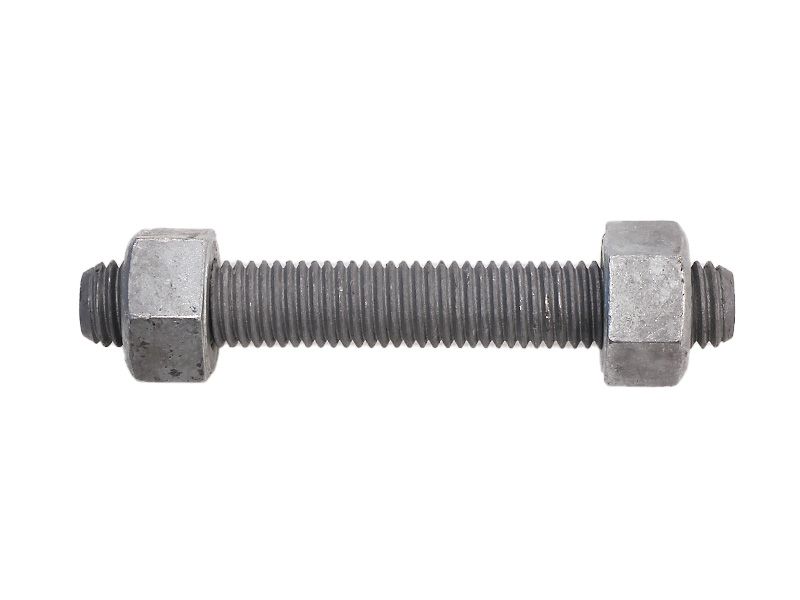

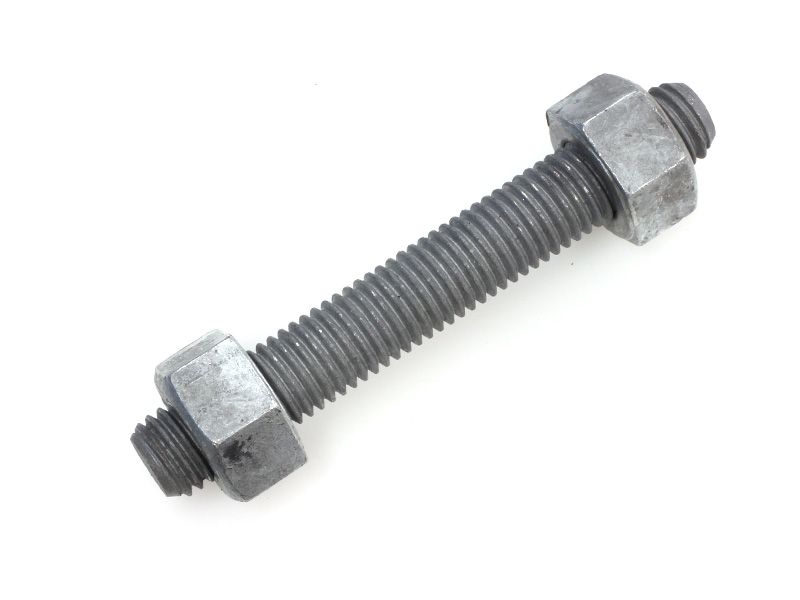

1-3/4" HDG L7 Stud Bolt Kit
- Hot-dipped galvanised coating as per F2329
- Stud lengths are measured first leading thread to last leading thread.
- All kits are supplied with 2 heavy hex nuts.
- ASTM A193 /A194 stud bolts and nuts come standard with EN 3.1 certification.
Submit items for a quote by simply selecting length, and quantity and then add to cart. View Cart to submit quote (available to all account customers with Trade Portal access).
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | 2 - 3 WEEKS. Lead times may vary depending on quantity. |
|---|---|
| Diameter / Gauge | 1-3/4" |
| Thread Type | UN8 |
| Bolt / Stud Property | ASTM A320 L7 |
| Nut Properties | ASTM A194 Gr 7L |
| Material / Finish | Hot-dipped Galvanised (HDG) |
| Use for | Petrochemical |
Technical Information
| SKU | Dia. x Length | Finish | Tensile, min [ MPa ] | Yield, min [ MPa ] | NULL |
|---|---|---|---|---|---|
| 1301.0450150 | 1-3/4” x 150mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450160 | 1-3/4” x 160mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450165 | 1-3/4” x 165mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450170 | 1-3/4” x 170mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450180 | 1-3/4” x 180mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450185 | 1-3/4” x 185mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450190 | 1-3/4” x 190mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450195 | 1-3/4” x 195mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450200 | 1-3/4” x 200mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450210 | 1-3/4” x 210mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450215 | 1-3/4” x 215mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450220 | 1-3/4” x 220mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450230 | 1-3/4” x 230mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450235 | 1-3/4” x 235mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450240 | 1-3/4” x 240mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450250 | 1-3/4” x 250mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450255 | 1-3/4” x 255mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450260 | 1-3/4” x 260mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450265 | 1-3/4” x 265mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450275 | 1-3/4” x 275mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450280 | 1-3/4” x 280mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450285 | 1-3/4” x 285mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450290 | 1-3/4” x 290mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450300 | 1-3/4” x 300mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450305 | 1-3/4” x 305mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450310 | 1-3/4” x 310mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450320 | 1-3/4” x 320mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450325 | 1-3/4” x 325mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450330 | 1-3/4” x 330mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450335 | 1-3/4” x 335mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450345 | 1-3/4” x 345mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450350 | 1-3/4” x 350mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450355 | 1-3/4” x 355mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450360 | 1-3/4” x 360mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450370 | 1-3/4” x 370mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450375 | 1-3/4” x 375mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450380 | 1-3/4” x 380mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450385 | 1-3/4” x 385mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450395 | 1-3/4” x 395mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450400 | 1-3/4” x 400mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450405 | 1-3/4” x 405mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450415 | 1-3/4” x 415mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450420 | 1-3/4” x 420mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450425 | 1-3/4” x 425mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450430 | 1-3/4” x 430mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450440 | 1-3/4” x 440mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450445 | 1-3/4” x 445mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450450 | 1-3/4” x 450mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450455 | 1-3/4” x 455mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450465 | 1-3/4” x 465mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450470 | 1-3/4” x 470mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450475 | 1-3/4” x 475mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450485 | 1-3/4” x 485mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450490 | 1-3/4” x 490mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450495 | 1-3/4” x 495mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450500 | 1-3/4” x 500mm UN8 | Galvanised | 860 MPa | 725 MPa | |
| 1301.0450510 | 1-3/4” x 510mm UN8 | Galvanised | 860 MPa | 725 MPa |
