1/2" UNC Xylan B7/2H Stud Bolt Kit A193/A194

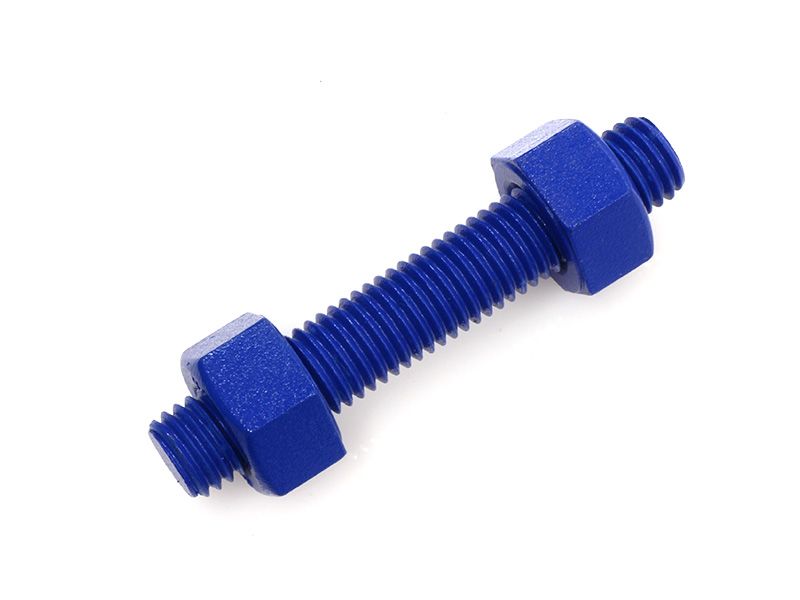

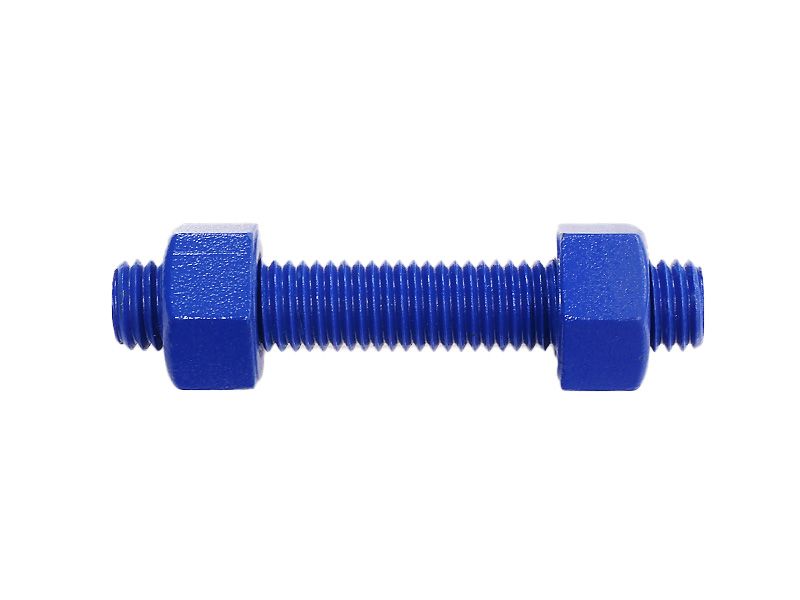

1/2" Xylan B7, 2H Stud Bolt Kit
Xylan blue is a fluoropolymer (PTFE) coating designed to provide corrosion protection, lubrication, wear resistance and non-stick properties in a variety industries and applications.
- Stud lengths are measured first leading thread to last leading thread.
- All kits are supplied with 2 heavy hex nuts.
- ASTM A193/A194 stud bolts and nuts come standard with EN 3.1 certification.
Submit items for a quote by simply selecting length, and quantity and then add to cart. View Cart to submit quote (available to all account customers with Trade Portal access).
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Full Thread Studs
Our stud bolt kits follow ASTM standards and dimensions used by the pertrochemical industry. Our studbolt lengths measure first thread to first thread, this length is calculated between the chamfered ends. Ensuring the correct amount of lead threads are still visible once installed.
Surface Coating Available
B7 stud bolts are commonly sold in as plain (unplated) bare metal finish however the common below finishes are available. Please note that coated studs may not be able to withstand high temperatures that uncoated studs bolts can be subject to.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | 3 - 4 WEEKS. Lead times may vary depending on quantity. |
|---|---|
| Diameter / Gauge | 1/2" |
| Thread Type | UNC |
| Bolt / Stud Property | ASTM A193 B7 |
| Nut Properties | ASTM A194 Gr 2H |
| Material / Finish | Xylan Blue (PTFE) |
| Use for | Petrochemical |
Technical Information
| SKU | Dia. x Length | Finish | Tensile, min [ MPa ] | Yield, min [ MPa ] | NULL |
|---|---|---|---|---|---|
| 1283.0120050 | 1/2” x 50mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120060 | 1/2” x 60mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120065 | 1/2” x 65mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120070 | 1/2” x 70mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120075 | 1/2” x 75mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120080 | 1/2” x 80mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120090 | 1/2” x 90mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120095 | 1/2” x 95mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120100 | 1/2” x 100mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120110 | 1/2” x 110mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120115 | 1/2” x 115mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120120 | 1/2” x 120mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120125 | 1/2” x 125mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120130 | 1/2” x 130mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120140 | 1/2” x 140mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120145 | 1/2” x 145mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120150 | 1/2” x 150mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120160 | 1/2” x 160mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120165 | 1/2” x 165mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120170 | 1/2” x 170mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120180 | 1/2” x 180mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120185 | 1/2” x 185mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120190 | 1/2” x 190mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120195 | 1/2” x 195mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120200 | 1/2” x 200mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120210 | 1/2” x 210mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120215 | 1/2” x 215mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120220 | 1/2” x 220mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120230 | 1/2” x 230mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120235 | 1/2” x 235mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120240 | 1/2” x 240mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120250 | 1/2” x 250mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120255 | 1/2” x 255mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120260 | 1/2” x 260mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120265 | 1/2” x 265mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120275 | 1/2” x 275mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120280 | 1/2” x 280mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120285 | 1/2” x 285mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120290 | 1/2” x 290mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120300 | 1/2” x 300mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120305 | 1/2” x 305mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120310 | 1/2” x 310mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120320 | 1/2” x 320mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120325 | 1/2” x 325mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120330 | 1/2” x 330mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120335 | 1/2” x 335mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120345 | 1/2” x 345mm UNC | Xylan Blue | 860 MPa | 720 MPa | |
| 1283.0120350 | 1/2” x 350mm UNC | Xylan Blue | 860 MPa | 720 MPa |
