1-1/2" L7 Inorganic Zinc 'Esso Spec' Stud Bolts

Skip to the beginning of the images gallery

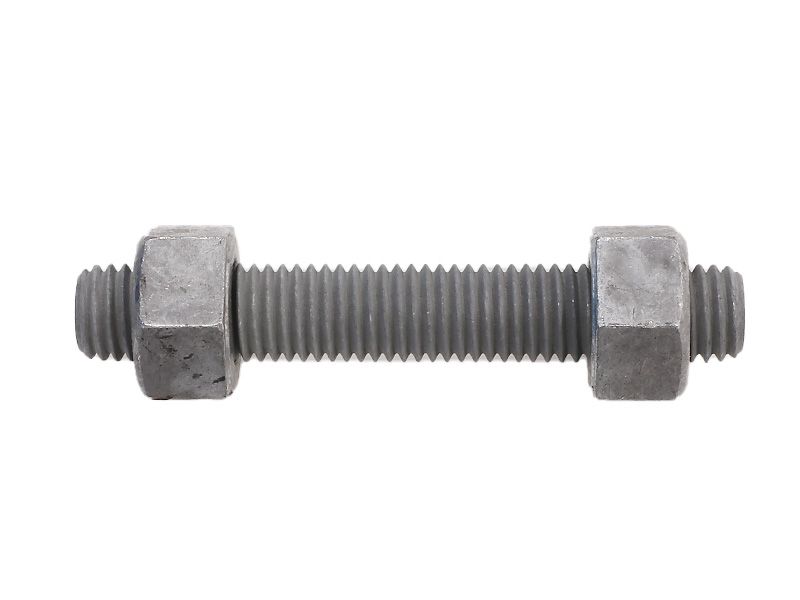

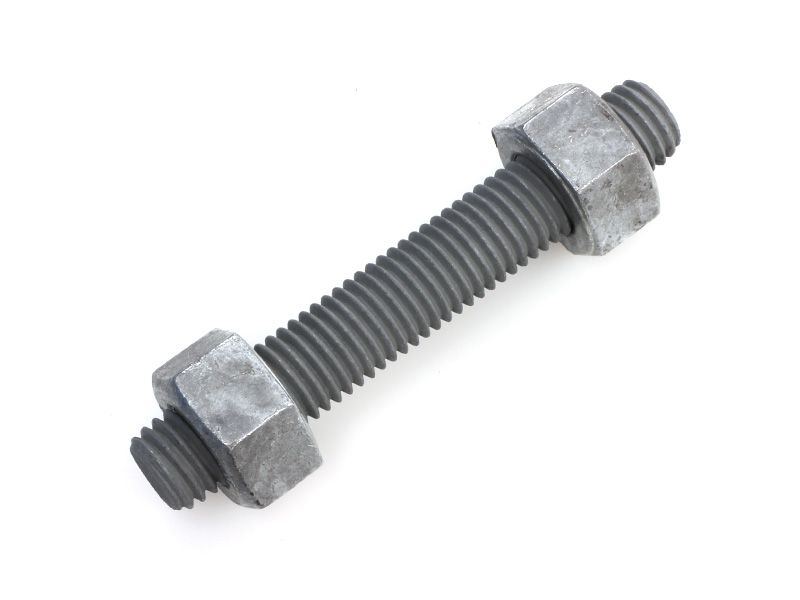

1-1/2" Inorganic Zinc Silicate L7 Stud Bolt Kit

Inorganic Zinc Silicate (IZS) provides excellent corrosion resistant properties providing fasteners with extended service life in harsh environments, and can be specified as a primer for a multiple finish high-build systems.

Particularly ideal for high corrosive coastal environments, IZS provides superior galvanic corrosion protection when compared with hot-dipped galvanising. Used on studbolts for off-shore platforms it is often referred to as "Esso Spec" within the fastener industry.

Stud lengths are measured first leading thread to last leading thread.
All kits are supplied with 2 heavy hex nuts.
ASTM A193/A194 stud bolts and nuts come standard with EN 3.1 certification.

Submit items for a quote by simply selecting length, and quantity and then add to cart. View Cart to submit quote (available to all account customers with Trade Portal access).

SKU 6L7SBN8IZS38

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
1-1/2” x 100mm UN8 L7 Studbolt A320, 7L A194 IZS From $0.00
1-1/2” x 110mm UN8 L7 Studbolt A320, 7L A194 IZS From $0.00
1-1/2” x 115mm UN8 L7 Studbolt A320, 7L A194 IZS From $0.00
1-1/2” x 120mm UN8 L7 Studbolt A320, 7L A194 IZS From $0.00
1-1/2” x 125mm UN8 L7 Studbolt A320, 7L A194 IZS From $0.00
1-1/2” x 130mm UN8 L7 Studbolt A320, 7L A194 IZS From $0.00
1-1/2” x 140mm UN8 L7 Studbolt A320, 7L A194 IZS From $65.65
1-1/2” x 145mm UN8 L7 Studbolt A320, 7L A194 IZS From $66.80
1-1/2” x 150mm UN8 L7 Studbolt A320, 7L A194 IZS From $67.90
1-1/2” x 160mm UN8 L7 Studbolt A320, 7L A194 IZS From $70.15
1-1/2” x 165mm UN8 L7 Studbolt A320, 7L A194 IZS From $71.35
1-1/2” x 170mm UN8 L7 Studbolt A320, 7L A194 IZS From $72.45
1-1/2” x 180mm UN8 L7 Studbolt A320, 7L A194 IZS From $74.75
1-1/2” x 185mm UN8 L7 Studbolt A320, 7L A194 IZS From $75.85
1-1/2” x 190mm UN8 L7 Studbolt A320, 7L A194 IZS From $77.00
1-1/2” x 195mm UN8 L7 Studbolt A320, 7L A194 IZS From $78.10
1-1/2” x 200mm UN8 L7 Studbolt A320, 7L A194 IZS From $79.30
1-1/2” x 210mm UN8 L7 Studbolt A320, 7L A194 IZS From $81.55
1-1/2” x 215mm UN8 L7 Studbolt A320, 7L A194 IZS From $82.70
1-1/2” x 220mm UN8 L7 Studbolt A320, 7L A194 IZS From $83.80
1-1/2” x 230mm UN8 L7 Studbolt A320, 7L A194 IZS From $86.05
1-1/2” x 235mm UN8 L7 Studbolt A320, 7L A194 IZS From $87.25
1-1/2” x 240mm UN8 L7 Studbolt A320, 7L A194 IZS From $88.35
1-1/2” x 250mm UN8 L7 Studbolt A320, 7L A194 IZS From $90.65
1-1/2” x 255mm UN8 L7 Studbolt A320, 7L A194 IZS From $91.75
1-1/2” x 260mm UN8 L7 Studbolt A320, 7L A194 IZS From $92.90
1-1/2” x 265mm UN8 L7 Studbolt A320, 7L A194 IZS From $94.10
1-1/2” x 275mm UN8 L7 Studbolt A320, 7L A194 IZS From $96.35
1-1/2” x 280mm UN8 L7 Studbolt A320, 7L A194 IZS From $97.50
1-1/2” x 285mm UN8 L7 Studbolt A320, 7L A194 IZS From $98.65
1-1/2” x 290mm UN8 L7 Studbolt A320, 7L A194 IZS From $99.75
1-1/2” x 300mm UN8 L7 Studbolt A320, 7L A194 IZS From $102.05
1-1/2” x 305mm UN8 L7 Studbolt A320, 7L A194 IZS From $103.20
1-1/2” x 310mm UN8 L7 Studbolt A320, 7L A194 IZS From $104.30
1-1/2” x 320mm UN8 L7 Studbolt A320, 7L A194 IZS From $106.60
1-1/2” x 325mm UN8 L7 Studbolt A320, 7L A194 IZS From $107.70
1-1/2” x 330mm UN8 L7 Studbolt A320, 7L A194 IZS From $108.85
1-1/2” x 335mm UN8 L7 Studbolt A320, 7L A194 IZS From $110.00
1-1/2” x 345mm UN8 L7 Studbolt A320, 7L A194 IZS From $112.25
1-1/2” x 350mm UN8 L7 Studbolt A320, 7L A194 IZS From $113.35
1-1/2” x 355mm UN8 L7 Studbolt A320, 7L A194 IZS From $114.55
1-1/2” x 360mm UN8 L7 Studbolt A320, 7L A194 IZS From $115.65
1-1/2” x 370mm UN8 L7 Studbolt A320, 7L A194 IZS From $117.95
1-1/2” x 375mm UN8 L7 Studbolt A320, 7L A194 IZS From $119.10
1-1/2” x 380mm UN8 L7 Studbolt A320, 7L A194 IZS From $120.20
1-1/2” x 385mm UN8 L7 Studbolt A320, 7L A194 IZS From $121.30
1-1/2” x 395mm UN8 L7 Studbolt A320, 7L A194 IZS From $123.60
1-1/2” x 400mm UN8 L7 Studbolt A320, 7L A194 IZS From $124.75
1-1/2” x 405mm UN8 L7 Studbolt A320, 7L A194 IZS From $125.90
1-1/2” x 415mm UN8 L7 Studbolt A320, 7L A194 IZS From $128.15
1-1/2” x 420mm UN8 L7 Studbolt A320, 7L A194 IZS From $129.25
1-1/2” x 425mm UN8 L7 Studbolt A320, 7L A194 IZS From $130.45
1-1/2” x 430mm UN8 L7 Studbolt A320, 7L A194 IZS From $131.55
1-1/2” x 440mm UN8 L7 Studbolt A320, 7L A194 IZS From $133.85
1-1/2” x 445mm UN8 L7 Studbolt A320, 7L A194 IZS From $135.00
1-1/2” x 450mm UN8 L7 Studbolt A320, 7L A194 IZS From $136.10
1-1/2” x 455mm UN8 L7 Studbolt A320, 7L A194 IZS From $137.20
1-1/2” x 465mm UN8 L7 Studbolt A320, 7L A194 IZS From $139.50
1-1/2” x 470mm UN8 L7 Studbolt A320, 7L A194 IZS From $140.65
1-1/2” x 475mm UN8 L7 Studbolt A320, 7L A194 IZS From $141.80
1-1/2” x 485mm UN8 L7 Studbolt A320, 7L A194 IZS From $144.05
1-1/2” x 490mm UN8 L7 Studbolt A320, 7L A194 IZS From $145.15
1-1/2” x 495mm UN8 L7 Studbolt A320, 7L A194 IZS From $146.40
1-1/2” x 500mm UN8 L7 Studbolt A320, 7L A194 IZS From $147.50
1-1/2” x 510mm UN8 L7 Studbolt A320, 7L A194 IZS From $149.80

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Delivery	3 - 4 WEEKS. Lead times may vary depending on quantity.
Diameter / Gauge	1-1/2"
Thread Type	UN8
Bolt / Stud Property	ASTM A320 L7
Nut Properties	ASTM A194 Gr 7L
Material / Finish	Inorganic Zinc Silicate (IZS)
Use for	Petrochemical

Technical Information

SKU	Dia. x Length	Finish	Tensile, min [ MPa ]	Yield, min [ MPa ]
1302.0380100	1-1/2” x 100mm UN8	IZS	860 MPa	725 MPa
1302.0380110	1-1/2” x 110mm UN8	IZS	860 MPa	725 MPa
1302.0380115	1-1/2” x 115mm UN8	IZS	860 MPa	725 MPa
1302.0380120	1-1/2” x 120mm UN8	IZS	860 MPa	725 MPa
1302.0380125	1-1/2” x 125mm UN8	IZS	860 MPa	725 MPa
1302.0380130	1-1/2” x 130mm UN8	IZS	860 MPa	725 MPa
1302.0380140	1-1/2” x 140mm UN8	IZS	860 MPa	725 MPa
1302.0380145	1-1/2” x 145mm UN8	IZS	860 MPa	725 MPa
1302.0380150	1-1/2” x 150mm UN8	IZS	860 MPa	725 MPa
1302.0380160	1-1/2” x 160mm UN8	IZS	860 MPa	725 MPa
1302.0380165	1-1/2” x 165mm UN8	IZS	860 MPa	725 MPa
1302.0380170	1-1/2” x 170mm UN8	IZS	860 MPa	725 MPa
1302.0380180	1-1/2” x 180mm UN8	IZS	860 MPa	725 MPa
1302.0380185	1-1/2” x 185mm UN8	IZS	860 MPa	725 MPa
1302.0380190	1-1/2” x 190mm UN8	IZS	860 MPa	725 MPa
1302.0380195	1-1/2” x 195mm UN8	IZS	860 MPa	725 MPa
1302.0380200	1-1/2” x 200mm UN8	IZS	860 MPa	725 MPa
1302.0380210	1-1/2” x 210mm UN8	IZS	860 MPa	725 MPa
1302.0380215	1-1/2” x 215mm UN8	IZS	860 MPa	725 MPa
1302.0380220	1-1/2” x 220mm UN8	IZS	860 MPa	725 MPa
1302.0380230	1-1/2” x 230mm UN8	IZS	860 MPa	725 MPa
1302.0380235	1-1/2” x 235mm UN8	IZS	860 MPa	725 MPa
1302.0380240	1-1/2” x 240mm UN8	IZS	860 MPa	725 MPa
1302.0380250	1-1/2” x 250mm UN8	IZS	860 MPa	725 MPa
1302.0380255	1-1/2” x 255mm UN8	IZS	860 MPa	725 MPa
1302.0380260	1-1/2” x 260mm UN8	IZS	860 MPa	725 MPa
1302.0380265	1-1/2” x 265mm UN8	IZS	860 MPa	725 MPa
1302.0380275	1-1/2” x 275mm UN8	IZS	860 MPa	725 MPa
1302.0380280	1-1/2” x 280mm UN8	IZS	860 MPa	725 MPa
1302.0380285	1-1/2” x 285mm UN8	IZS	860 MPa	725 MPa
1302.0380290	1-1/2” x 290mm UN8	IZS	860 MPa	725 MPa
1302.0380300	1-1/2” x 300mm UN8	IZS	860 MPa	725 MPa
1302.0380305	1-1/2” x 305mm UN8	IZS	860 MPa	725 MPa
1302.0380310	1-1/2” x 310mm UN8	IZS	860 MPa	725 MPa
1302.0380320	1-1/2” x 320mm UN8	IZS	860 MPa	725 MPa
1302.0380325	1-1/2” x 325mm UN8	IZS	860 MPa	725 MPa
1302.0380330	1-1/2” x 330mm UN8	IZS	860 MPa	725 MPa
1302.0380335	1-1/2” x 335mm UN8	IZS	860 MPa	725 MPa
1302.0380345	1-1/2” x 345mm UN8	IZS	860 MPa	725 MPa
1302.0380350	1-1/2” x 350mm UN8	IZS	860 MPa	725 MPa
1302.0380355	1-1/2” x 355mm UN8	IZS	860 MPa	725 MPa
1302.0380360	1-1/2” x 360mm UN8	IZS	860 MPa	725 MPa
1302.0380370	1-1/2” x 370mm UN8	IZS	860 MPa	725 MPa
1302.0380375	1-1/2” x 375mm UN8	IZS	860 MPa	725 MPa
1302.0380380	1-1/2” x 380mm UN8	IZS	860 MPa	725 MPa
1302.0380385	1-1/2” x 385mm UN8	IZS	860 MPa	725 MPa
1302.0380395	1-1/2” x 395mm UN8	IZS	860 MPa	725 MPa
1302.0380400	1-1/2” x 400mm UN8	IZS	860 MPa	725 MPa
1302.0380405	1-1/2” x 405mm UN8	IZS	860 MPa	725 MPa
1302.0380415	1-1/2” x 415mm UN8	IZS	860 MPa	725 MPa
1302.0380420	1-1/2” x 420mm UN8	IZS	860 MPa	725 MPa
1302.0380425	1-1/2” x 425mm UN8	IZS	860 MPa	725 MPa
1302.0380430	1-1/2” x 430mm UN8	IZS	860 MPa	725 MPa
1302.0380440	1-1/2” x 440mm UN8	IZS	860 MPa	725 MPa
1302.0380445	1-1/2” x 445mm UN8	IZS	860 MPa	725 MPa
1302.0380450	1-1/2” x 450mm UN8	IZS	860 MPa	725 MPa
1302.0380455	1-1/2” x 455mm UN8	IZS	860 MPa	725 MPa
1302.0380465	1-1/2” x 465mm UN8	IZS	860 MPa	725 MPa
1302.0380470	1-1/2” x 470mm UN8	IZS	860 MPa	725 MPa
1302.0380475	1-1/2” x 475mm UN8	IZS	860 MPa	725 MPa
1302.0380485	1-1/2” x 485mm UN8	IZS	860 MPa	725 MPa
1302.0380490	1-1/2” x 490mm UN8	IZS	860 MPa	725 MPa
1302.0380495	1-1/2” x 495mm UN8	IZS	860 MPa	725 MPa
1302.0380500	1-1/2” x 500mm UN8	IZS	860 MPa	725 MPa
1302.0380510	1-1/2” x 510mm UN8	IZS	860 MPa	725 MPa

Documents

1-1/2" UN8 IZS L7/Gr7 Stud Bolt Kit A320/A194

1-1/2" Inorganic Zinc Silicate L7 Stud Bolt Kit
