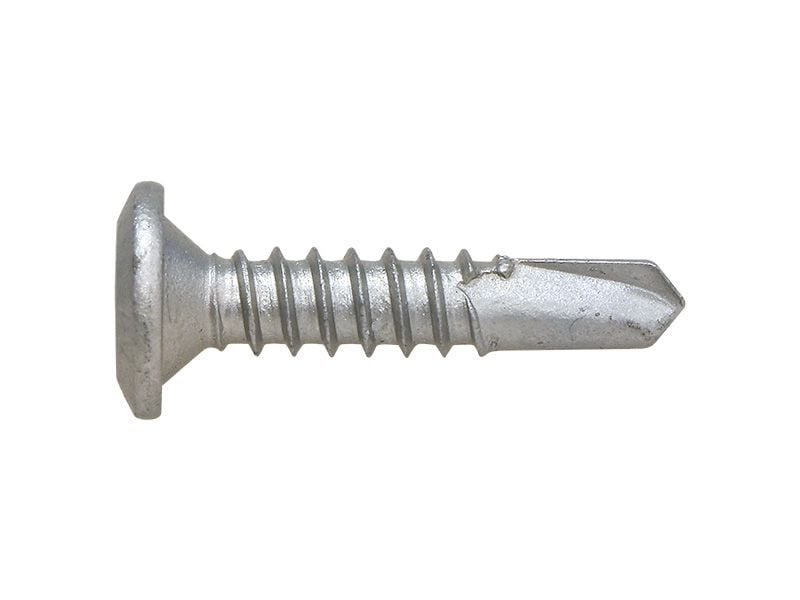

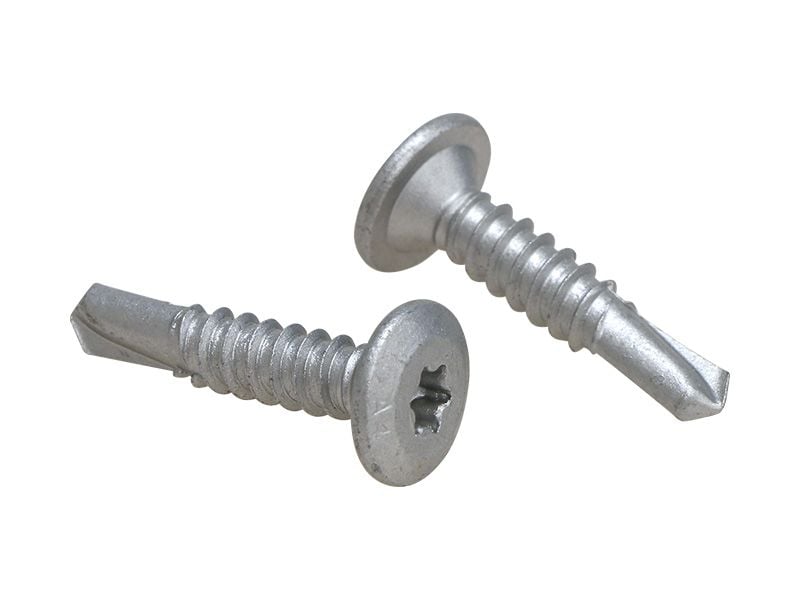

Wafer Head Torx SD Screws Bimetal 316 Stainless

Wafer Head Torx SD Screws Bimetal 316 Stainless

The torx driven wafer head screw provides reliable performance and installation over other head types. Torx drive reduces cam-out and slipping, that is ideal for self drilling screws.

These bimetal screws feature a heat treated hardened carbon drill tip with a 300 series stainless steel body and head. This provides the ultimate corrosion resistance in a self drilling screw.

A single zinc plated surface coating is applied therefore these screws will not have a typical stainless steel look. This is simply part of our manufacturing process ensuring a high level of corrosion protection. Zinc coating provides and aesthetic look whilst ensuring drilling performance is maintained.

SKU 3DWT1CBS41
Availability:
Pack:
Sub-total: / ex. gst.
Description

INSTALLATION

  • Drill Capacity: Steel 1.2-4.0mm
  • Driver Type: Torx
  • Installation Speed: 2400 RPM Max Drill Speed

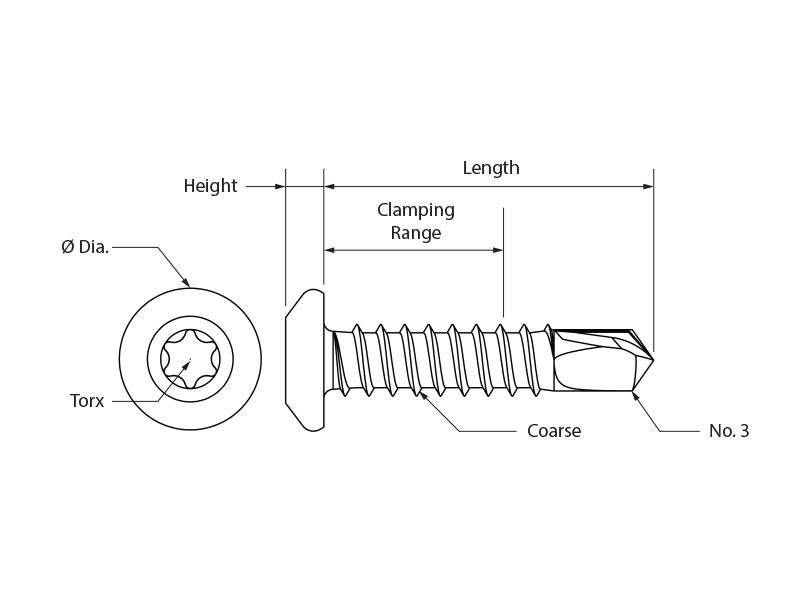

PHYSICAL CHARACTERISTICS

  • Head Type: Wafer Head
  • Point Type: No.3 Self-drilling
  • Material: Bimetal (stainless steel 316 grade, heat treated alloy steel tip)
  • Finish: Electroplated Zinc
  • Head Dia: 11.7mm (12g)
  • Head Height: 2.4mm (12g)



CORROSION RESISTANCE

Austenitic stainless steel 300 grade with Zinc Plated coating. 300 grade stainless steel provides adequate corrosive resistance, whilst the zinc plated coating ensures an aesthetic consistent surface appearance during storage, transportation and installation.

Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery SHIPS IN 1 - 2 DAYS
Material Grade Bimetal Stainless Steel
Head Type Wafer
Driver Type Torx Bit
Diameter / Gauge 10g, 12g
Point Type Drill Point No.3
Thread Type Coarse
Application Steel-to-Steel Self Drilling
Technical Information
SKU Size Finish Driver Type Thread
1142.0120025 12-14 x 25mm Gr316 T25 Coarse
