10g Torx Wafer Cladding SD Screws CL4

10g Torx Wafer Cladding SD Screws CL4

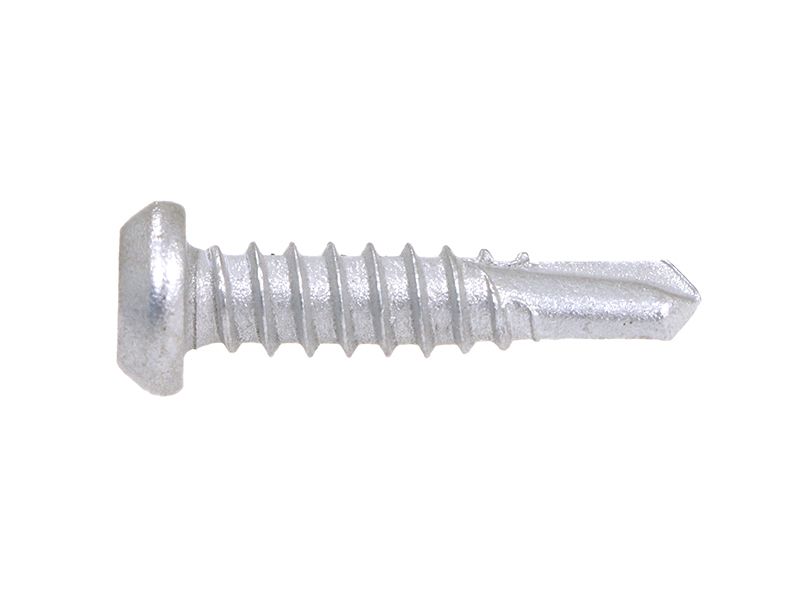

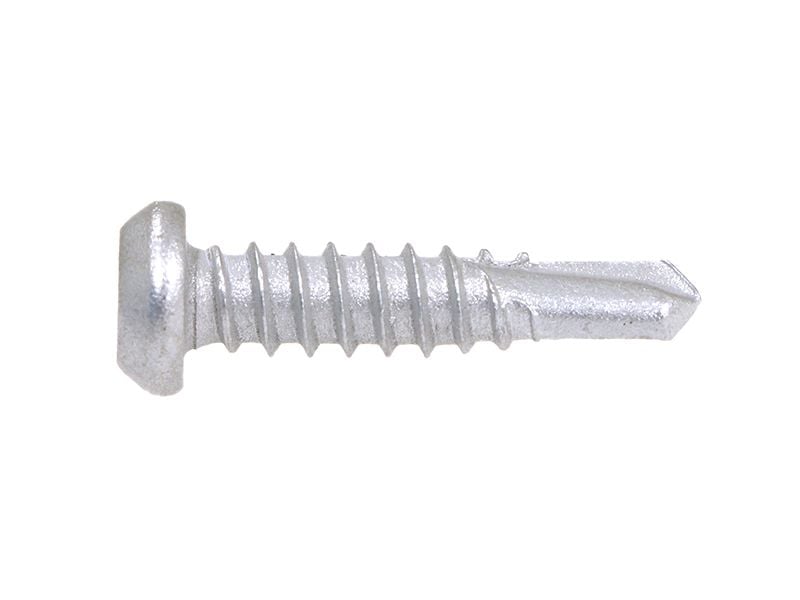

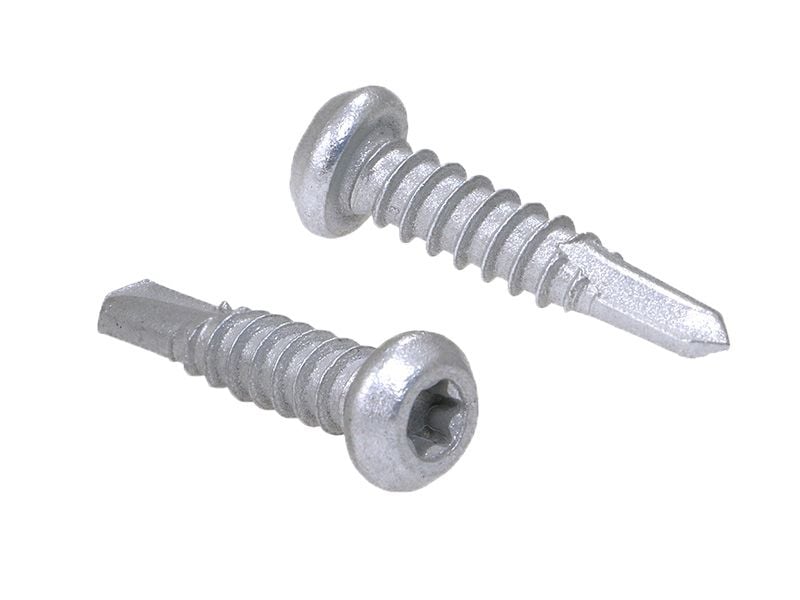

Torx Wafer SD Screws are the perfect cladding screw featuring a low profile head and a torx recess drive for maximum torque. These screws have a self-drilling point that can be installed without pre-drilling into light gauge steel material including battens or purlins.

  • Wafer heads sit flat against the surface
  • Class 4 surface coating suitable for external environment
  • Also available in a 12 gauge cladding screw
SKU 3DWT1CC410
Availability:
Pack:
Sub-total: / ex. gst.
Description

INSTALLATION

  • Drill Capacity: 0.75–3.5mm of steel

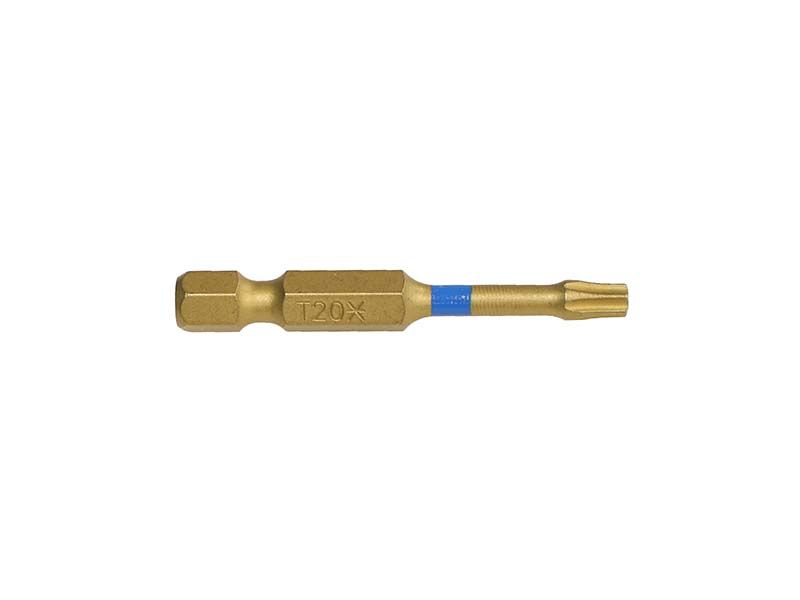

  • Driver Type: Torx T20 (SKU: 14M-SPH-T1-20.050-SF)
  • Installation Speed: 2300-2500 RPM max drill speed. We recommend the use of a drill driver with an appropriate clutch setting to prolong the life of driver bits.

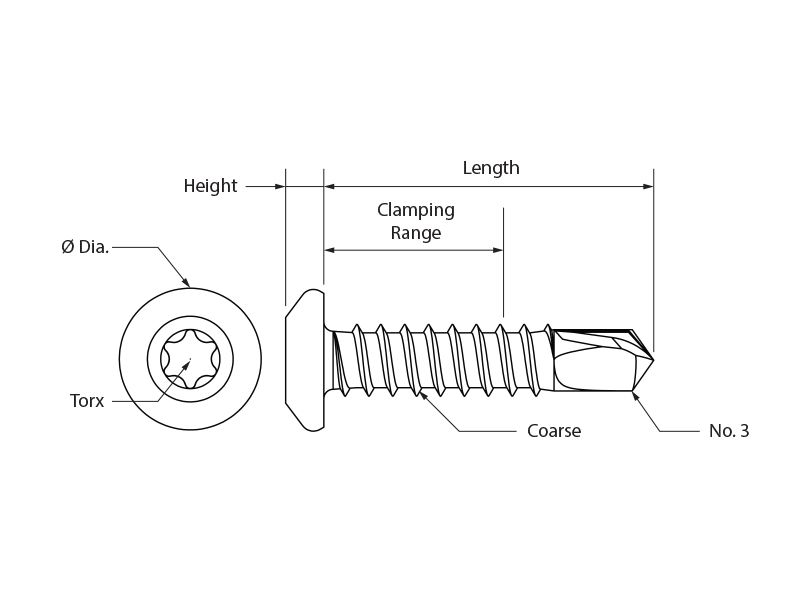

PHYSICAL CHARACTERISTICS

  • Head Type: Wafer
  • Thread: 10g Coarse
  • Point Type: No.3 Drill Point
  • Material: Carbon Steel
  • Finish: Class 4 Mechanical Galvanised
  • Head Dia: 9.4mm
  • Head Height: 3.1mm
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery SHIPS IN 1 - 2 DAYS
Coating & Plating Class 4 (Mech. Gal)
Material Grade Carbon Steel
Head Type Wafer
Driver Type Torx Bit
Diameter / Gauge 10g
Point Type Drill Point No.3
Thread Type Coarse
Application Steel-to-Steel Self Drilling
Technical Information
SKU Size Finish Driver Type Thread Item
1143.0100020 10-16 x 20mm Class 4 T20 Coarse 10-16 x 20mm
