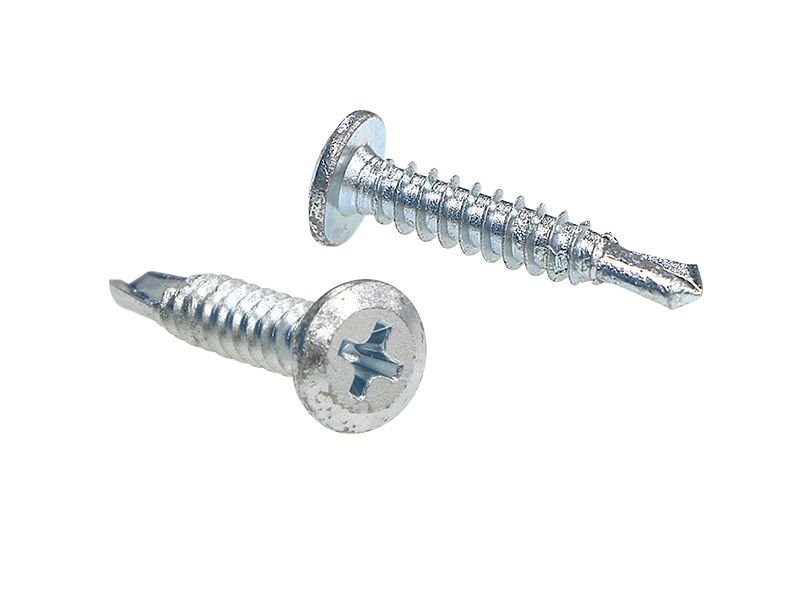

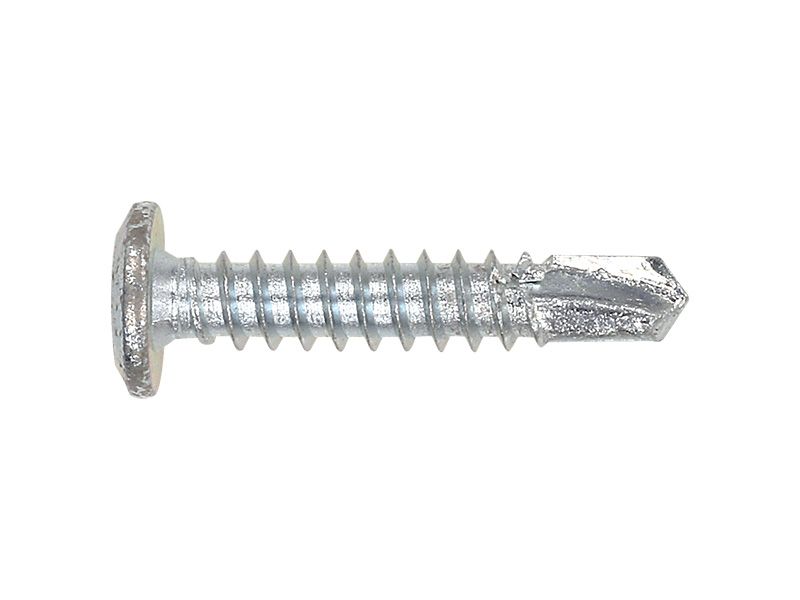

Wafer SD Screw Bimetal 304 Stainless
Wafer SD Screw Bimetal 304 Stainless
Bimetal screw wafer head screws feature a heat treated hardened carbon drill tip with a 300 series stainless steel body and head. This provides the ultimate corrosion resistance in a self drilling screw.
Our wafer bimetal screws have a single zinc plated surface coating therefore will not appear to have a typical stainless steel look. This is simply part of our manufacturing process ensuring a high level of corrosion protection. Zinc coating provides and aesthetic look whilst ensuring drilling performance is maintained.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: Steel 1.2-4.0mm
- Driver Type: P2 Philips Drive
- Installation Speed: 2400 RPM Max Drill Speed

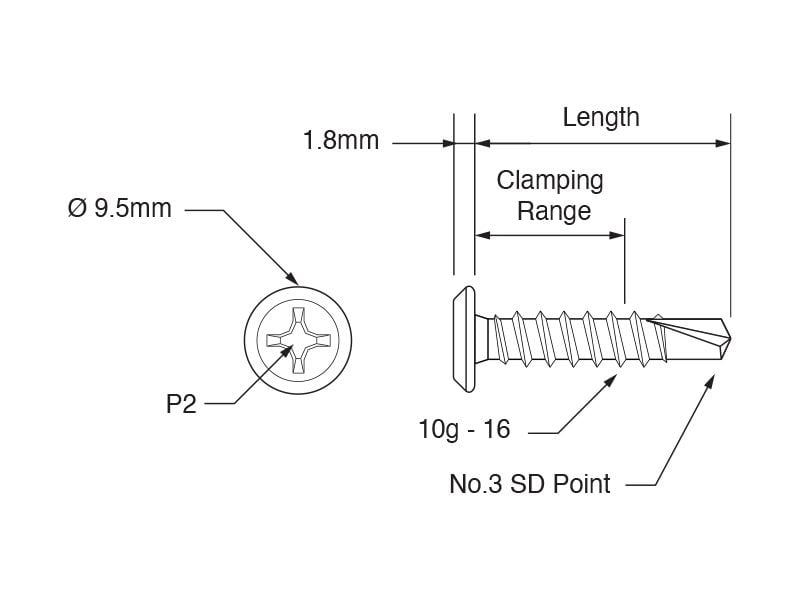

PHYSICAL CHARACTERISTICS
- Head Type: Wafer Head
- Point Type: No.3 Self-drilling
- Material: Bimetal (stainless steel 304 grade, heat treated alloy steel tip)
- Finish: Electroplated Zinc
- Head Dia: 9.5mm
- Head Height: 1.8mm
CORROSION RESISTANCE
Austenitic stainless steel 300 grade with Zinc Plated coating. 300 grade stainless steel provides adequate corrosive resistance, whilst the zinc plated coating ensures an aesthetic consistent surface appearance during storage, transportation and installation.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Bimetal Stainless Steel |
| Head Type | Wafer |
| Driver Type | Philips Bit |
| Diameter / Gauge | 10g |
| Point Type | Drill Point No.3 |
| Thread Type | Coarse |
| Application | Steel-to-Steel Self Drilling |
Technical Information
| SKU | Gauge x Length | Material | Driver Bit | Gauge x Length |
|---|---|---|---|---|
| 1133.0100025 | 10-16 x 25mm | Bimetal 304 | P2 | 10-16 x 25mm |
