Wafer Head Class 3 Self Drilling Screws
Wafer Head Class 3 Self Drilling Screws

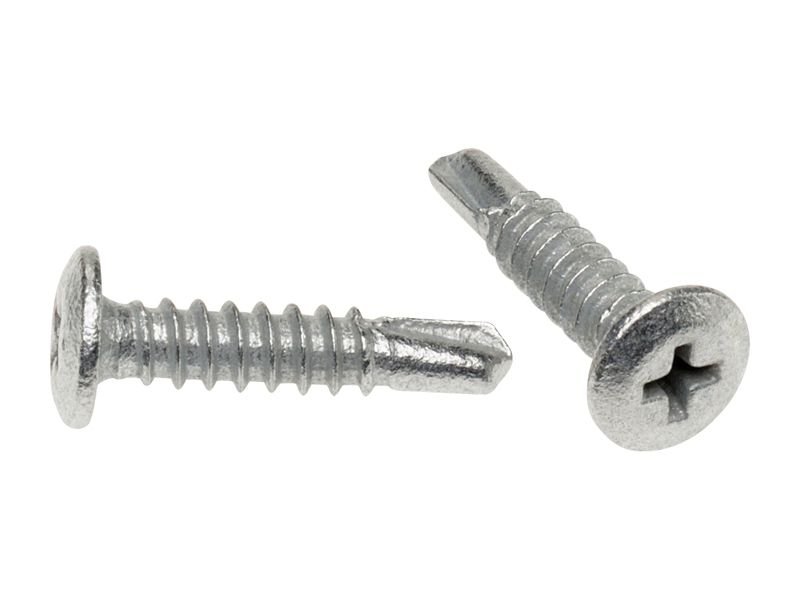

Phillips drive wafer head self drilling screw for metal. Wafer heads sit flat against the surface.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 0.75-3.5mm of Steel
- Driver Type: Philips P2
- Installation Speed: 2300-2500 RPM Max Drill Speed

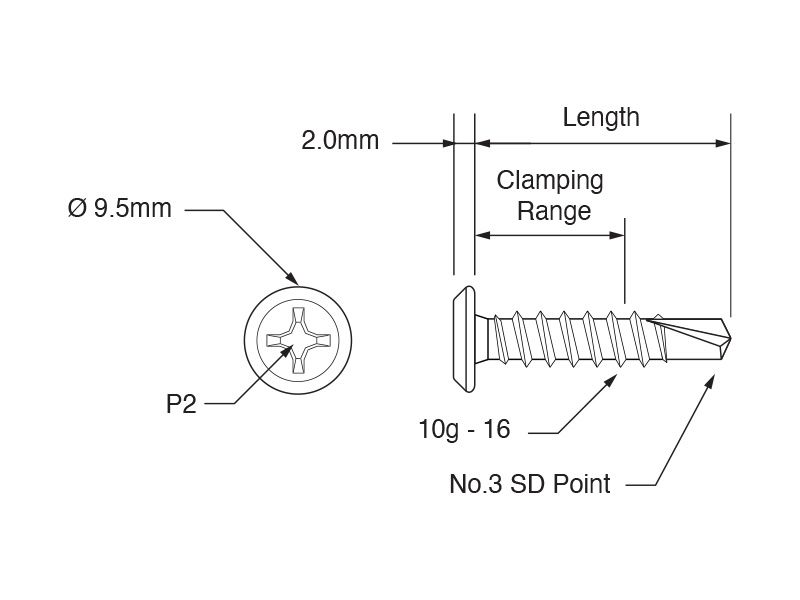

PHYSICAL CHARACTERISTICS
- Head Type: Wafer
- Point Type: Self Drilling Point
- Material: Carbon Steel
- Finish: Class 3 Mechanical Galvanised
- Head Dia: 9.4mm
- Head Height: 2mm
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Class 3 (Mech. Gal) |
| Material Grade | Carbon Steel |
| Head Type | Wafer |
| Driver Type | Philips Bit |
| Diameter / Gauge | 10g |
| Point Type | Drill Point No.3 |
| Thread Type | Coarse |
| Application | Steel-to-Steel Self Drilling |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Thread Type | Gauge x Length |
|---|---|---|---|---|---|
| 1135.0100016 | 10-16 x 16mm | Class 3 Gal | Ph2 | Coarse | 10-16 x 16mm |
| 1135.0100022 | 10-16 x 22mm | Class 3 Gal | Ph2 | Coarse | 10-16 x 22mm |
| 1135.0100030 | 10-16 x 30mm | Class 3 Gal | Ph2 | Coarse | 10-16 x 30mm |
