WA-S3 Variable Depth Wedge Anchors

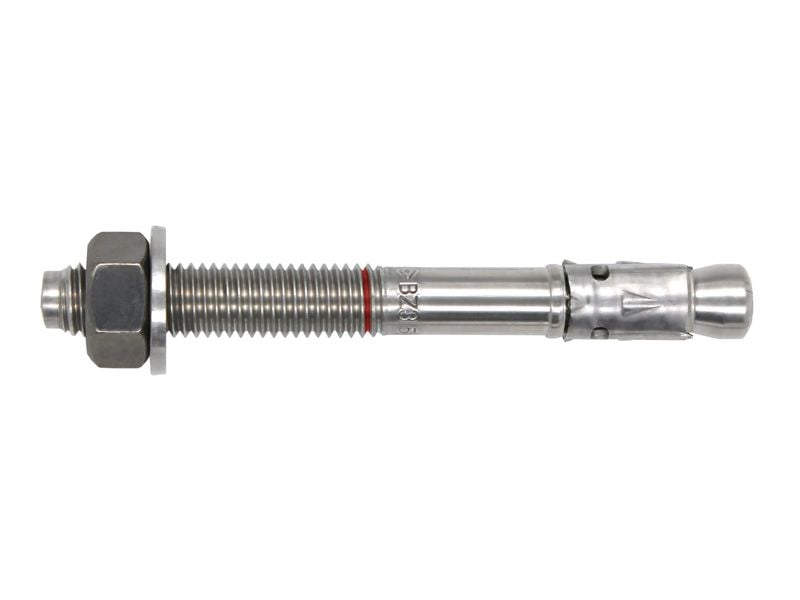

WA-S3 Wedge Anchor 316 (A4) Stainless, Seismic C1 & C2
NEW High Performance ● ● ● ● ●
Setting a higher standard for performance and flexibility in a mechanical expansion anchor, the WA-S3 has the highest approved tensile and shear loads at variable anchorage depths.
The newly designed wedge anchors flexibility allows for greater adaptation to installation change with variable approved setting depths, making a very economical anchor possible.

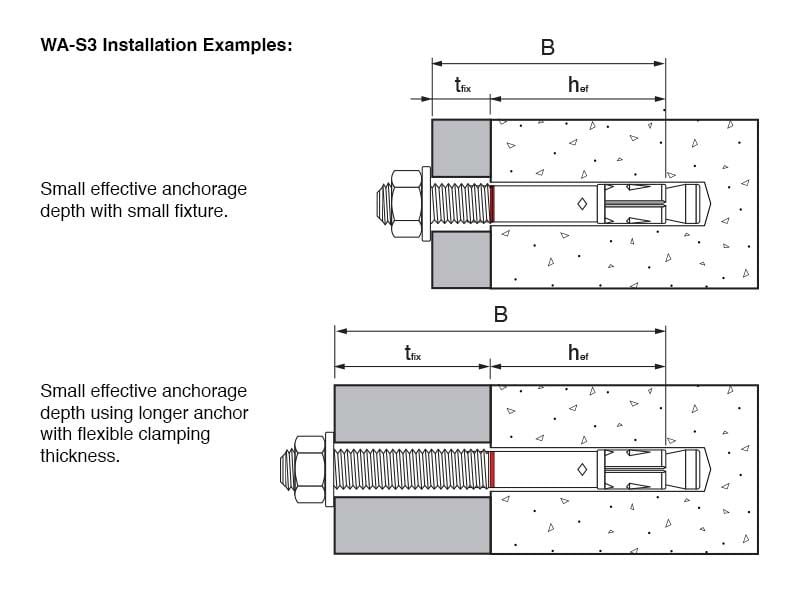

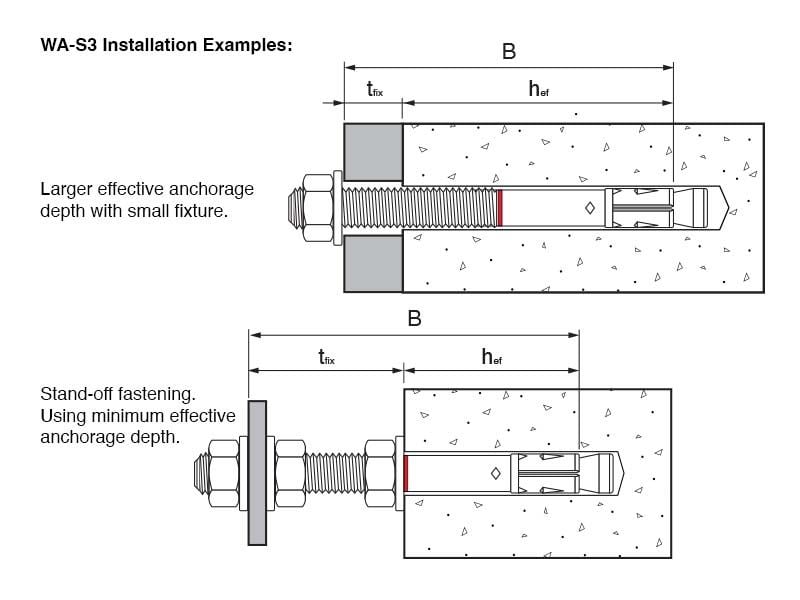

Effective anchorage depths can be reduced whilst maintaining high load performance. This can save fixings points, minimising risk of hitting reo and reduce drilling and setting effort.
- High Performance
- Approved for cracked and un-cracked concrete
- C1 & C2 seismic rated at reduced embedments
- Variable anchorage depths
- R30 - R120 fire rated, tunnel specific fire testing reports available for
450ºC and 1200ºC - Supported by AFOS® anchor design software
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
ADVANTAGES:
- Smaller minimum anchor depths, anchor spacing and edge distances
- Great performance for tension and shear load at variable setting depths
- ETA assessed in cracked and un-cracked concrete (option1)
- Seismic action category C1 and C2
- For increased loads under seismic action the annular gap between wedge anchor and fixture can be filled with adhesive using the FWS Filling Washer
- Swiss Shock Approval
- Fire Rated (R30 - R120)
- 316 (A4) stainless steel for outdoor and corrosive environments
- Minimum safe anchorage depth marker
*Note: Seismic C1 & C2 application requires an anchorage depth hef ≥ 40mm.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | 316 Stainless Steel |
|---|---|
| Coating & Plating | Plain / Unplated |
| Driver Type | Hex Sockets |
| Diameter / Gauge | M8, M10, M12, M16 |
| Thread Type | Metric |
| For use with | Concrete (cracked), Concrete (un-cracked) |
| Setting Conditions | Dustless Drilling, Hammer Drilling, Close to Edge, Overhead, Pre-set, Through Fixture |
| Approvals & Documents | ETA Certification, Fire Resistance |
| Compliance | AS 5216:2021, Seismic C1 & C2, Swiss Shock Load Approval, VicRoads BTN 008 |
| Software | AFOS® Anchor Design Software |
| Use for | Critical Anchoring, Facade & Cladding, Handrails & Balustrade, HVAC, Machinery Assembly, Structural Fixing, Suspension & Gantry |
Technical Information

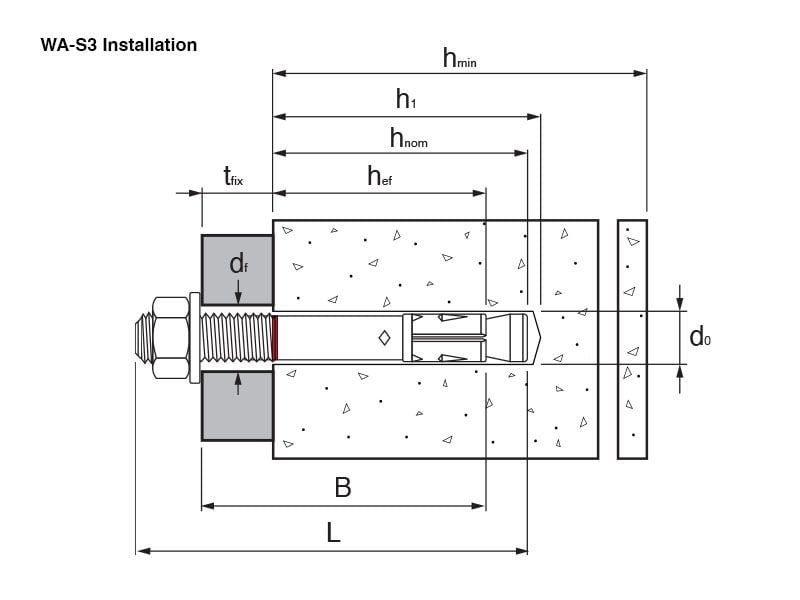

| SKU | Dia. x Length | Anchorage Depth, hef, min / hef, std / hef, max | Fixture, tfix | Usable Length, B |
|---|---|---|---|---|
| 1069.0080065 | M8 x 65mm WA-S3 | 35* / 45 / 90mm | B - hef | 45mm |
| 1069.0080095 | M8 x 95mm WA-S3 | 35* / 45 / 90mm | B - hef | 75mm |
| 1069.0080115 | M8 x 115mm WA-S3 | 35* / 45 / 90mm | B - hef | 95mm |
| 1069.0100070 | M10 x 70mm WA-S3 | 40 / 60 / 100mm | B - hef | 50mm |
| 1069.0100090 | M10 x 90mm WA-S3 | 40 / 60 / 100mm | B - hef | 70mm |
| 1069.0100110 | M10 x 110mm WA-S3 | 40 / 60 / 100mm | B - hef | 90mm |
| 1069.0100130 | M10 x 130mm WA-S3 | 40 / 60 / 100mm | B - hef | 110mm |
| 1069.0100155 | M10 x 155mm WA-S3 | 40 / 60 / 100mm | B - hef | 135mm |
| 1069.0120085 | M12 x 85mm WA-S3 | 50 / 70 / 125mm | B - hef | 100mm |
| 1069.0120105 | M12 x 105mm WA-S3 | 50 / 70 / 125mm | B - hef | 80mm |
| 1069.0120125 | M12 x 125mm WA-S3 | 50 / 70 / 125mm | B - hef | 100mm |
| 1069.0120145 | M12 x 145mm WA-S3 | 50 / 70 / 125mm | B - hef | 120mm |
| 1069.0120180 | M12 x 180mm WA-S3 | 50 / 70 / 125mm | B - hef | 155mm |
| 1069.0120200 | M12 x 200mm WA-S3 | 50 / 70 / 125mm | B - hef | 175mm |
| 1069.0160115 | M16 x 115mm WA-S3 | 65 / 85 / 160mm | B - hef | 80mm |
| 1069.0160135 | M16 x 135mm WA-S3 | 65 / 85 / 160mm | B - hef | 100mm |
| 1069.0160145 | M16 x 145mm WA-S3 | 65 / 85 / 160mm | B - hef | 110mm |
| 1069.0160170 | M16 x 170mm WA-S3 | 65 / 85 / 160mm | B - hef | 135mm |
| 1069.0160200 | M16 x 200mm WA-S3 | 65 / 85 / 160mm | B - hef | 165mm |
