Hex Washer Self Drilling Screws Gr304 Stainless

Skip to the beginning of the images gallery

Hex Washer Self Drilling Screws Gr304 Stainless

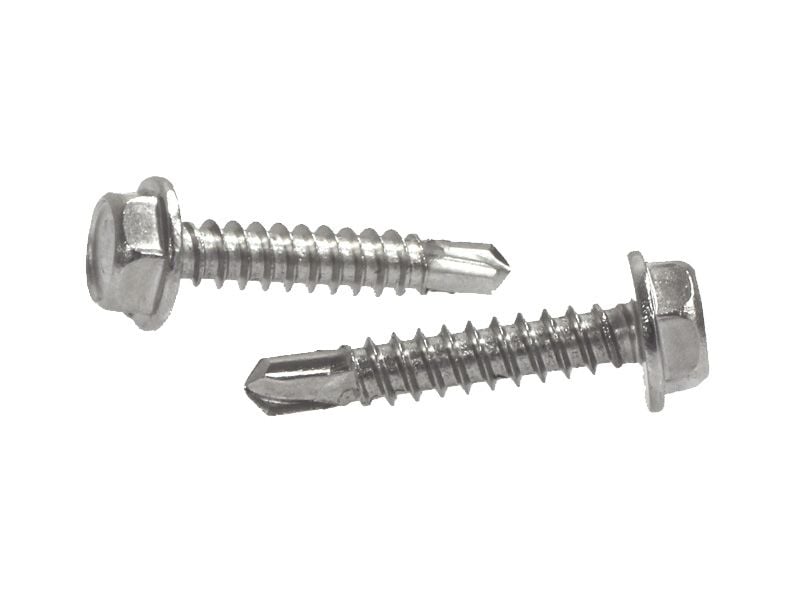

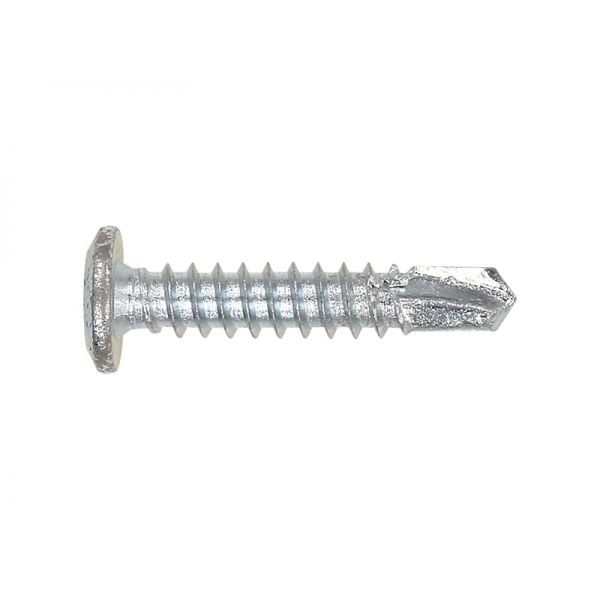

These 304 Stainless Steel self drilling screws are used only for soft non-ferrous metals such as ALUMINIUM. For increased drilling performance with a stainless steel screw, use a Bi-Metal screw.

SKU 3F.029

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
10-16 x 16mm SD Screws Hex Hd 304 SS From $89.40
10-16 x 25mm SD Screws Hex Hd 304 SS From $123.83
10-16 x 35mm SD Screws Hex Hd 304 SS From $145.25
12-14 x 25mm SD Screws Hex Hd 304 SS From $157.58
12-14 x 32mm SD Screws Hex Hd 304 SS From $169.53
12-14 x 50mm SD Screws Hex Hd 304 SS From $110.85

Build A Quote?

Store Item

SKU:

Description

INSTALLATION

Drill Capacity: Only for soft non-ferrous metals such as ALUMINIUM
Driver Type: 10-12g (5/16 Hex Socket), 14g (3/8 Hex Socket)
Installation Speed: 2400 RPM Max Drill Speed

PHYSICAL CHARACTERISTICS

Head Type: Hex Head
Point Type: Self-drilling
Material: 304 Stainless Steel
Finish: N/A

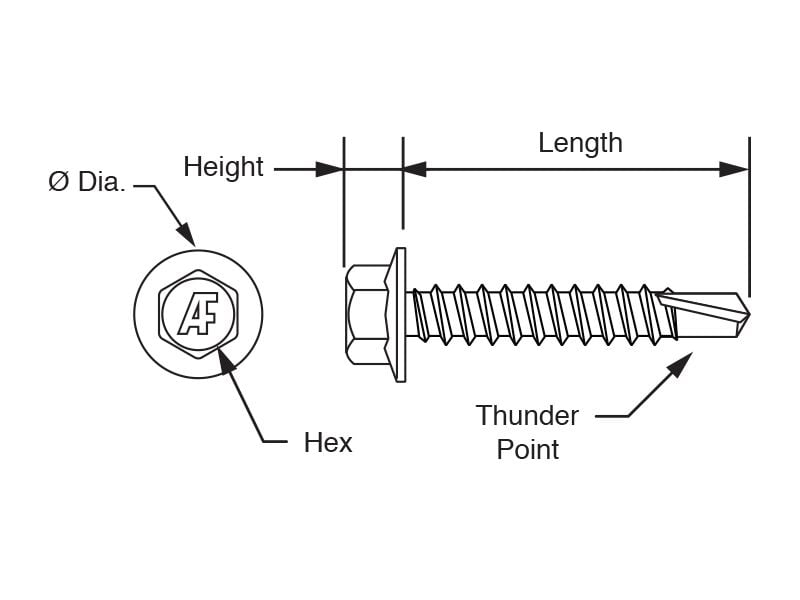

Head Dia: 10g (10.5mm), 12g (11mm), 14g (13.2mm)
Head Height: 10g (4.45mm), 12g (5.45mm), 14g (6.45mm)

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Delivery	SHIPS IN 1 - 2 DAYS
Material Grade	304 Stainless Steel
Head Type	Hex Washer
Driver Type	Hex Sockets
Diameter / Gauge	10g, 12g
Point Type	Drill Point No.3
Thread Type	Coarse
Application	Steel-to-Steel Self Drilling

Technical Information

SKU	Gauge x Length	Material	Driver Bit	Gauge x Length
1119.0100016	10-16 x 16mm	Gr304	5/16" Hex	10-16 x 16mm
1119.0100025	10-16 x 25mm	Gr304	5/16" Hex	10-16 x 25mm
1119.0100035	10-16 x 35mm	Gr304	5/16" Hex	10-16 x 35mm
1119.0120025	12-14 x 25mm	Gr304	5/16" Hex	12-14 x 25mm
1119.0120032	12-14 x 32mm	Gr304	5/16" Hex	12-14 x 32mm
1119.0120050	12-14 x 50mm	Gr304	5/16" Hex	12-14 x 50mm
