SD500® Hex 12-24 Self Drilling Screws Bimetal Stainless

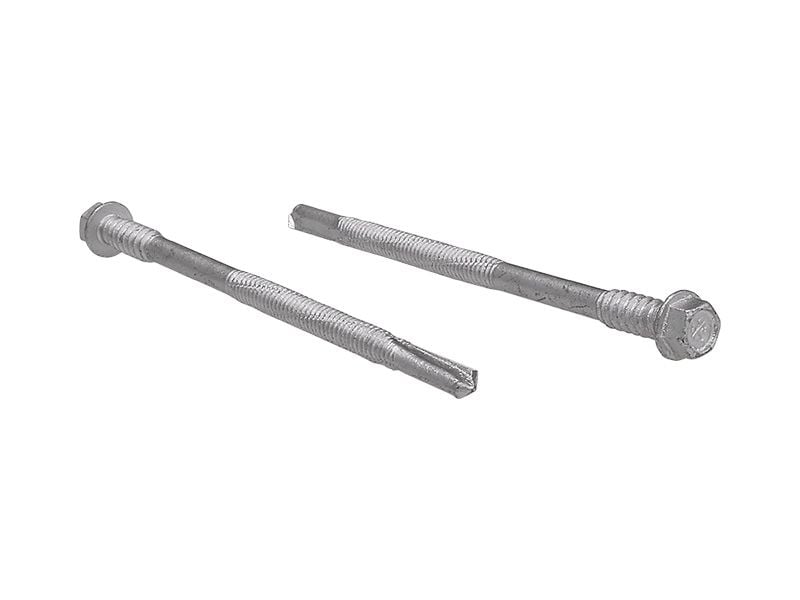

The SD500^® Hex Self Drilling Screws feature hardened carbon steel drill tip 304 grade stainless steel body and head. This gives the ultimate corrosion resistance in a self drilling screw that can be used in applications using variety of metals.

SD500^® Hex Self Drilling Screws have a dual layer Ruspert surface coating therefore the surface will not appear to have a typical stainless steel look. This is simply part of the manufacturing process ensuring a high level of corrosion protection.

Drill capacity through steel: 6.00 – 12.00 mm

Proper installation should allow for the entire screw point to penetrate your joining material. Please select the correct length.

SKU 3S5H-Bimetal

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
12-24 x 38mm SD500 Screws HEX WASHER HD Bimetal 304 SS From $446.98
12-24 x 50mm SD500 Screws HEX WASHER HD Bimetal 304 SS From $529.63
12-24 x 65mm SD500 Screws HEX WASHER HD Bimetal 304 SS From $324.80
12-24 x 80mm SD500 Screws HEX WASHER HD Bimetal 304 SS From $400.25
12-24 x 90mm SD500 Screws HEX WASHER HD Bimetal 304 SS From $445.80
12-24 x 100mm SD500 Screws HEX WASHER HD Bimetal 304 SS From $519.11
12-24 x 125mm SD500 Screws HEX WASHER HD Bimetal 304 SS From $557.38

Build A Quote?

Store Item

SKU:

Description

INSTALLATION

Drill Capacity: 4.5-12mm of Steel
Driver Type: 5/16 Hex Socket
Installation Speed: 1800 RPM Max Drill Speed

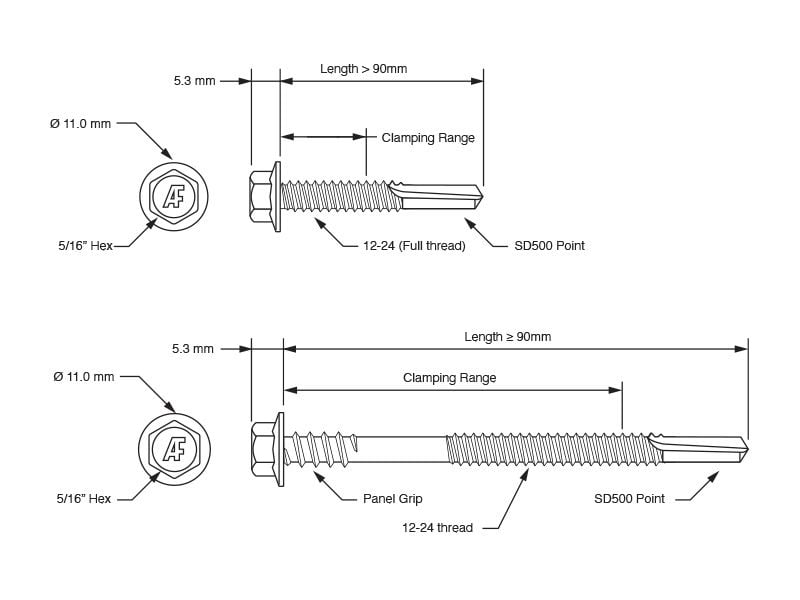

PHYSICAL CHARACTERISTICS

Head Type: Hex
Point Type: Self-Drilling No 5 Point
Material: Bimetal (stainless steel 304 grade, heat treated alloy steel tip)
Finish: Ruspert
Head Dia: 11mm
Head Height: 5.3mm

CORROSION RESISTANCE

Austenitic stainless steel 304 grade with Ruspert coating. Ruspert coating is a high-grade metal surface technology that prevents surface corrosion. Consisting of a baked ceramic surface coating and a second metallic zinc layer, these layers are bonded together through chemical reactions producing a strong coating film.

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Delivery	SHIPS IN 1 - 2 DAYS
Coating & Plating	Ruspert
Material Grade	Bimetal Stainless Steel
Head Type	Hex Washer
Driver Type	Hex Sockets
Diameter / Gauge	12g
Point Type	Drill Point No.5
Thread Type	Fine
For use with	Aluminium, Stainless Steel, Steel
Application	Steel-to-Steel Self Drilling

Technical Information

SKU	Gauge x Length	Material	Fix. Range	Thread
1171.0120038	12-24 x 38mm	Bimetal	12 / 15mm	Full
1171.0120050	12-24 x 50mm	Bimetal	12 / 27mm	Full
1171.0120065	12-24 x 65mm	Bimetal	12 / 42mm	Full
1171.0120080	12-24 x 80mm	Bimetal	12 / 57mm	Full
1171.0120090	12-24 x 90mm	Bimetal	22 / 67mm	Part
1171.0120100	12-24 x 100mm	Bimetal	22 / 77mm	Part
1171.0120125	12-24 x 125mm	Bimetal	47 / 102mm	Part
