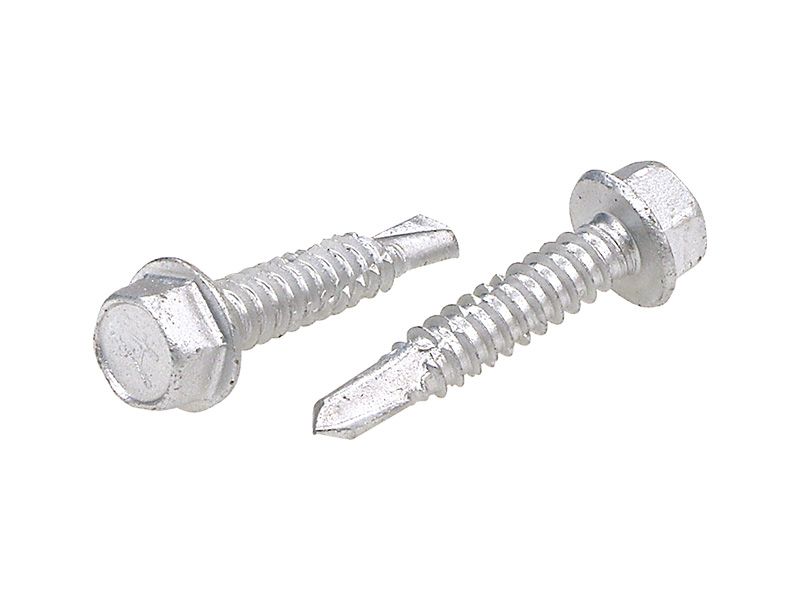

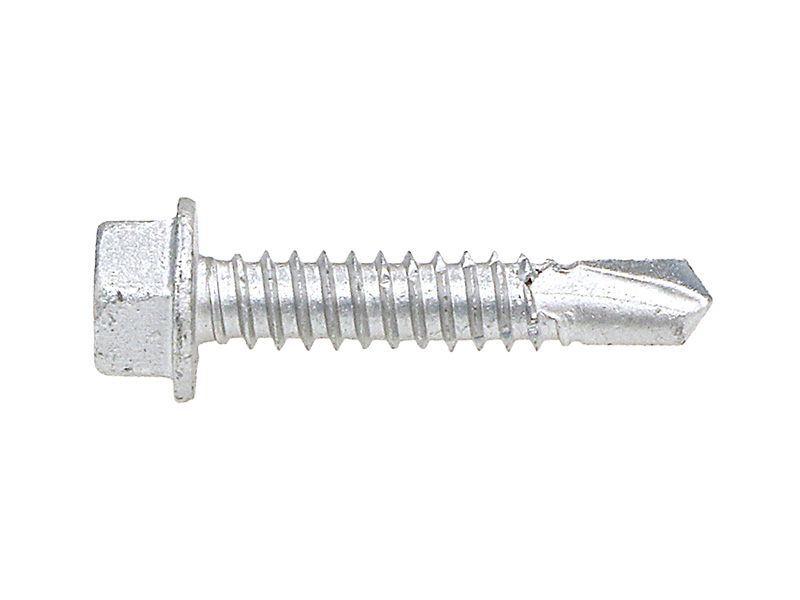

Hex Washer SD Screws Bimetal 304 Stainless

Hex Washer SD Screws Bimetal 304 Stainless

Our bimetal screws feature heat treated hardened carbon drill tip with a stainless steel grade body and head.

This provides the ultimate corrosion resistance in a self drilling screw whilst still maintaining drilling performance.

Our bimetal screws have a dual layer Ruspert surface coating therefore the surface will not appear to have a typical stainless steel look. This is simply part of the manufacturing process ensuring a high level of corrosion protection.

TIERED PRICING
SHIPS IN 1 - 2 DAYS
$185.63
  • Buy 4 for $171.58 each and save 8%
  • Buy 6 for $159.13 each and save 15%
$232.90
  • Buy 4 for $211.48 each and save 10%
  • Buy 6 for $194.10 each and save 17%
$265.50
  • Buy 4 for $243.48 each and save 9%
  • Buy 6 for $221.25 each and save 17%
$300.50
  • Buy 4 for $267.13 each and save 12%
  • Buy 6 for $240.40 each and save 20%
$165.95
  • Buy 8 for $152.19 each and save 9%
  • Buy 12 for $138.29 each and save 17%
$414.85
  • Buy 4 for $380.43 each and save 9%
  • Buy 6 for $345.70 each and save 17%
Order Here
Gauge x Length Material Unit(s) EX.GST QTY
Gauge x Length Material - Pack Qty.- $ Ex. GST -
BoxVOLUME DISCOUNT:
Close
Qty.
Add line
Product List
SKU Gauge x Length Driver Bit Thread Length Bx. Qty. Crt. Qty.
SKU 3DHUBS10016 Gauge x Length 10-16 x 16mm Driver Bit 5/16" Hex Thread Length Full Bx. Qty. 500 Crt. Qty.
SKU 3DHUBS12025 Gauge x Length 12-14 x 25mm Driver Bit 5/16" Hex Thread Length Full Bx. Qty. 500 Crt. Qty. 6000
SKU 3DHUBS14032 Gauge x Length 14-14 x 32mm Driver Bit 3/8" Hex Thread Length Full Bx. Qty. 500 Crt. Qty. 3000
SKU 3DHUBS14038 Gauge x Length 14-14 x 38mm Driver Bit 3/8" Hex Thread Length Full Bx. Qty. 500 Crt. Qty. 3000
SKU 3DHUBS14050 Gauge x Length 14-14 x 50mm Driver Bit 3/8" Hex Thread Length Full Bx. Qty. 250 Crt. Qty. 2000
SKU 3DHUBS14075 Gauge x Length 14-14 x 75mm Driver Bit 3/8" Hex Thread Length Full Bx. Qty. 500 Crt. Qty.
Downloads

 TECHNICAL INFO:

INSTALLATION

  • Drill Capacity: 10g (1-4mm), 12g (1.5-5mm), 14g (2-6mm)
  • Driver Type: 10-12g (5/16 Hex Socket), 14g (3/8 Hex Socket)
  • Installation Speed: 2400 RPM Max Drill Speed

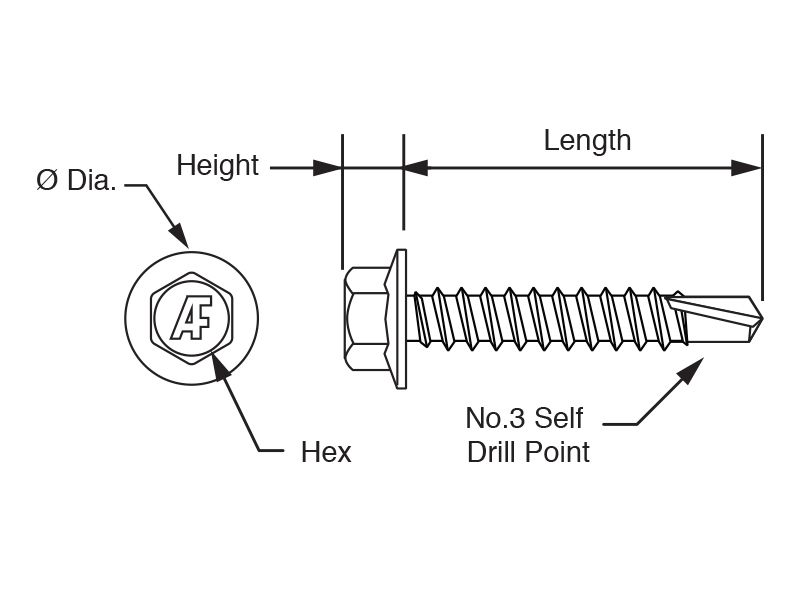

PHYSICAL CHARACTERISTICS

  • Head Type: Hex Head
  • Point Type: Self-drilling
  • Material: Bimetal (stainless steel 304 grade, heat treated alloy steel tip)
  • Finish: Ruspert
  • Head Dia: 10g (10mm), 12g (10.6mm), 14g (12.6mm)
  • Head Height: 10g (4.5mm), 12g (5.3mm), 14g (6.2mm)

CORROSION RESISTANCE
Austenitic stainless steel 300 grade with Ruspert coating.
Ruspert coating is a high-grade metal surface technology that prevents surface corrosion. Consisting of a baked ceramic surface coating and a second metallic zinc layer, these layers are bonded together through chemical reactions producing a strong coating film.
