A dynamic anchor designed for fatigue cyclic loading.
WA-S3D Wedge Anchor Dynamic 316 (A4) Seismic C1 & C2
The quick and easy installation of the WA-S3D wedge anchor has significantly improved the economic efficiency of an anchor achieving light to medium fatigue cyclic loading.

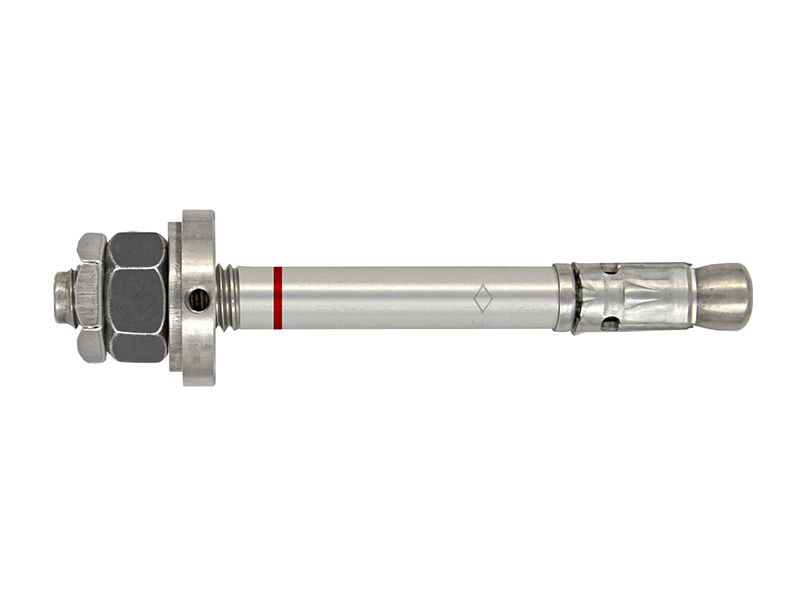

The new WA-S3D dynamic wedge anchor is the fist expansion anchor with an ETA for fatigue cyclic loading, and can be inserted through fixing or pre-set. The wedge anchor features filling washer that allows chemical adhesive to be injected through the hole filling the annular gap.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | 316 Stainless Steel |
|---|---|
| Coating & Plating | Plain / Unplated |
| Driver Type | Hex Sockets |
| Diameter / Gauge | M10, M12, M16 |
| Thread Type | Metric |
| For use with | Concrete (cracked), Concrete (un-cracked) |
| Setting Conditions | Dustless Drilling, Hammer Drilling, Close to Edge, Overhead, Pre-set, Through Fixture |
| Approvals & Documents | ETA Certification, Fire Resistance |
| Compliance | AS 5216:2021, Dynamic Loads, Seismic C1 & C2, Swiss Shock Load Approval, VicRoads BTN 008 |
| Software | AFOS® Anchor Design Software |
| Use for | Critical Anchoring, Facade & Cladding, Handrails & Balustrade, HVAC, Machinery Assembly, Structural Fixing, Suspension & Gantry |
Technical Information

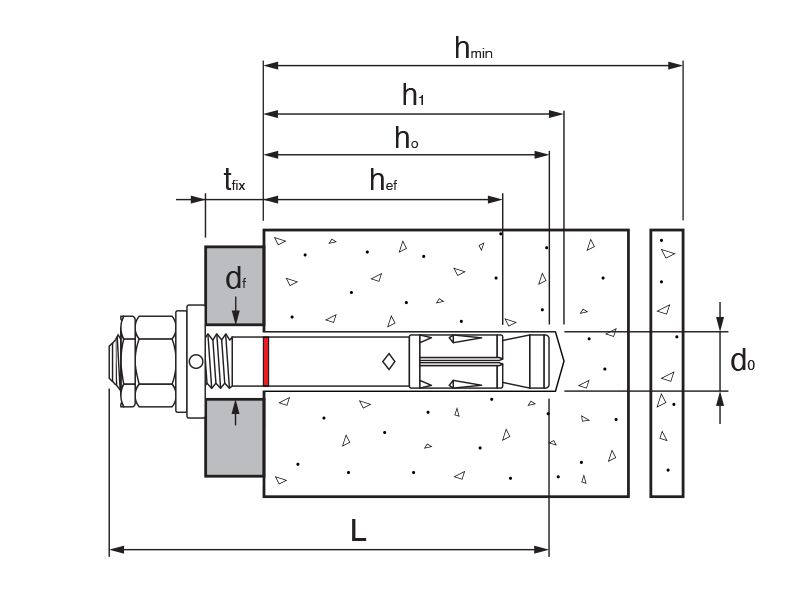

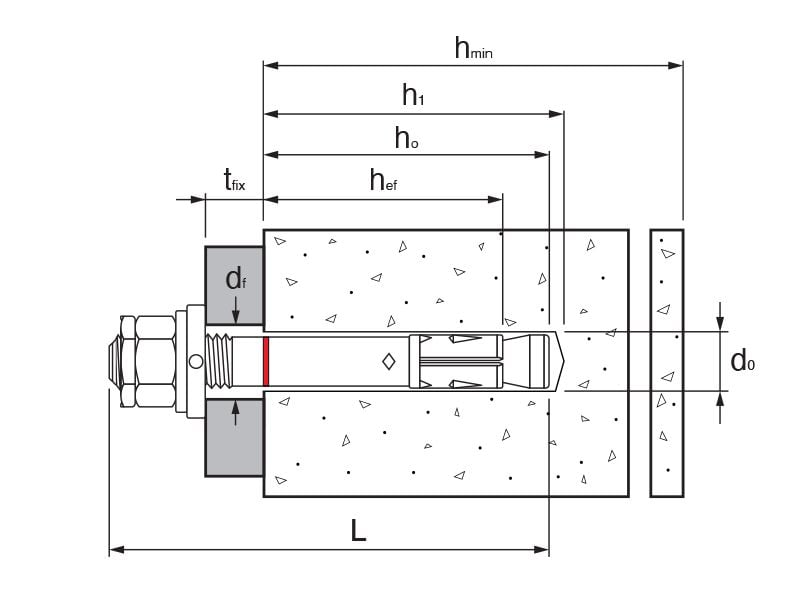

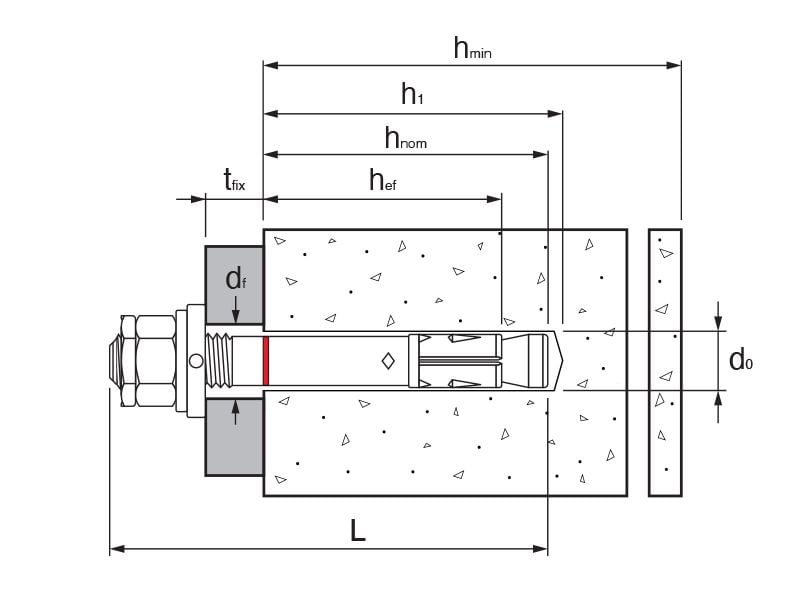

| SKU | Dia. x Length | Fixture, tfix [ min / max ] | Drill Hole Depth | Drill Dia. Ø | Adhesive Per Anchor |
|---|---|---|---|---|---|
| 1070.0100100 | M10 x 100mm WA-S3D | 5 / 10mm | 71mm | 10mm | 2.7ml |
| 1070.0100120 | M10 x 120mm WA-S3D | 10 / 30mm | 71mm | 10mm | 3.8ml |
| 1070.0100140 | M10 x 140mm WA-S3D | 30 / 50mm | 71mm | 10mm | 4.9ml |
| 1070.0120115 | M12 x 115mm WA-S3D | 6 / 10mm | 83mm | 12mm | 2.9ml |
| 1070.0120135 | M12 x 135mm WA-S3D | 10 / 30mm | 83mm | 12mm | 4.3ml |
| 1070.0120155 | M12 x 155mm WA-S3D | 30 / 50mm | 83mm | 12mm | 5.7ml |
| 1070.0160155 | M16 x 155mm WA-S3D | 8 / 25mm | 102mm | 16mm | 4.7ml |
| 1070.0160180 | M16 x 180mm WA-S3D | 25 / 30mm | 102mm | 16mm | 7.2ml |
