Dynamic CS-SD Conical Chem Stud / 316
CS-SD Conical Stud Dynamic, 316 Stainless

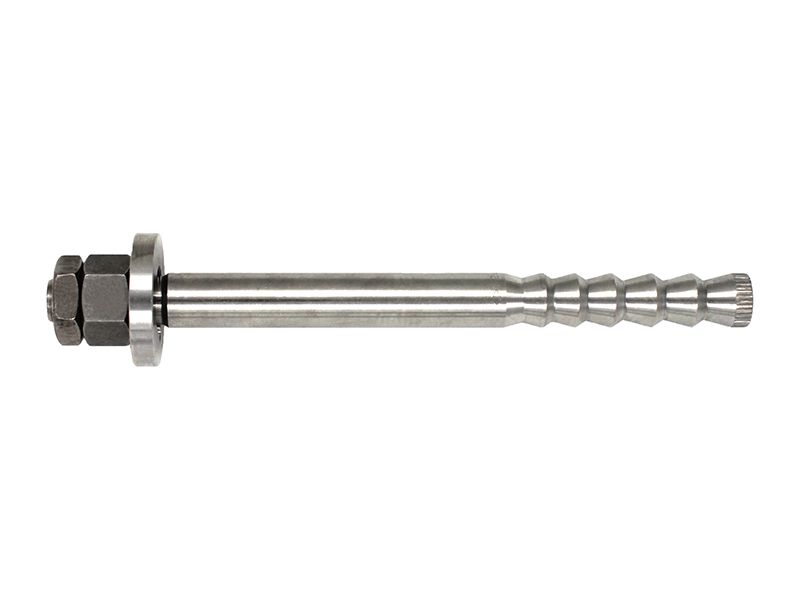

The dynamic CS-SD system involves both the an chem stud with conical expansion elements and a chemical injection anchor. The combination of these two elements provides extremely high load bearing capacity even at a minimum edge distance and spacing. Assembled with a special nut and filling washer to account for angular misalignment, this is a flexible system suitable for pre-installation or through fastening.
- Approved in cracked and uncracked concrete under fatigue cyclic loading.
- Low anchorage depths and component thickness.
- For use in structures subject to dry internal conditions or external atmospheric exposure.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Advantages:
- High loads, if the number of load cycles is limited
- The design can distinguished between static and non-static loads
- No load reduction for wet or water filled drilled holes
- Dill hole creation with hammer drill or hollow (dust-less) drill bit

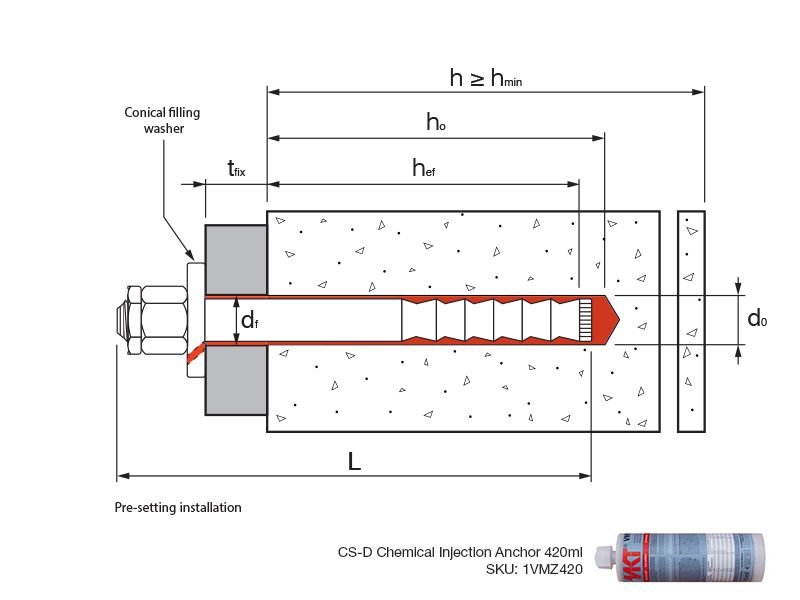

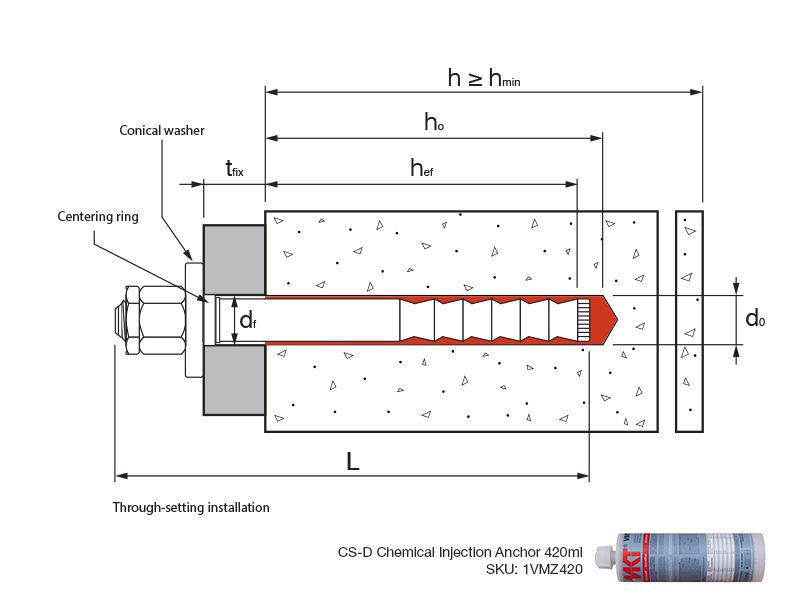

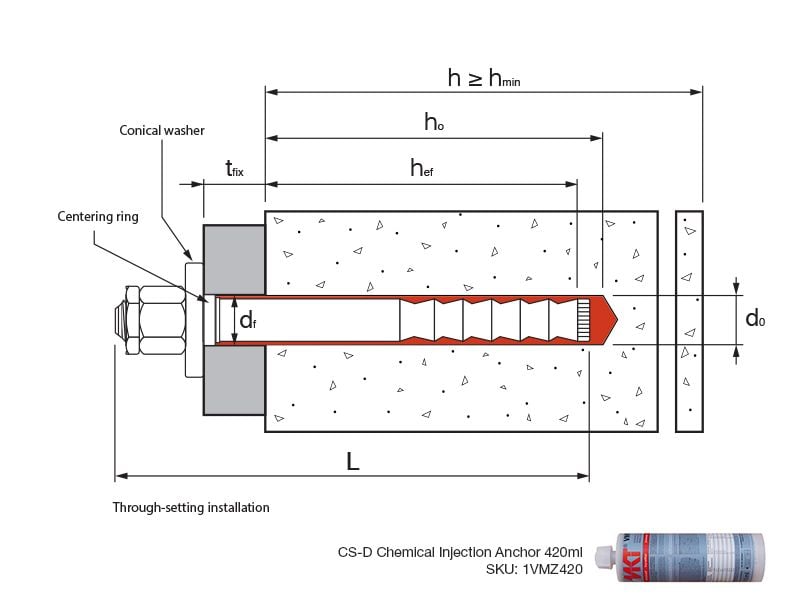

*The optimum drill hole depth must be calculated with the actual fixture thickness (tfix).
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | 316 Stainless Steel |
|---|---|
| Diameter / Gauge | M12, M16 |
| For use with | Concrete (cracked), Concrete (un-cracked), Masonry Solid Block |
| Setting Conditions | Dustless Drilling, Hammer Drilling, Overhead, Pre-set |
| Approvals & Documents | ETA Bonded Anchors, Fire Resistance, VOC Report |
| Compliance | AS 5216:2021, Dynamic Loads, Greenstar, Seismic C1 & C2 |
| Software | AFOS® Anchor Design Software |
| Use for | Critical Anchoring, Handrails & Balustrade, HVAC, Machinery Assembly, Outdoor Structure, Suspension & Gantry |
Technical Information
| SKU | Dia. x Length | Fixture, tfix [ min / max ] | Drill Hole Depth*, ho | Drill Dia Ø, do | Studs Per 420ml Cartridge |
|---|---|---|---|---|---|
| 1005.0120153 | M12 x 153mm CS-SD | 12 / 25mm | 130mm - tfix | 14mm | 31 |
| 1005.0120178 | M12 x 178mm CS-SD | 12 / 50mm | 155mm - tfix | 14mm | 25 |
| 1005.0160185 | M16 x 185mm CS-SD | 16 / 25mm | 158mm - tfix | 18mm | 20 |
| 1005.0160210 | M16 x 210mm CS-SD | 16 / 50mm | 183mm - tfix | 18mm | 16 |
| 1066.4200001 | CS-D 420ml Chemical Injection |
