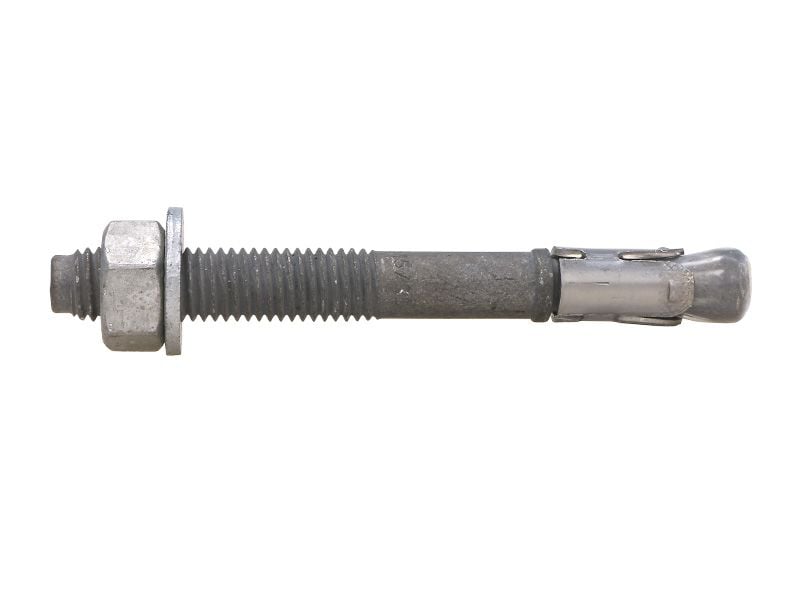

WA-G2 are superior through-bolt anchor for external use. The torque-controlled expansion anchor is approved for both seismic setting and a reduced anchorage depth to increase the fixture thickness when required. These features alone provide the advantage over the WA-G1 anchor.

Made from high-quality steel with a thick galvanised coating ensures excellent protection to the fixing the structure.

These wedge anchors are manufactured in Europe, independently assessed and bare the marks of the ETA and CE for quality assurance and superior fastening. Through-bolt expansion type mechanical anchors such as these shall be installed to the correct depth and tension.

  • ETA assessed option 1 anchor : seismic C1 & C2, cracked concrete
SKU 1WAG2
Availability:
Pack:
Sub-total: / ex. gst.
Description

CHARACTERISTICS AND BENEFITS

  • Easy installation – installation by controlled torque.
  • Assessed for use in areas of seismic activity.
  • Use in cracked and un-cracked concrete.
  • Use for medium loads.
  • Pre-install in concrete or through fixture.
  • Variety of lengths and diameters.
  • For static and quasi-static loads.
  • Assessed for fire resistance RF30 to RF120.



APPLICATIONS

  • Structural fixings in cracked and non cracked concrete, including industrial and marine environments
  • Safety barriers.
  • Fixings of steel beams, perforated bracket guides, machinery, boilers, signage, stadium seating, facade substructures.
  • Food industries.
  • Fixing of wood structures to concrete





*Non-seismic rated anchor

**Recommended maximum fixture: NCC compliant maximum fixture thickness. Larger max fixture at smaller embedment is possible. Please refer to technical documentation for more information.

Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery SHIPS IN 1 - 2 DAYS
Material Grade Carbon Steel
Coating & Plating Galvanised
Driver Type Hex Sockets
Diameter / Gauge M8, M10, M12, M16
Thread Type Metric
For use with Concrete (cracked), Concrete (un-cracked)
Setting Conditions Hammer Drilling, Overhead, Through Fixture
Approvals & Documents ETA Certification, Fire Resistance
Compliance AS 5216:2021, Cyclic Loads, Seismic C1 & C2, Swiss Shock Load Approval
Software AFOS® Anchor Design Software
Technical Information
SKU Dia. x Length Rec Max Fix** Drill Depth Seismic C1 / C2
1067.0080080 M8 x 80mm WA-G2 15mm 60mm ✓ / ✓
1067.0080095 M8 x 95mm WA-G2 30mm 60mm ✓ / ✓
1067.0080115 M8 x 115mm WA-G2 50mm 60mm ✓ / ✓
1067.0100070 M10 x 70mm* WA-G2 10mm 55mm -
1067.0100090 M10 x 90mm WA-G2 10mm 75mm ✓ / ✓
1067.0100130 M10 x 130mm WA-G2 50mm 75mm ✓ / ✓
1067.0120085 M12 x 85mm* WA-G2 10mm 70mm -
1067.0120110 M12 x 110mm WA-G2 15mm 90mm ✓ / ✓
1067.0120145 M12 x 145mm WA-G2 50mm 90mm ✓ / ✓
1067.0160135 M16 x 135mm WA-G2 15mm 110mm ✓ / ✓
1067.0160145 M16 x 145mm WA-G2 25mm 110mm ✓ / ✓
1067.0160200 M16 x 200mm WA-G2 80mm 110mm ✓ / ✓
