SQ800® Screws self drill thick steel up-to 20mm

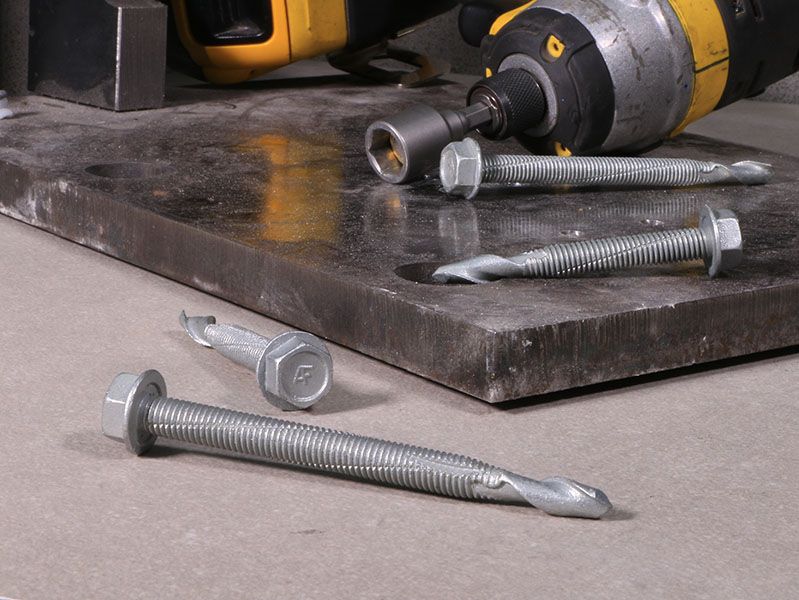

INSTALLATION

We recommend the use of a drill driver on low speed, applying constant pressure. Do not use an impact driver as this may damage the screw – it is not recommend to over torque screws.

The drill point must be completely drilled through the joining material to ensure effective installation.

Maximum drilling capacity is for the self drilling and self tapping action of the screw. If elements of more than 20mm thickness are required to be connected, the hole in the top element being connected to the steel needs to be predrilled and 1-2mm oversized.

It is possible to self drill through multiple plates up to 20mm total thickness. However, these plates must be clamped together securely first.

• Drill Capacity: 6.0 – 20.0mm steel
• *Fixture Range: this is total thickness of all connected material including the steel substrate. See Technical Information table below.
• Driver Type: 13mm hex socket
• Installation Speed: 1,000 – 1,700 max RPM drill speed

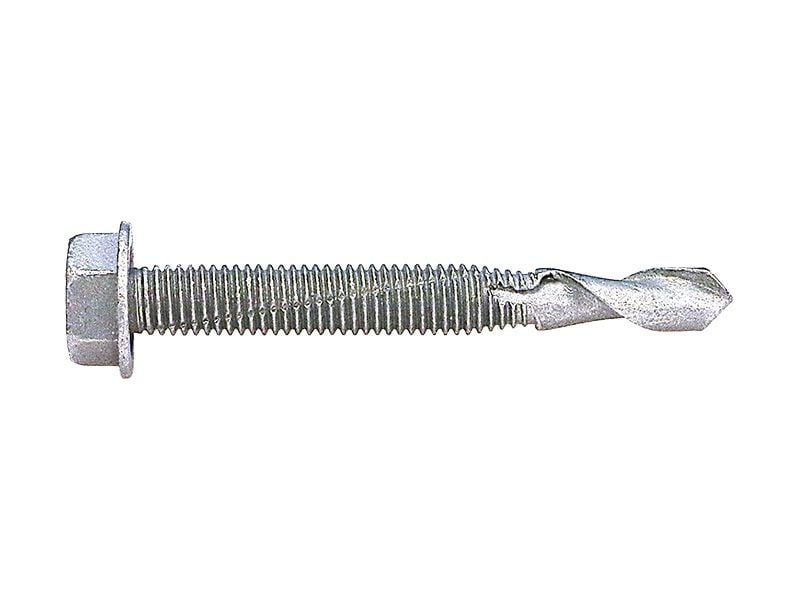

PHYSICAL CHARACTERISTICS

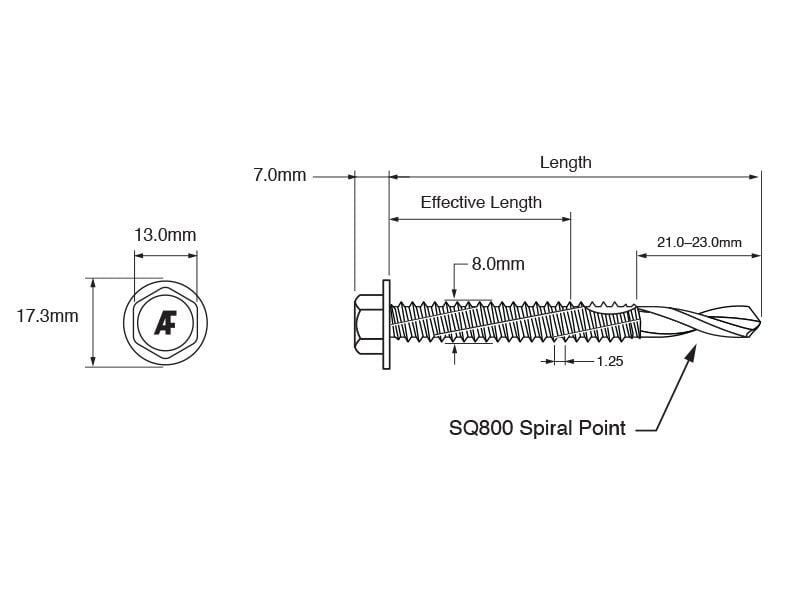

• Head Type: Hex washer

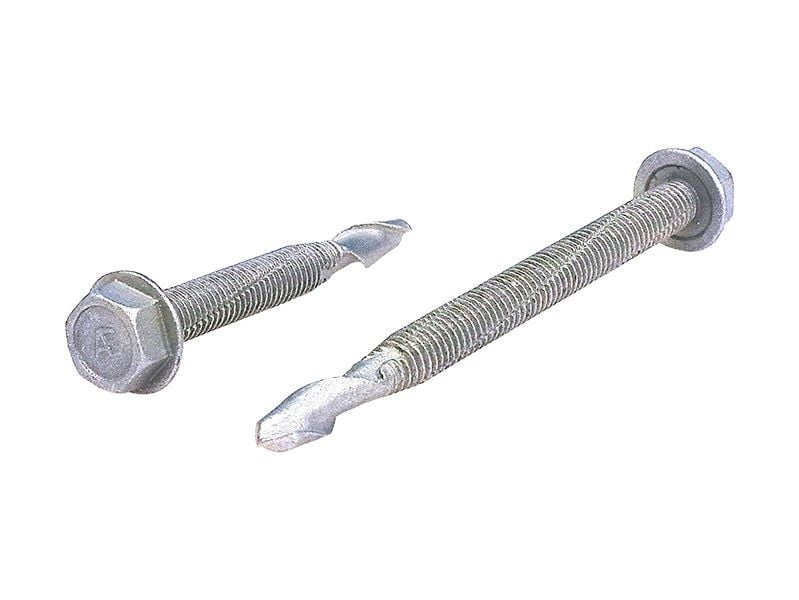

• Point Type: SQ800 self-drilling spiral point
• Material: Carbon steel
• Finish: Class 4 high density galvanised
• Screw Dia: 8.0mm
• Washer Dia: 17.3mm
• Head Height: 7.0mm

MATERIAL COATING

• Class 4 high density galvanized coating conforms to AS3566 and ASTM B695
• Coating thickness to 45 micron minimum
• No hydrogen embrittlement due to galvanising process
• Meets 1500hrs salt spray test
