SD500® Hex 12-24 Self Drilling Screws CL3
SD500® Hex 12-24 Self Drilling Screws CL3

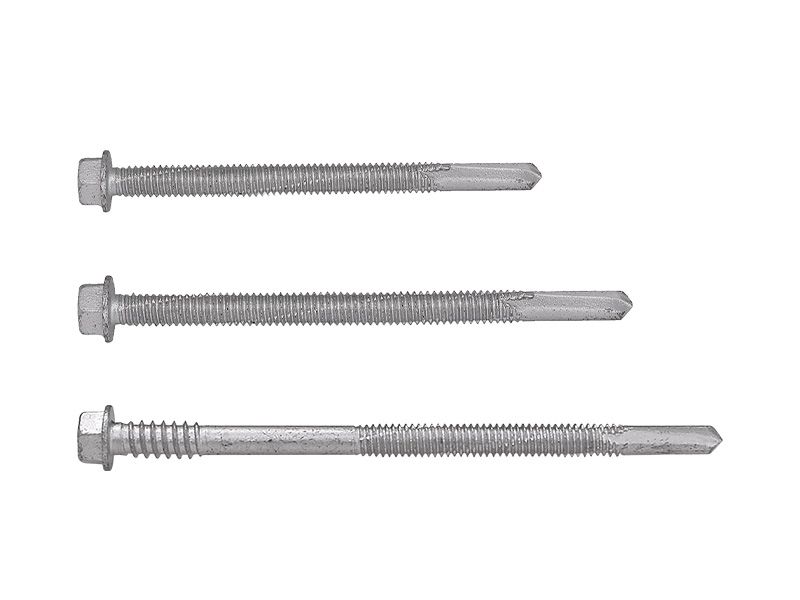

SD500® screws are a self drilling screw featuring a extended (no. 5) drill point for drilling through steel up to 12mm.
Designed to cut its own mating threads into the material to fasten securely in one action. You can ensure effective installation by completely drilling through your joining material allowing the drill point to be completely drilled through.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 4.5–12mm of steel
- Driver Type: 5/16 Hex Socket
- Installation Speed: 1800 RPM

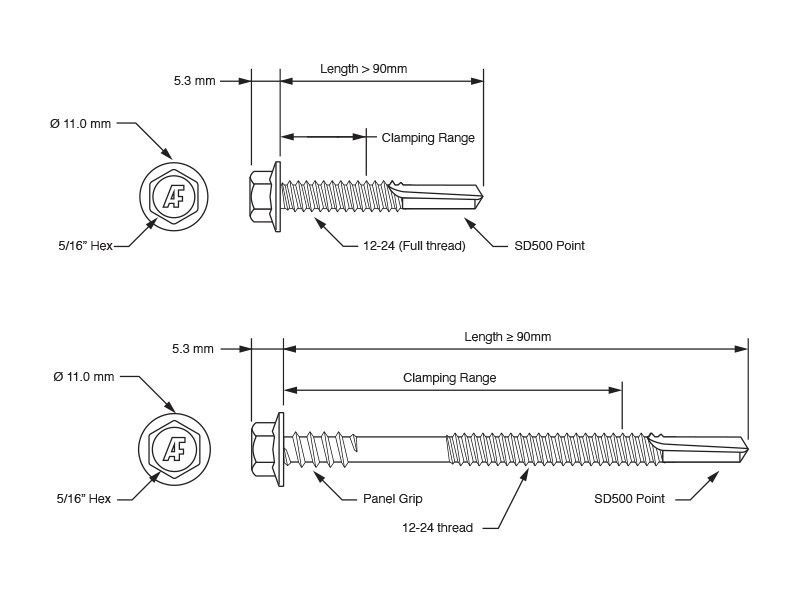

PHYSICAL CHARACTERISTICS
- Head Type: Hex Head
- Point Type: Self-Drilling No 5 Point
- Material: Carbon Steel
- Finish: Ruspert Class 3
- Head Dia: 11mm
- Head Height: 5.3mm
CORROSION RESISTANCE
Ruspert Class 3: external use in mild moderate industrial or marine environments. Corrosivity categories C2 and C3 classified accordance with ISO 9223. AS 2331.3.1 salt spray test for 1000hrs, DIN 50018 for 15 cycles (kesternich test).
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Class 3 (Mech. Gal) |
| Material Grade | Carbon Steel |
| Head Type | Hex Washer |
| Driver Type | Hex Sockets |
| Diameter / Gauge | 12g |
| Point Type | Drill Point No.5 |
| Thread Type | Fine |
| Application | Steel-to-Steel Self Drilling |
Technical Information
| SKU | Gauge x Length | Coating | Fix. Range | Thread |
|---|---|---|---|---|
| 1170.0120038 | 12-24 x 38mm | Class 3 | 12 / 15mm | Full |
| 1170.0120050 | 12-24 x 50mm | Class 3 | 12 / 27mm | Full |
| 1170.0120065 | 12-24 x 65mm | Class 3 | 12 / 42mm | Full |
| 1170.0120080 | 12-24 x 80mm | Class 3 | 12 / 57mm | Full |
| 1170.0120100 | 12-24 x 100mm | Class 3 | 12 / 77mm | Full |

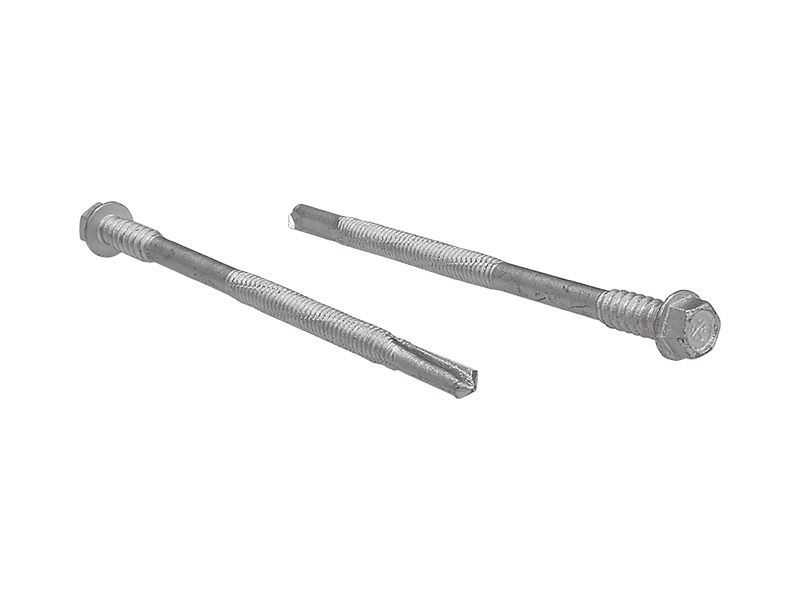

| 1170.0120125 | 12-24 x 125mm | Class 3 | 54 / 102mm | Part |
| 1170.0120145 | 12-24 x 145mm | Class 3 | 65 / 122mm | Part |
| 1170.0120205 | 12-24 x 205mm | Class 3 | 116 / 182mm | Part |
