Stainless Steel SQ500® Screws

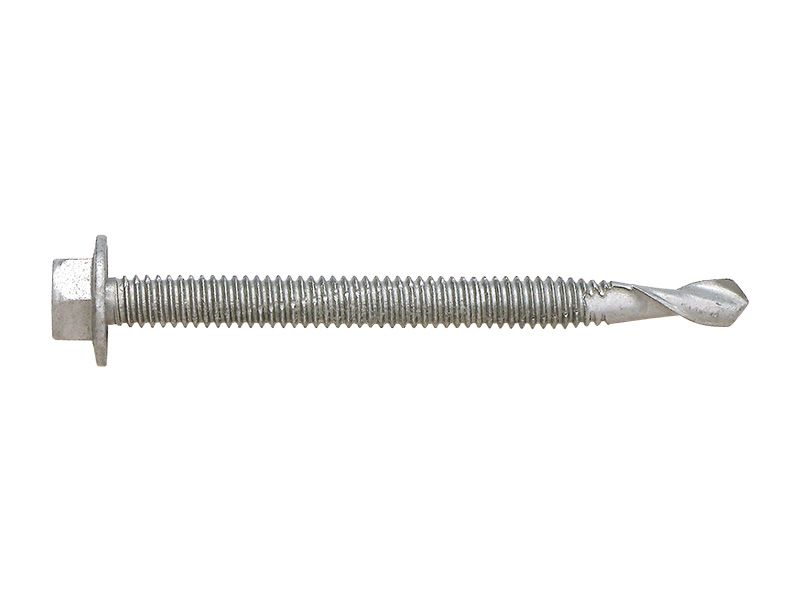

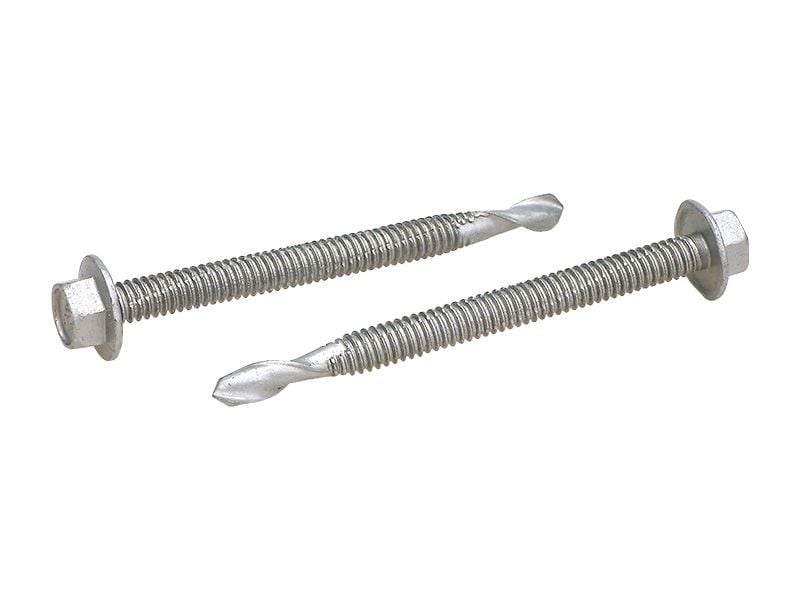

SQ500® Hex Head SD Spiral Point Screws Bimetal 316
One of the largest stainless steel self drillers available the bimetal SQ500® are a high performance self-drilling screws for connections to steel in high corrosive environments. These are larger screws with an increased drilling ability over common No.3 and No.5 drill points.
SQ500® screws feature a spiral drill point providing the capacity to drill through steel up to 12mm. The 6.2mm diameter screw has threads along the full length of the screw – this fine thread will cut its own mating threads into the material to fasten securely in a single action.
The high-density CL4 coating provides great surface protection in Australian outdoor coastal enviroment which aids the performance for these screws. The SQ500® is a high-grade 316 stainless steel material body and hardened carbon steel tip.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description

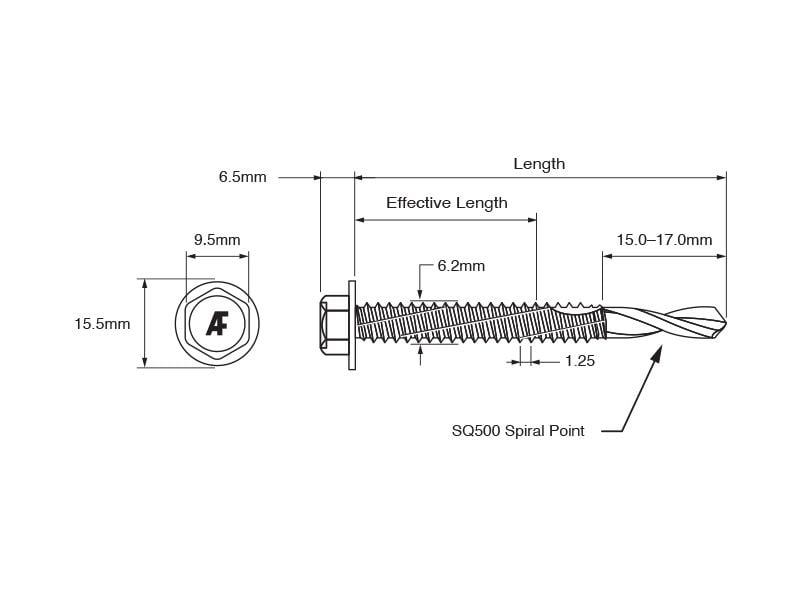

PHYSICAL CHARACTERISTICS
- Drill Cap.: 6.0 – 12.0mm steel
- Material: Bimetal (stainless steel 316 grade, heat treated alloy steel tip)
- Finish: Class 4 high density galvanised
- Screw Dia.: 6.2mm (14g)
- Washer Dia.: 15.5mm
- Head Height: 6.5mm
- Drill speed: 1,800 rpm max
- Driver: 10mm hex socket (3/8")
MATERIAL COATING
- Class 4 high density galvanized coating conforms to AS3566 and ASTM B695
- Coating thickness to 45 micron minimum
- No hydrogen embrittlement due to galvanising process
- Meets 1500hrs salt spray test
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | 316 Stainless Steel |
|---|---|
| Head Type | Hexagonal |
| Driver Type | Hex Sockets |
| Diameter / Gauge | 14g |
| Point Type | Spiral Drill Point |
Technical Information
| SKU | Item | Effective Length | Fix. Range | Material |
|---|---|---|---|---|
| 1933.0140050 | 14-20 x 50mm | 6 - 19mm | 19mm | Stainless Steel Bi-Metal 316 |
| 1933.0140075 | 14-20 x 75mm | 6 - 44mm | 44mm | Stainless Steel Bi-Metal 316 |
