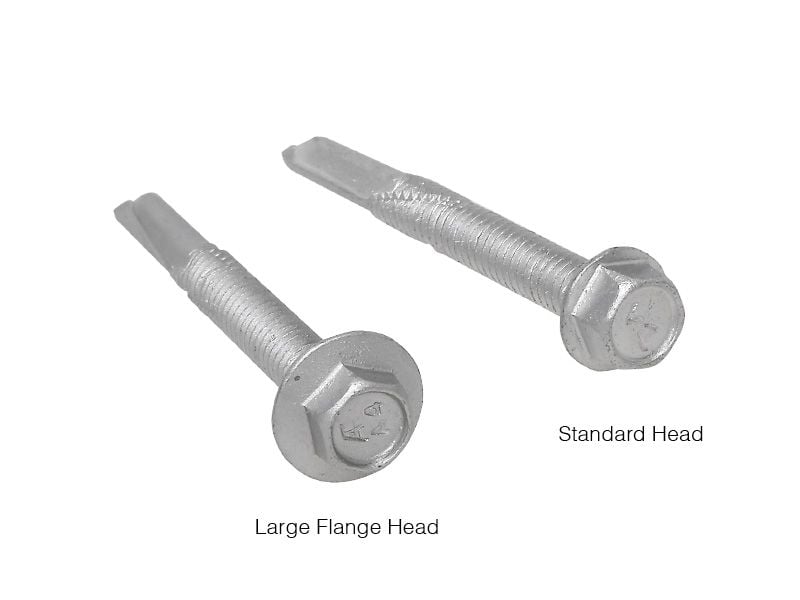

Large flange head series SD500® Self Drillers

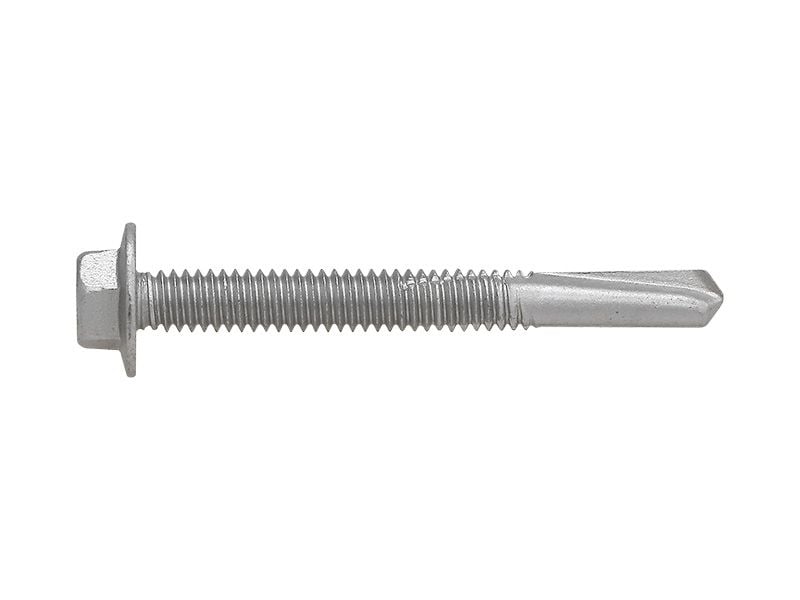

SD500® Large Flange Self Drilling Screws 316 Bimetal Stainless
The NEW large flange series SD500® hex self drilling screws with improve installation, less deformation to surface material same drilling capacity of steel up-to 12mm.
Our SD500® bimetal screws feature a hardened carbon steel drill tip and 316 grade stainless steel body and head. This gives the ultimate corrosion resistance in a self drilling screw that can be used in applications using variety of metals.
With a dual layer Ruspert surface coating there appearance will not appear to have a typical stainless steel look. This is simply part of the manufacturing process ensuring a high level of corrosion protection.
Drill capacity through steel: 6.00 – 12.00 mm
Proper installation should allow for the entire screw point to penetrate your joining material. Please select the correct length.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 4.5-12mm of Steel

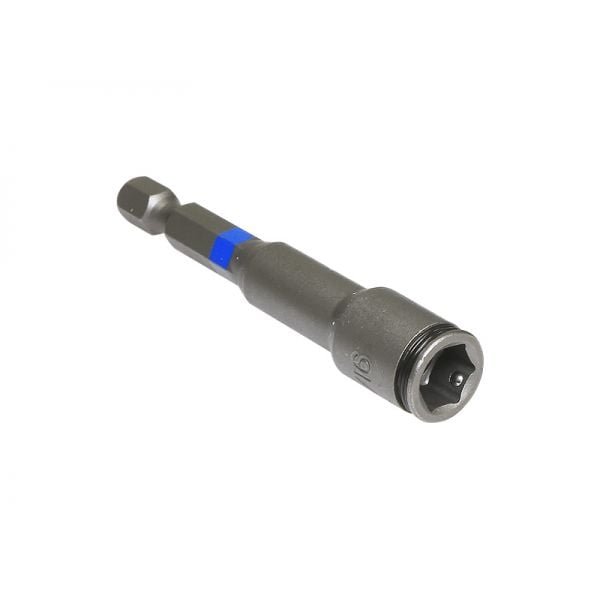

- Driver Type: 5/16 Hex Socket
- Installation Speed: 1800 RPM Max Drill Speed

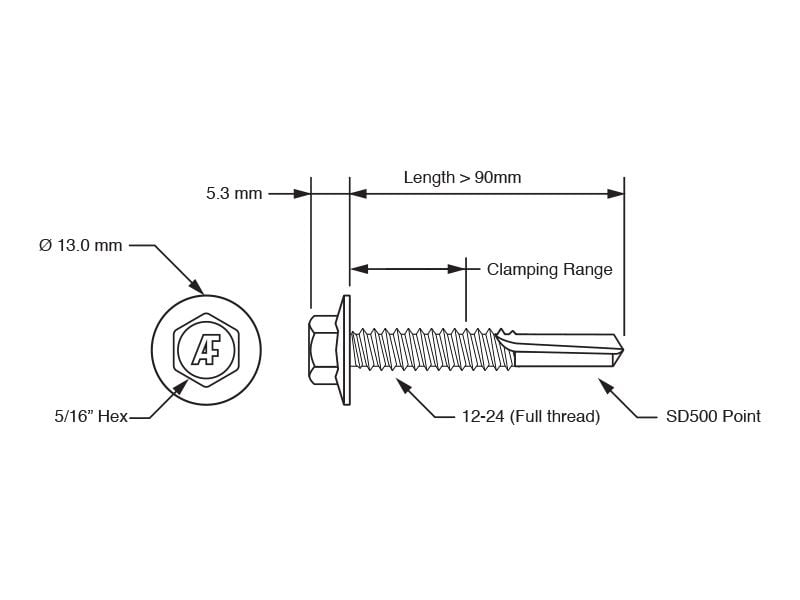

PHYSICAL CHARACTERISTICS
- Head Type: Hex
- Point Type: Self-Drilling No 5 Point
- Material: Bimetal (stainless steel 316 grade, heat treated alloy steel tip)
- Finish: Ruspert
- Head Flange Dia: 13mm
- Head Height: 5.3mm
CORROSION RESISTANCE
Austenitic stainless steel 316 grade with Ruspert coating. Ruspert coating is a high-grade metal surface technology that prevents surface corrosion. Consisting of a baked ceramic surface coating and a second metallic zinc layer, these layers are bonded together through chemical reactions producing a strong coating film.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Ruspert |
| Material Grade | Bimetal Stainless Steel |
| Head Type | Hex Washer |
| Driver Type | Hex Sockets |
| Diameter / Gauge | 12g |
| Point Type | Drill Point No.5 |
| Thread Type | Fine |
| For use with | Aluminium, Stainless Steel, Steel |
| Application | Steel-to-Steel Self Drilling |
| Use for | Facade & Cladding, HVAC, Marine & Pool Areas, Outdoor Structure, Window & Door Framing |
Technical Information
| SKU | Gauge x Length | Material | Fix. Range | Thread |
|---|---|---|---|---|
| 1931.0120038 | 12-24 x 38mm | Bimetal 316 | 12 / 15mm | Full |
| 1931.0120050 | 12-24 x 50mm | Bimetal 316 | 12 / 27mm | Full |
