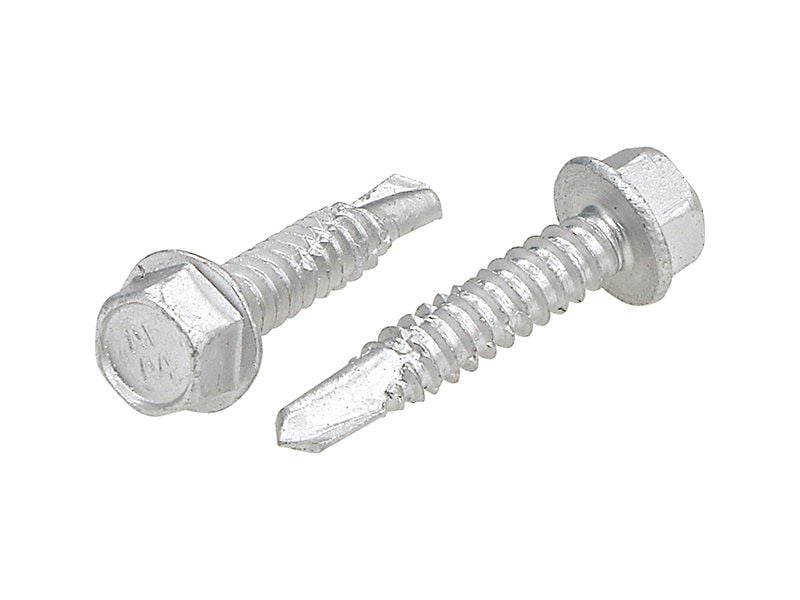

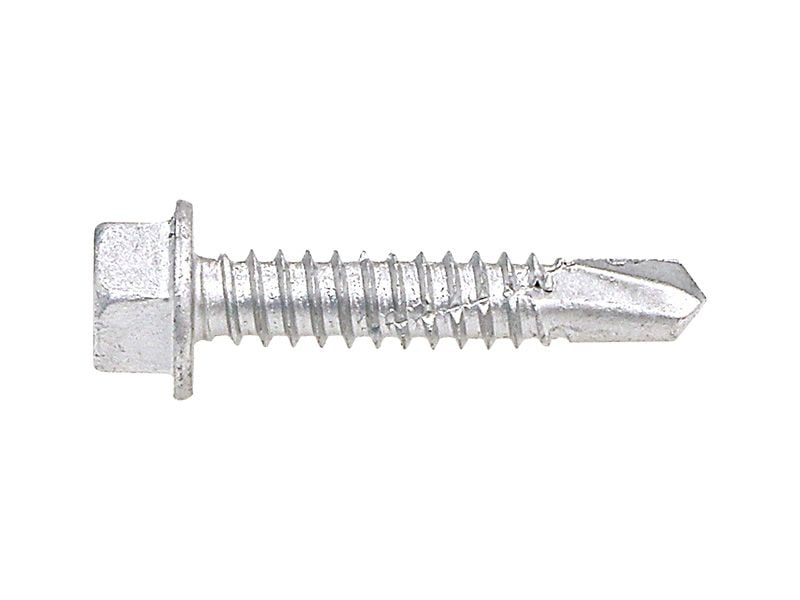

Hex Washer SD Screws Bimetal 316 Stainless
Hex Washer SD Screws Bimetal 316 Stainless
Our bimetal screws feature heat treated hardened carbon drill tip with a stainless steel grade body and head.
This provides the ultimate corrosion resistance in a self drilling screw whilst still maintaining drilling performance.
Our bimetal screws have a dual layer Ruspert surface coating therefore the surface will not appear to have a typical stainless steel look. This is simply part of the manufacturing process ensuring a high level of corrosion protection.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 10g (1-4mm), 12g (1.5-5mm), 14g (2-6mm)
- Driver Type: 10-12g (5/16 Hex Socket), 14g (3/8 Hex Socket)
- Installation Speed: 2400 RPM Max Drill Speed

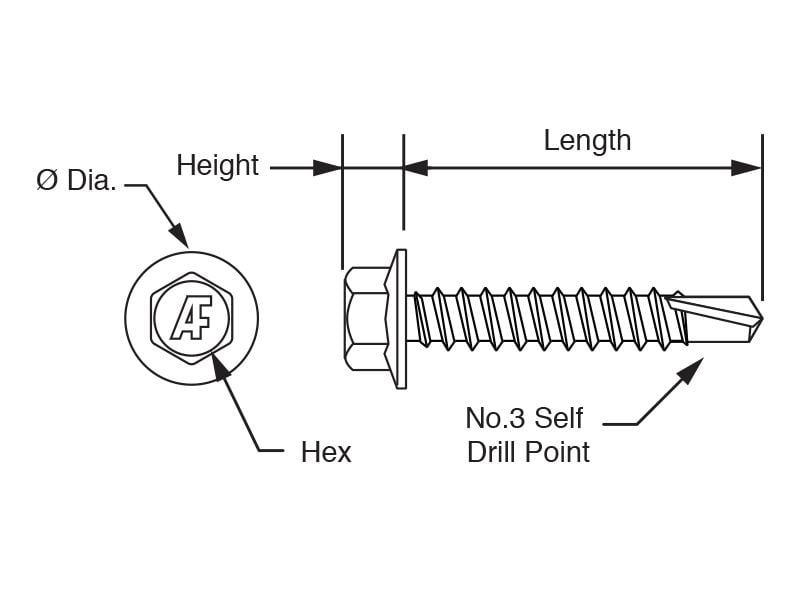

PHYSICAL CHARACTERISTICS
- Head Type: Hex Head
- Point Type: Self-drilling
- Material: Bimetal (stainless steel 316 grade, heat treated alloy steel tip)
- Finish: Ruspert
- Head Dia: 10g (10mm), 12g (10.6mm), 14g (12.6mm)
- Head Height: 10g (4.5mm), 12g (5.3mm), 14g (6.2mm)
CORROSION RESISTANCE
Austenitic stainless steel 300 grade with Ruspert coating. Ruspert coating is a high-grade metal surface technology that prevents surface corrosion. Consisting of a baked ceramic surface coating and a second metallic zinc layer, these layers are bonded together through chemical reactions producing a strong coating film.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Ruspert |
| Material Grade | Bimetal Stainless Steel |
| Head Type | Hex Washer |
| Driver Type | Hex Sockets |
| Diameter / Gauge | 10g, 12g, 14g |
| Point Type | Drill Point No.3 |
| Thread Type | Coarse |
| Application | Steel-to-Steel Self Drilling |
Technical Information
| SKU | Gauge x Length | Material | Driver Bit | Thread Length | Gauge x Length |
|---|---|---|---|---|---|
| 1118.0120025 | 12-14 x 25mm | Bimetal 316 | 5/16" Hex | Full | 12-14 x 25mm |
| 1118.0120038 | 12-14 x 38mm | Bimetal 316 | 5/16" Hex | Full | 12-14 x 38mm |
| 1118.0120045 | 12-14 x 45mm | Bimetal 316 | 5/16" Hex | Full | 12-14 x 45mm |
| 1118.0140025 | 14-14 x 25mm | Bimetal 316 | 5/16" Hex | Full | 14-14 x 25mm |
| 1118.0140032 | 14-14 x 32mm | Bimetal 316 | 5/16" Hex | Full | 14-14 x 32mm |
| 1118.0140050 | 14-14 x 50mm | Bimetal 316 | 5/16" Hex | Full | 14-14 x 50mm |
| 1118.0140075 | 14-14 x 75mm | Bimetal 316 | 5/16" Hex | Full | 14-14 x 75mm |
