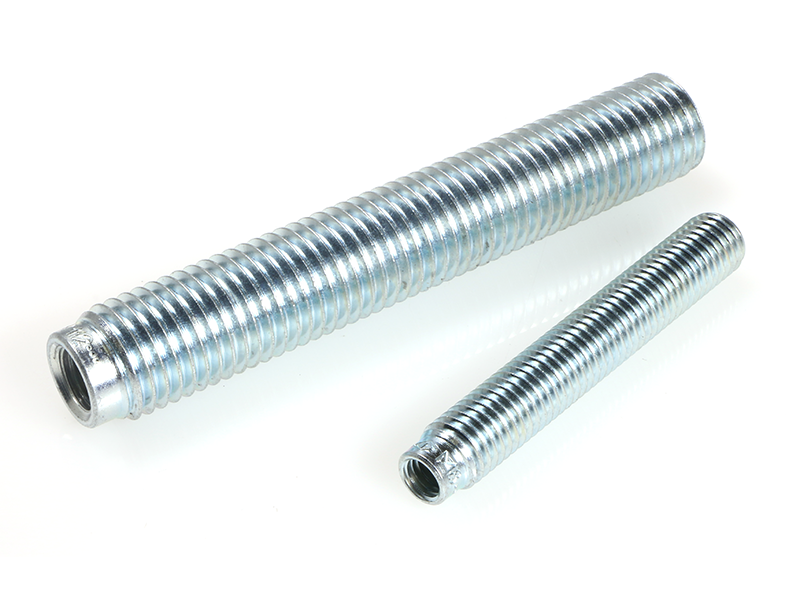

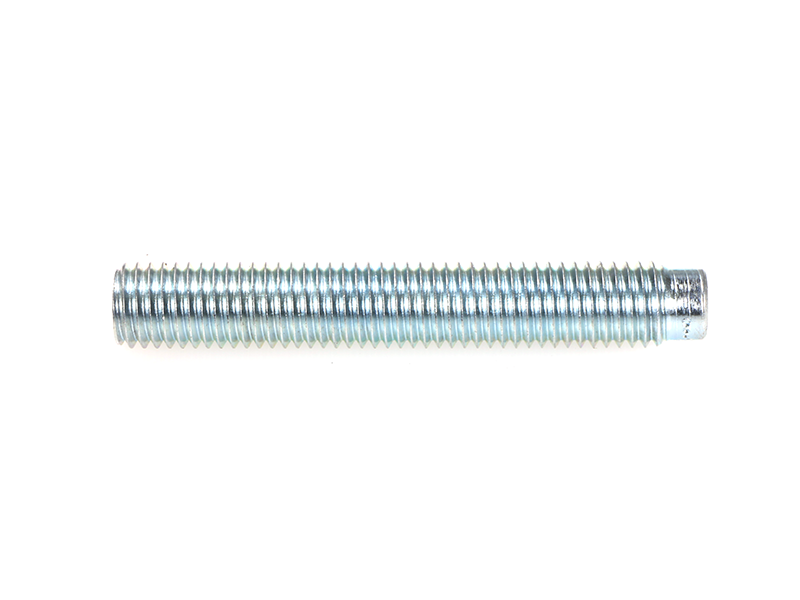

ITS-Z Chem Stud Internal Thread CL5.8 Zinc
ITS-Z Chem Stud Internal Thread CL5.8 Zinc
ITS-Z stud is an internally threaded chem stud which can be used when expansion anchors and screw-anchors cannot be selected and the fixing point must remain flush. Internally threaded studs use a metric thread and are used when the fixture or equipment is only temporary.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
USE:
An appropriate chemical adhesive must be selected for the application–zinc plated studs can be used with epoxy, vinylester or polyester injection systems. As they are a bonded anchor they are resistant to vibration making them ideal for holding down machinery.
- 5.8 high grade zinc plated carbon steel for internal use (away from coastal areas)
- Rolled external surface (false thread) provides an increased surface area for chemical adhesive to bond too
- Internally threaded for permanent or temporary fixing
- Ideal for securing equipment, machinery, steel channel or track
- For creating temporary fixing points using metric bolts
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Carbon Steel |
| Coating & Plating | Zinc Clear |
| Diameter / Gauge | M8, M10, M12, M16 |
| Thread Type | Internal Thread |
| For use with | Concrete, Masonry Solid Block |
| Setting Conditions | Diamond Core Drill, Dustless Drilling, Hammer Drilling, Close to Edge, Overhead |
| Use for | Critical Anchoring, Handrails & Balustrade, HVAC, Structural Fixing, Suspension & Gantry |
Technical Information
| SKU | Select Size | Drill Dia. | Int. Thread Length | Item |
|---|---|---|---|---|
| 1026.0080080 | M8 (20) x 80mm ITS-Z | 14mm | 20mm | M8 (20) x 80mm ITS-Z |
| 1026.0100100 | M10 (25) x 100mm ITS-Z | 18mm | 25mm | M10 (25) x 100mm ITS-Z |
| 1026.0120125 | M12 (30) x 125mm ITS-Z | 22mm | 30mm | M12 (30) x 125mm ITS-Z |
| 1026.0160170 | M16 (35) x 170mm ITS-Z | 28mm | 35mm | M16 (35) x 170mm ITS-Z |
