HYDRAJAWS® M35+ Accessories

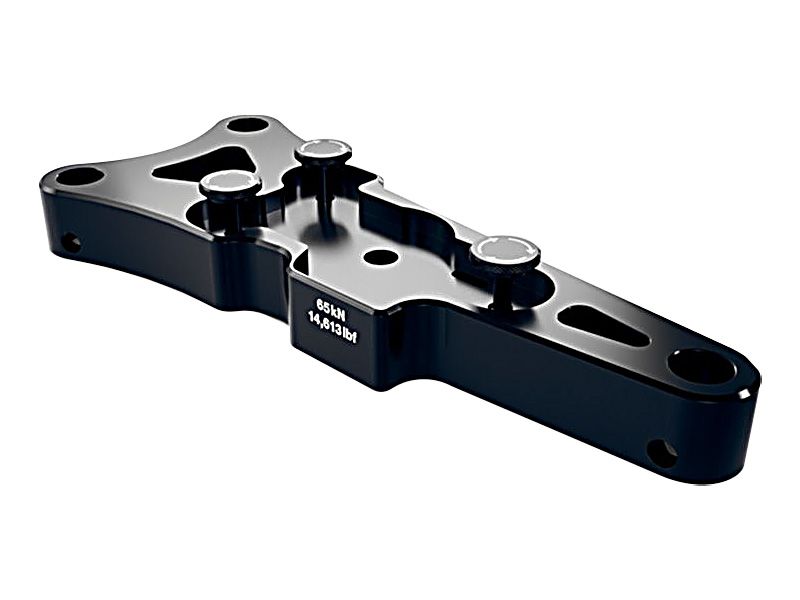

M35+ Large Bridge 310mm Span
The M35+ large bridge is rated to a 65kN SWL and extends the standard M35+ footprint to 310mm. The standard bridge and M35+ test cell integrated directly within this bridge.
You can further increase the clearance with optional leg height extensions, these adapt to your existing telescopic legs.
Both the large bridge and extension legs are included in the M35+ Pro Kit.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
Technical Information
| SKU | Item | Int. Span | Load Cap. | Footprint |
|---|---|---|---|---|

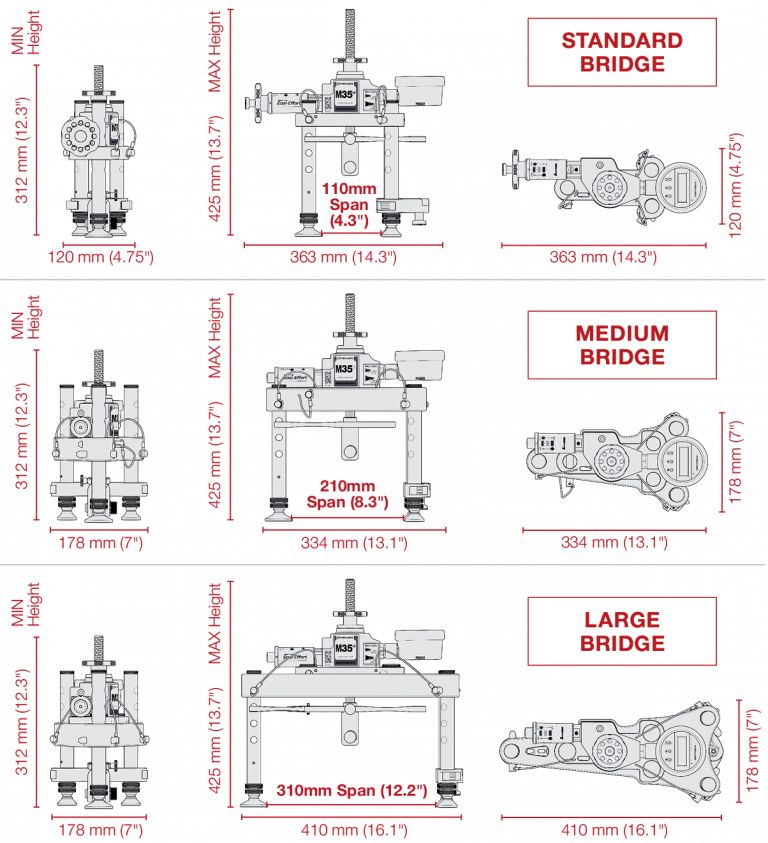

| 1904.3500302 | M35+ Large Bridge | 310mm | 0-65kN | 410 x 178mm |
Documents
