SCM-S Chem Stud 316 Stainless

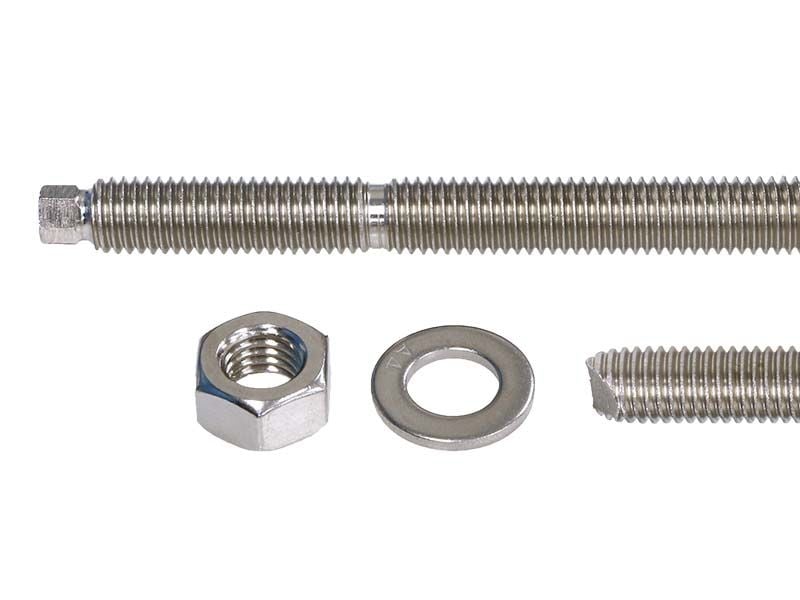

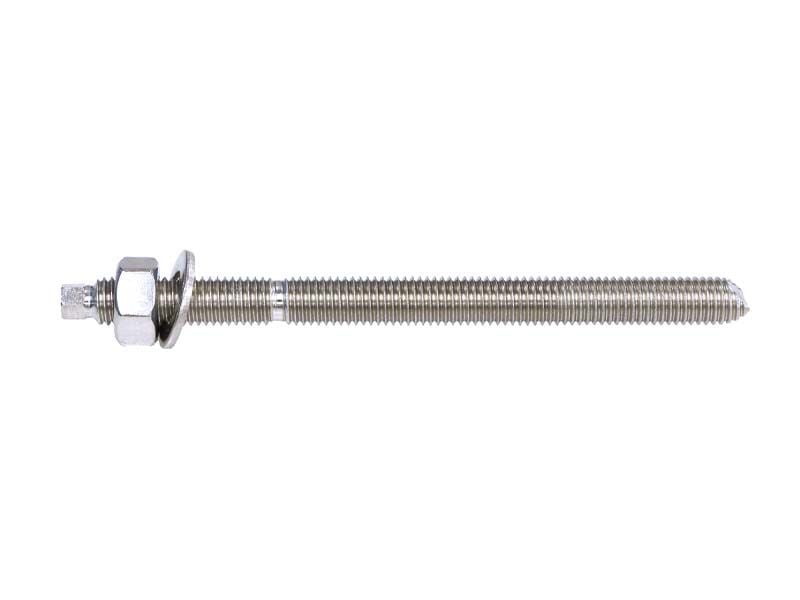

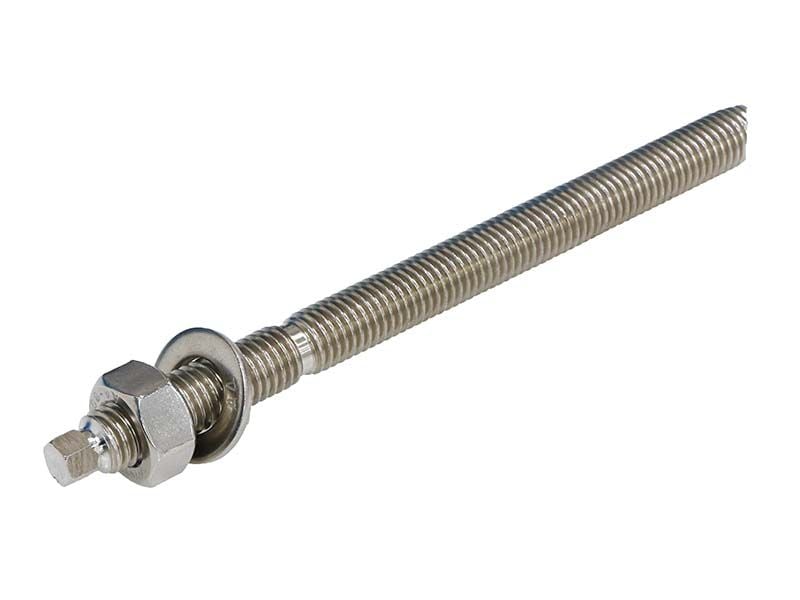

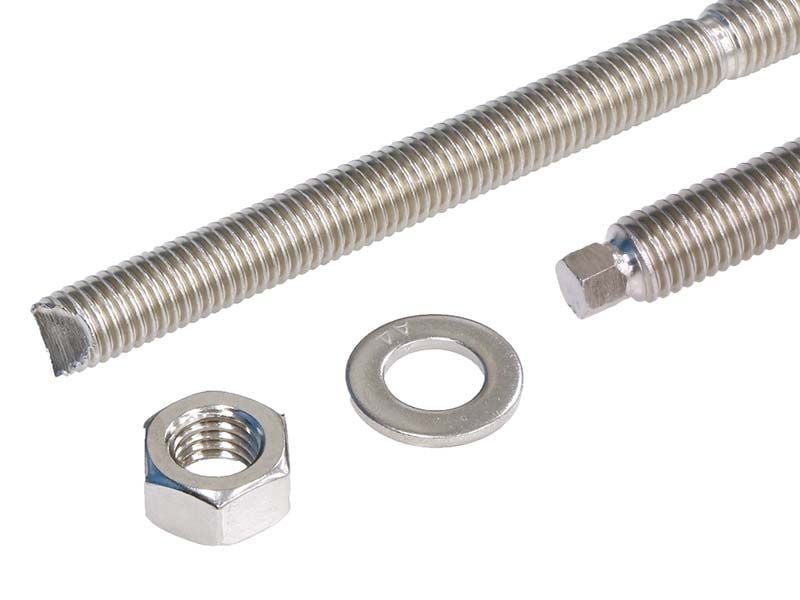

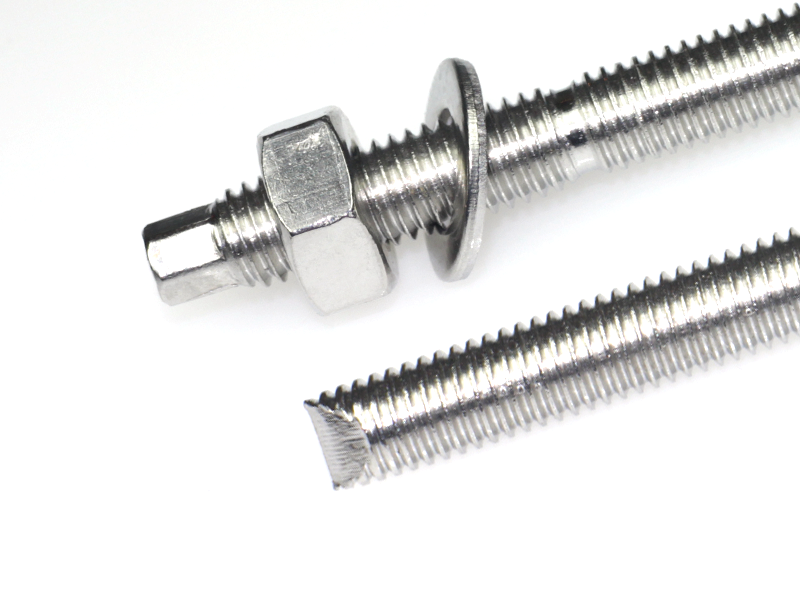

These are stainless steel chem anchor studs for use with glass capsule chemical adhesive. The chisel point point breaks the glass capsule (within the embedment) in one clean and simple action, activating the chemical. Designed as a 'spin-in' stud type – hex head drive assists with ease of installation.

316 (A4-70) stainless steel material grade.
Nut-setter to suit included in box

SKU SCM-S

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
M8 x 110mm Stainless Chem Stud Anchor Chisel Point (hex head) 316 SS From $42.24
M10 x 130mm Stainless Chem Stud Anchor Chisel Point (hex head) 316 SS From $59.42
M12 x 160mm Stainless Chem Stud Anchor Chisel Point (hex head) 316 SS From $66.01
M16 x 190mm Stainless Chem Stud Anchor Chisel Point (hex head) 316 SS From $118.81
M20 x 260mm Stainless Chem Stud Anchor Chisel Point (hex head) 316 SS From $120.93
M24 x 300mm Stainless Chem Stud Anchor Chisel Point (hex head) 316 SS From $164.48

Build A Quote?

Store Item

SKU:

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Delivery	SHIPS IN 1 - 2 DAYS

Technical Information

SKU	Dia. x Length	Fix. Max	Embed Min.	Fixture Max.	Description
1055.0080110	M8 x 110mm	17mm	80mm	17mm	M8 x 110mm (nut/washer)
1055.0100130	M10 x 130mm	25mm	90mm	25mm	M10 x 130mm (nut/washer)
1055.0120160	M12 x 160mm	33mm	110mm	33mm	M12 x 160mm (nut/washer)
1055.0160190	M16 x 190mm	44mm	125mm	44mm	M16 x 190mm (nut/washer)
1055.0200260	M20 x 260mm	64mm	170mm	64mm	M20 x 260mm (nut/washer)
1055.0240300	M24 x 300mm	56mm	210mm	56mm	M24 x 300mm (nut/washer)
