PBI Brace-It Anchor AS 3850.1
PBI Brace-It Anchor AS 3850.1
When an ultra-heavy duty anchoring system is needed in construction, you need a high quality prop anchor option.
It is not only your good workmanship that secures the job, but the quality of your materials and safety precautions, too. On your site, particularly with tilt-up panel or prefab construction projects, you need the strength and durability of the right prop anchor. And the superior solution for your big job is PBI Brace-It, the product that every tradie worth their salt asks for.

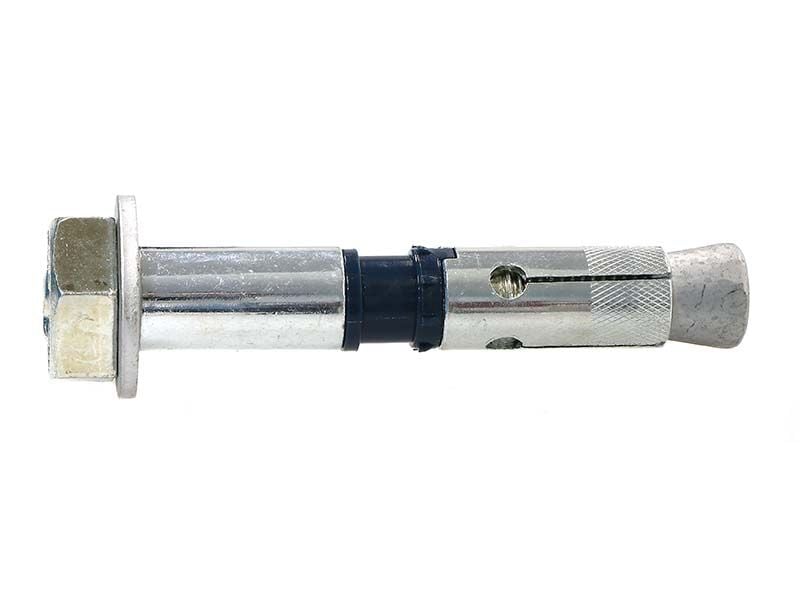

The PBI BRACE-IT Anchor is a heavy duty thick sleeve expansion anchor that is vibration resistant and removable. It can be used in concrete, stone and some types of solid brick and core filled block-work. It is suitable for applications including bracing of tilt-up panels, structural steel connections and machinery to concrete.
Enquiries? Get in touch with Allfasteners, Australia’s leaders in All Things Fixings, today.
Torque Setting M14: 150 Nm
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Allfasteners for All Forces
For ultra-heavy loads for which standard anchors won’t accommodate, you need ultra-heavy duty tools.
Made from high-tensile 8.8gr steel, PBI Brace-It structural anchors are also vibration resistant, keeping the integrity of the structure sound while machinery and heavy power tools perform essential tasks around the area. In other words, these anchors, despite the presence of vibration, will not move until you are ready for them to be removed.
To temporarily secure a prefab concrete panel, simply drill a hole in the masonry at the diameter specified, hammer the anchor through the fixing plate and secure with a torque-controlled socket wrench. The thick sleeve will expand and tighten against the inside of the drilled hole.
The PBI Brace-It prop anchor range is available in the following configurations:
- M12 – 90 Nm torque setting, 18mm socket
- M14 – 150 Nm torque setting, 30mm socket
Benefits Summary:
- Expansion-type anchors for heavy loading
- Vibration resistant
- Fully Removable
- Ideal for use in reinforced concrete
- For most solid-type masonry
Ask About PBI Brace-It, the Professionals’ Prop Anchor
All enquiries about our range of anchors and fasteners are welcome at Allfasteners. Speak to one of our experts today.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | 8.8 Hi-Tensile Steel |
| Head Type | Hexagonal |
| Driver Type | Hex Sockets |
| For use with | Concrete |
| Setting Conditions | Hammer Drilling |
| Compliance | AS 3850.1 |
Technical Information
| SKU | Dia. x Length | Drill Dia. | Drill Dia. | Fixture Max. | Description |
|---|---|---|---|---|---|
| 1036.0140115 | 14 x 115mm | 20mm | 20mm | 20mm | 14 x 115mm |
