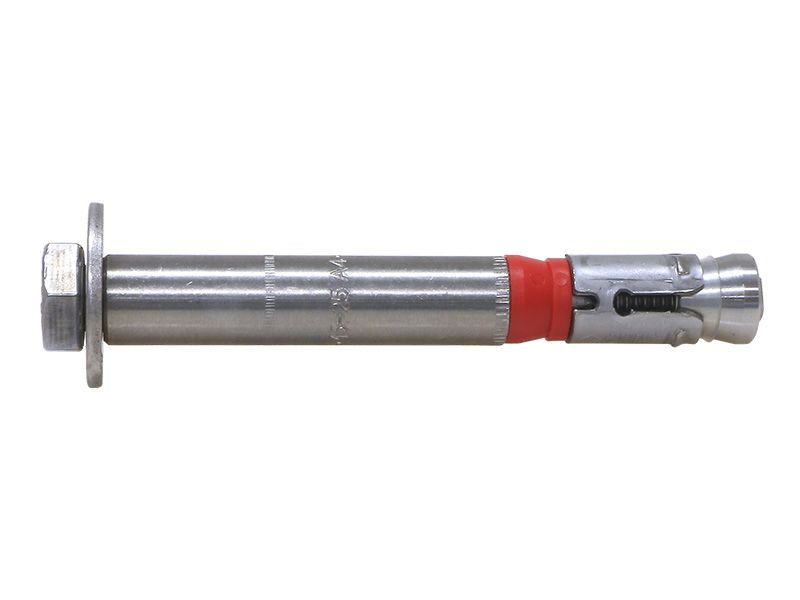

HLA-S1 High Load Structural Expansion Anchor

A4 Gr316 STAINLESS STEEL

High-loading expansion anchors are simple to install through fixing or prior to placement of fixing. HLA-S1 can be disassembled leaving the surface clear as the expander and cone remain in the hole. For the preferred method with precast concrete panels the HLA-S1 anchors can be used to secure brace-it prop support temporarily.

Other applications include fixing pillars and beams, machinery, shelves and scaffolding. And also where fire or seismic effects must be considered factors.

SKU HLA-S1

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
15-25 x 116mm HLA-S1 Seismic Rated Structural High Load Anchor Gr316 S/S From $832.00
15-45 x 136mm HLA-S1 Seismic Rated Structural High Load Anchor Gr316 S/S From $1,063.48
18-20 x 127mm HLA-S1 Seismic Rated Structural High Load Anchor Gr316 S/S From $1,093.18
18-40 x 147mm HLA-S1 Seismic Rated Structural High Load Anchor Gr316 S/S From $1,284.77
24-20 x 150mm HLA-S1 Seismic Rated Structural High Load Anchor Gr316 S/S From $1,087.62
24-50 x 180mm HLA-S1 Seismic Rated Structural High Load Anchor Gr316 S/S From $1,264.69

Build A Quote?

Store Item

SKU:

Description

NCC Compliant AS 5216:2021

The ETA document meets anchor testing and reporting requirements of AS 5216:2021, essential for compliance with the NCC.

The ETA (Option 1) approved highload HLA-S1 anchor is a high-performance through fastening anchor with plastic compression ring and with a three part expansion sleeve. This allows for smaller spacing and edge distances with high loads. Through deeper setting, the variable anchorage depth of HLA-S1 anchors allows higher permissible shear loads in many cases, extending its range of possible uses.

Anchors are also approved for use under seismic actions C1 and C2.

ADVANTAGES

High tension and shear loads
Variable anchoring depths for even higher shear loads
Can be dismantled flush with surface (only the cone and expansion sleeve remain in the drill-hole)
Smaller spacing and edge distances
Fire protection approved
Approved to use under seismic action according to the performance category C1& C2

APPLICATIONS

Medium to highload anchoring in cracked and non-cracked concrete, e.g. trusses, railings, machines, scaffolding and consoles.

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Material Grade	316 Stainless Steel
Head Type	Hexagonal
Driver Type	Hex Sockets
For use with	Concrete (cracked), Concrete (un-cracked)
Setting Conditions	Hammer Drilling, Overhead
Approvals & Documents	ETA Certification, Fire Resistance
Compliance	AS 5216:2021, 100 Year Design Life , Cyclic Loads, Seismic C1 & C2, Swiss Shock Load Approval, VicRoads BTN 008
Software	AFOS® Anchor Design Software

Technical Information

SKU	Item	Drill ø	Max. Fixture, t_fix	Seismic C1 / C2
1022.0150116	15-25 x 116mm HLA-S1	15mm	25mm	✓ / ✓
1022.0150136	15-45 x 136mm HLA-S1	15mm	45mm	✓ / ✓
1022.0180127	18-20 x 127mm HLA-S1	18mm	20mm	✓ / ✓
1022.0180147	18-40 x 147mm HLA-S1	18mm	40mm	✓ / ✓
1022.0240150	24-20 x 150mm HLA-S1	24mm	20mm	✓ / ✓
1022.0240180	24-50 x 180mm HLA-S1	24mm	50mm	✓ / ✓
