Class 1 metal-to-metal screws for internal use.

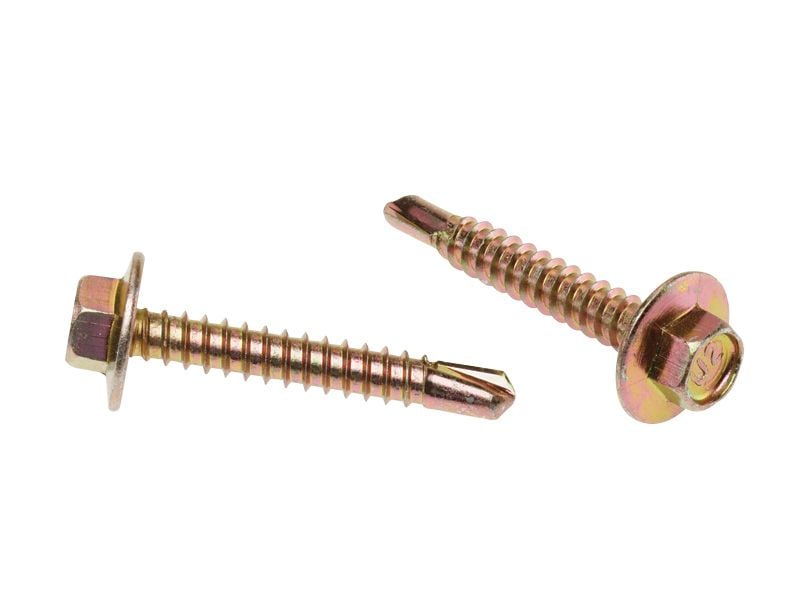

Hex Washer Head SD Screws CL1 Zinc Plated
- Class 1 electroplated zinc coating for internal dry fixings
- Drill point screws for easy self drilling in light gauge steel
- Larger flange washer head provides better distribution of load to the surface
- Hex washer head screws minimise damage to the fixed surface with larger contact area
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 10g (0.75-3.5mm of steel), 12g (1-5mm of Steel)
- Driver Type: 10g, 12g (5/16 Hex Socket)
- Installation Speed: 2300-2500 RPM Max Drill Speed
PHYSICAL CHARACTERISTICS
- Head Type: Hex Washer
- Point Type: Self Drilling Point
- Material: Carbon Steel
- Finish: Zinc Yellow
- Head Dia: 10g (11.2m), 12g (14.3mm)
- Head Height: 10g (4.7m), 12g (5.2mm)
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Zinc Yellow |
| Material Grade | Carbon Steel |
| Head Type | Hex Washer |
| Driver Type | Hex Sockets |
| Diameter / Gauge | 10g, 12g |
| Point Type | Drill Point No.3 |
| For use with | Sheet Metal, Steel |
| Application | Self Driller, Steel-to-Steel Self Drilling |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Thread Length |
|---|---|---|---|---|
| 1115.0100016 | 10-16 x 16mm | Zinc | 5/16: Hex | Full |
| 1115.0100025 | 10-16 x 25mm | Zinc | 5/16" Hex | Full |
| 1115.0120020 | 12-14 x 20mm | Zinc | 5/16" Hex | Full |
