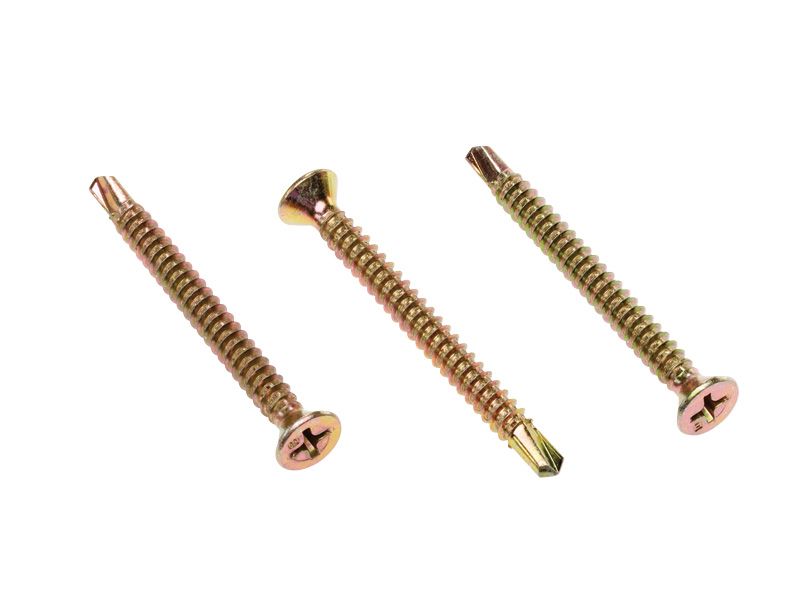

Countersunk Self Drilling Screws Zinc Yellow
Countersunk Self Drilling Screws Zinc Yellow
Countersunk self drilling screws will sit flush with the surface, lengths represent the entire screw length. While self drillers can drill through steel without first drilling, when joining timber to steel it is recommend to drill and countersink the timber surface before fixing off.
Screws are electroplated zinc yellow and should be used for closed or internal dry conditions.
Install with a quality Phillips drill bit and drill driver.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 10g (0.75-3.5mm of steel), 12g (1.2-5mm of steel)
- Driver Type: Philips P3
- Installation Speed: 2300-2500 RPM Max Drill Speed

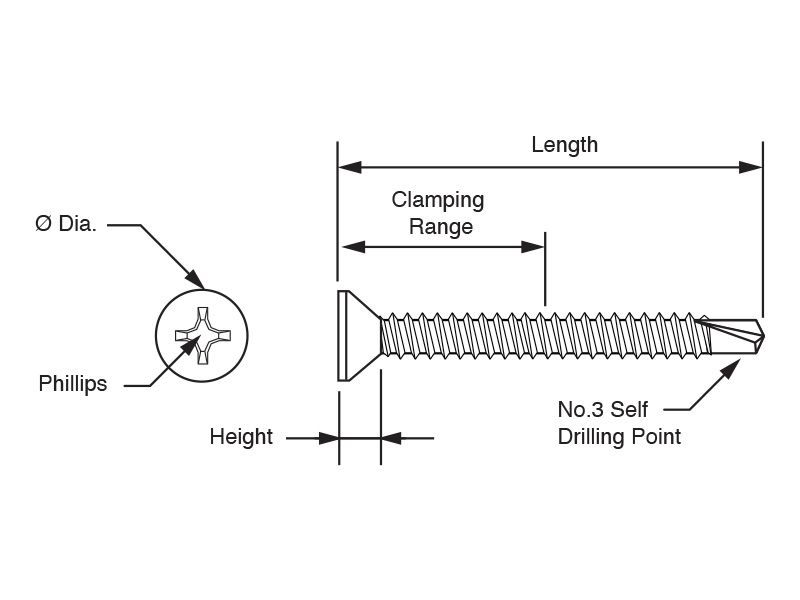

PHYSICAL CHARACTERISTICS
- Head Type: Countersunk
- Point Type: Self Drilling #3 point
- Material: Carbon Steel
- Finish: Zinc – Yellow
- Head Dia: 10g (9.2mm), 12g (10.8mm)
- Head Height: 10g (3.7mm), 12g (5mm)
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Zinc Yellow |
| Material Grade | Carbon Steel |
| Head Type | Countersunk |
| Driver Type | Philips Bit |
| Diameter / Gauge | 10g, 12g |
| Point Type | Drill Point No.3 |
| Application | Steel-to-Steel Self Drilling |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Thread Type |
|---|---|---|---|---|
| 1104.0100030 | 10-16 x 30mm | Zinc Yellow | Ph2 | Coarse |
| 1104.0100040 | 10-16 x 40mm | Zinc Yellow | Ph2 | Coarse |
| 1104.0100050 | 10-16 x 50mm | Zinc Yellow | Ph2 | Coarse |
| 1104.0100065 | 10-16 x 65mm | Zinc Yellow | Ph2 | Coarse |
| 1106.0100025 | 10-24 x 25mm | Zinc Yellow | Ph2 | Fine |
| 1106.0100030 | 10-24 x 30mm | Zinc Yellow | Ph2 | Fine |
| 1106.0100040 | 10-24 x 40mm | Zinc Yellow | Ph2 | Fine |
| 1106.0100050 | 10-24 x 50mm | Zinc Yellow | Ph2 | Fine |
| 1106.0100065 | 10-24 x 65mm | Zinc Yellow | Ph3 | Fine |
| 1104.0120050 | 12-14 x 50mm | Zinc Yellow | Ph2 | Coarse |
| 1104.0120065 | 12-14 x 65mm | Zinc Yellow | Ph2 | Coarse |
| 1106.0120075 | 12-20 x 75mm | Zinc Yellow | Ph3 | Fine |
| 1106.0120100 | 12-20 x 100mm | Zinc Yellow | Ph3 | Fine |
