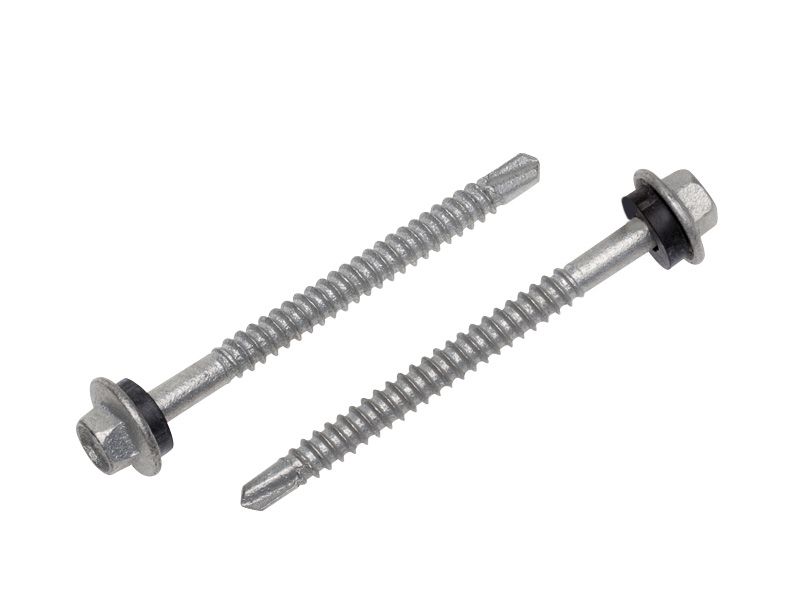

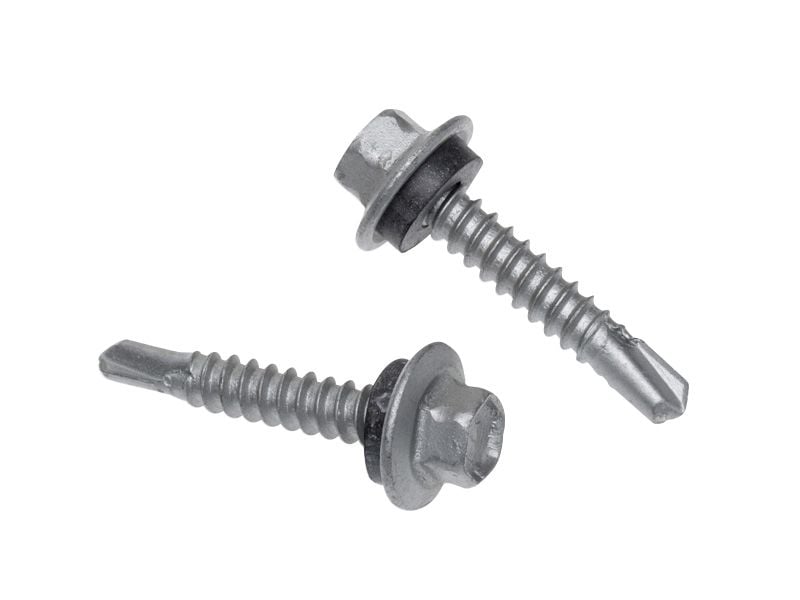

Hex Washer SD fitted with neo weather seal washer.
Hex Washer Head Neo Washer SD Screws CL4 Galvanised
Trade quality hex washer head galvanised screws offer, a class 4 surface protection for external use and fitted neo weather sealing washer. This is the preferred option in applications such as roofing or cladding with the neo washer under slight pressure creating a weather seal and prevents damage to the material being fixing. Is is recommend to not over tighten the screw to avoid splitting the neo.
Our washer head self drillers provide a larger bearing surface over other hex head screws, this better distributes the load to the contact surface with the integrated washer head and neo.
Also available WITHOUT neo sealing washers for general metal-to-metal or timber-to-metal application – click here.
A good self drilling metal-to-metal screw with high pull out strength and positive intallation under high torque.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 10g (0.75-3.5mm), 12g (1-5mm), 14g (1.2-5mm)
- Driver Type: 10g,12g (5/16 Hex Socket), 14g (3/8 Hex Socket)
- Installation Speed: 2300-2500 RPM Max Drill Speed

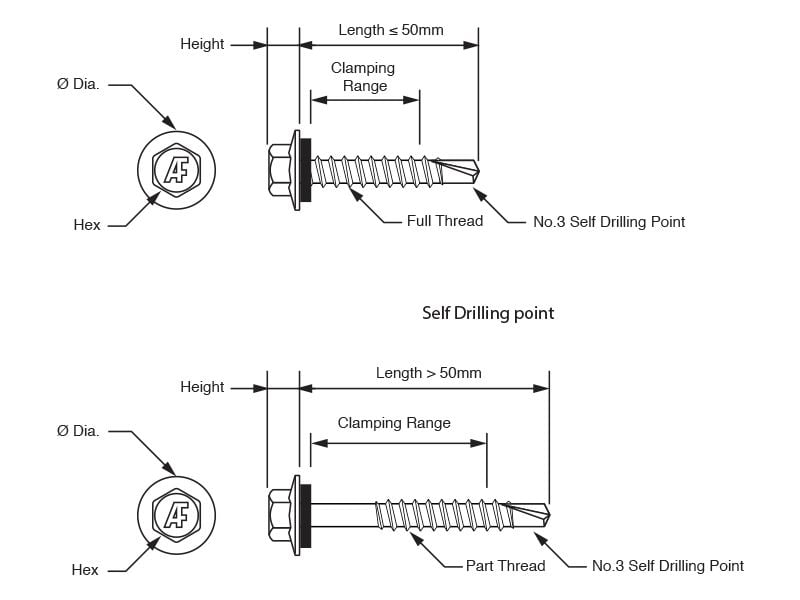

PHYSICAL CHARACTERISTICS
- Head Type: Hex Head
- Point Type: Self Drilling point
- Material: Carbon Steel
- Finish: Class 3/4 Mechanical Galvanised
- Head Dia: 10g (11.3mm), 12g (14.3mm), 14g (14.5mm)
- Head Height: 10g (5.5mm), 12g (6mm), 14g (6.5mm)
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Galvanised |
| Material Grade | Carbon Steel |
| Head Type | Hex Sealing Washer |
| Driver Type | Hex Sockets |
| Diameter / Gauge | 10g, 12g, 14g |
| Point Type | Drill Point No.3 |
| Thread Type | Coarse |
| For use with | Sheet Metal, Steel |
| Application | Self Driller, Steel-to-Steel Self Drilling |
| Use for | Facade & Cladding, Framing & Truss, HVAC, Outdoor Structure, Roofing & Plumbing |
Technical Information
| SKU | Gauge x Length | Coating | Driver Bit | Thread Length |
|---|---|---|---|---|
| 1113.0100016 | 10-16 x 16mm | Class 3 | 5/16" Hex | Full |
| 1113.0100025 | 10-16 x 25mm | Class 3 | 5/16" Hex | Full |
| 1113.0120020 | 12-14 x 20mm | Class 3 | 5/16" Hex | Full |
| 1113.0120035 | 12-14 x 35mm | Class 4 | 5/16" Hex | Full |
| 1113.0120055 | 12-14 x 55mm | Class 4 | 5/16" Hex | Part |
| 1113.0120065 | 12-14 x 65mm | Class 4 | 5/16" Hex | Part |
| 1113.0120075 | 12-14 x 75mm | Class 4 | 5/16" Hex | Part |
| 1113.0140050 | 14-10 x 50mm | Class 4 | 3/8" Hex | Full |
| 1113.0140065 | 14-10 x 65mm | Class 4 | 3/8" Hex | Part |
| 1113.0140075 | 14-10 x 75mm | Class 4 | 3/8" Hex | Part |
| 1113.0140095 | 14-10 x 95mm | Class 4 | 3/8" Hex | Part |
