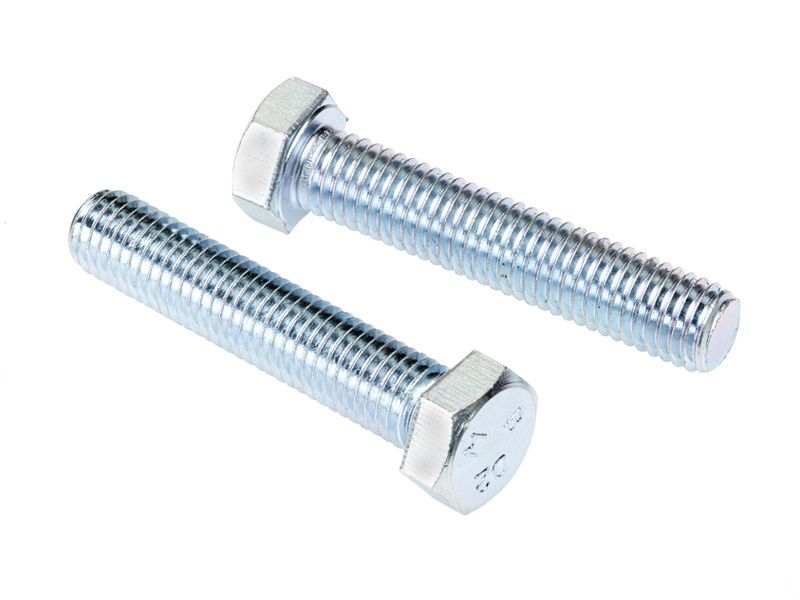

Hex Set Screw 4.6 Mild-Steel Zinc Metric Full-Thread
Hex Set Screw 4.6 Mild-Steel Zinc Metric ISO4017/AS1111.2
- 4.6 mild-steel (low carbon) bolts finished in electroplated zinc coating
- Fully threaded to be received into the corresponding tapped component using a metric thread
- No unthreaded portion on the shank
We also have a range of hex head mild-steel bolts that are supplied with hex nuts. Please note that these are part-threaded see 4.6 hex bolt.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Set screws are not commonly supplied in assemblies or with nuts and washers. However, we have a range of washers and nuts to suit.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | 4.6 Mild Steel |
| Coating & Plating | Zinc Clear |
| Head Type | Hexagonal |
| Driver Type | Hex 1/2'' Socket Bit |
| Diameter / Gauge | M6, M8, M10, M12, M16, M20 |
| Thread Type | Metric |
Technical Information

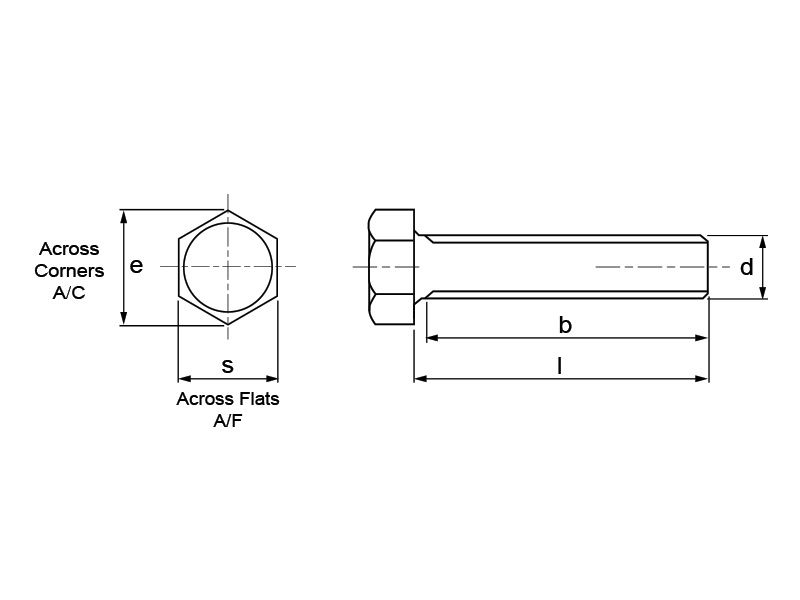

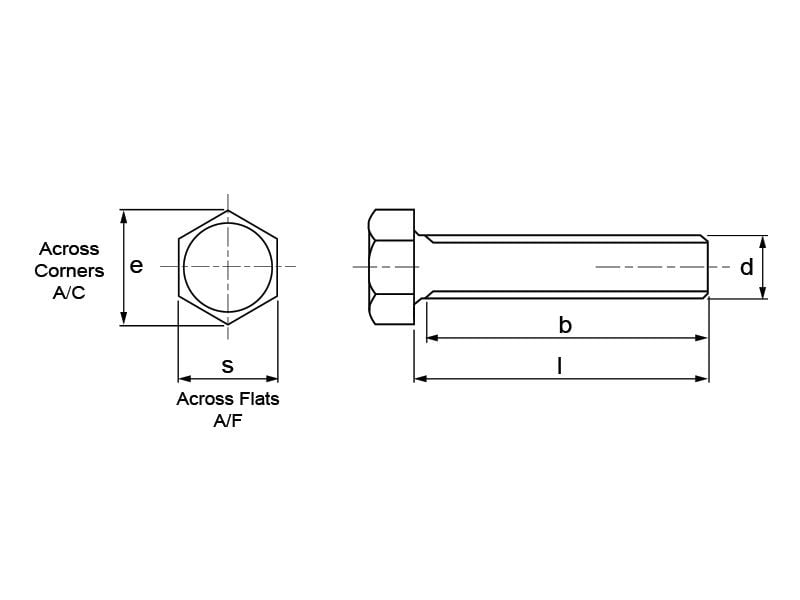

| SKU | Dia.-Pitch | Length | A/F [ s ] | A/C [ e ] | Thread Length [ b ] |
|---|---|---|---|---|---|
| 1531.0060010 | M6–1.0 | 10mm | 10mm | 11mm | 10mm |
| 1531.0060012 | M6–1.0 | 12mm | 10mm | 11mm | 12mm |
| 1531.0060016 | M6–1.0 | 16mm | 10mm | 11mm | 16mm |
| 1531.0060020 | M6–1.0 | 20mm | 10mm | 11mm | 20mm |
| 1531.0060025 | M6–1.0 | 25mm | 10mm | 11mm | 25mm |
| 1531.0060030 | M6–1.0 | 30mm | 10mm | 11mm | 30mm |
| 1531.0060035 | M6–1.0 | 35mm | 10mm | 11mm | 35mm |
| 1531.0060040 | M6–1.0 | 40mm | 10mm | 11mm | 40mm |
| 1531.0060050 | M6–1.0 | 50mm | 10mm | 11mm | 50mm |
| 1531.0060065 | M6–1.0 | 65mm | 10mm | 11mm | 65mm |
| 1531.0080012 | M8–1.25 | 12mm | 13mm | 15mm | 12mm |
| 1531.0080016 | M8–1.25 | 16mm | 13mm | 15mm | 16mm |
| 1531.0080020 | M8–1.25 | 20mm | 13mm | 15mm | 20mm |
| 1531.0080025 | M8–1.25 | 25mm | 13mm | 15mm | 25mm |
| 1531.0080030 | M8–1.25 | 30mm | 13mm | 15mm | 30mm |
| 1531.0080035 | M8–1.25 | 35mm | 13mm | 15mm | 35mm |
| 1531.0080040 | M8–1.25 | 40mm | 13mm | 15mm | 40mm |
| 1531.0080045 | M8–1.25 | 45mm | 13mm | 15mm | 45mm |
| 1531.0080050 | M8–1.25 | 50mm | 13mm | 15mm | 50mm |
| 1531.0080065 | M8–1.25 | 65mm | 13mm | 15mm | 65mm |
| 1531.0080075 | M8–1.25 | 75mm | 13mm | 15mm | 75mm |
| 1531.0100020 | M10–1.5 | 20mm | 16mm | 18mm | 20mm |
| 1531.0100025 | M10–1.5 | 25mm | 16mm | 18mm | 25mm |
| 1531.0100030 | M10–1.5 | 30mm | 16mm | 18mm | 30mm |
| 1531.0100035 | M10–1.5 | 35mm | 16mm | 18mm | 35mm |
| 1531.0100040 | M10–1.5 | 40mm | 16mm | 18mm | 40mm |
| 1531.0100045 | M10–1.5 | 45mm | 16mm | 18mm | 45mm |
| 1531.0100050 | M10–1.5 | 50mm | 16mm | 18mm | 50mm |
| 1531.0100065 | M10–1.5 | 65mm | 16mm | 18mm | 65mm |
| 1531.0100075 | M10–1.5 | 75mm | 16mm | 18mm | 75mm |
| 1531.0100100 | M10–1.5 | 100mm | 16mm | 18mm | 100mm |
| 1531.0120025 | M12–1.75 | 25mm | 18mm | 20mm | 25mm |
| 1531.0120030 | M12–1.75 | 30mm | 18mm | 20mm | 30mm |
| 1531.0120035 | M12–1.75 | 35mm | 18mm | 20mm | 35mm |
| 1531.0120040 | M12–1.75 | 40mm | 18mm | 20mm | 40mm |
| 1531.0120050 | M12–1.75 | 50mm | 18mm | 20mm | 50mm |
| 1531.0120065 | M12–1.75 | 65mm | 18mm | 20mm | 65mm |
| 1531.0120075 | M12–1.75 | 75mm | 18mm | 20mm | 75mm |
