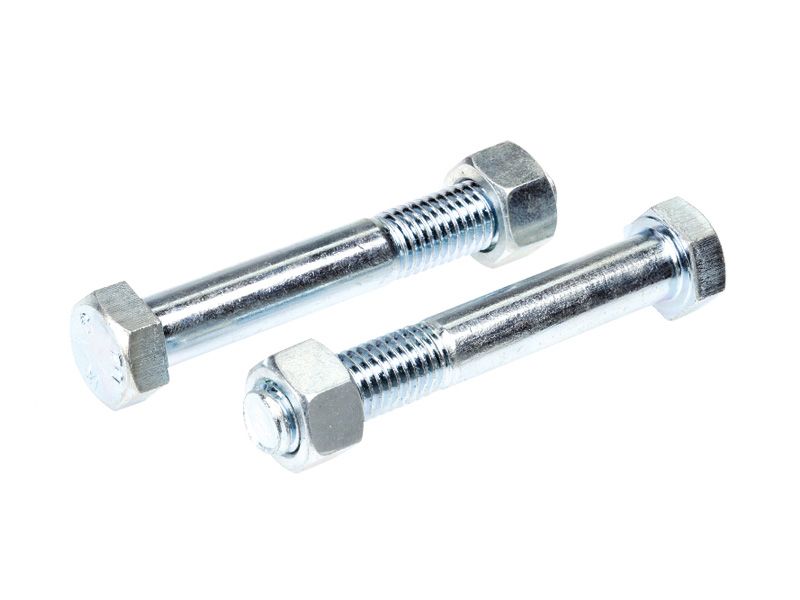

Hex Bolt & Nut 4.6 Mild-Steel Zinc Metric Part-Thread
Hex Bolt 4.6 Mild-Steel Zinc Metric ISO4014/AS1111.1
Zinc plated 4.6 mild-steel hex bolts are available in limited lengths. Generally for each thread size the longer lengths can be found here, these bolts will have a smooth section before the thread starts.
- 4.6 mild-steel hex bolts supplied with hex nuts
- Bolts are part thread
For 4.6 hex bolts in shorter lengths with full-thread see 4.6 set screws here.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | 4.6 Mild Steel |
| Coating & Plating | Zinc Clear |
| Head Type | Hexagonal |
| Driver Type | Hex Sockets |
| Diameter / Gauge | M8, M10, M12, M16 |
| Thread Type | Metric |
Technical Information

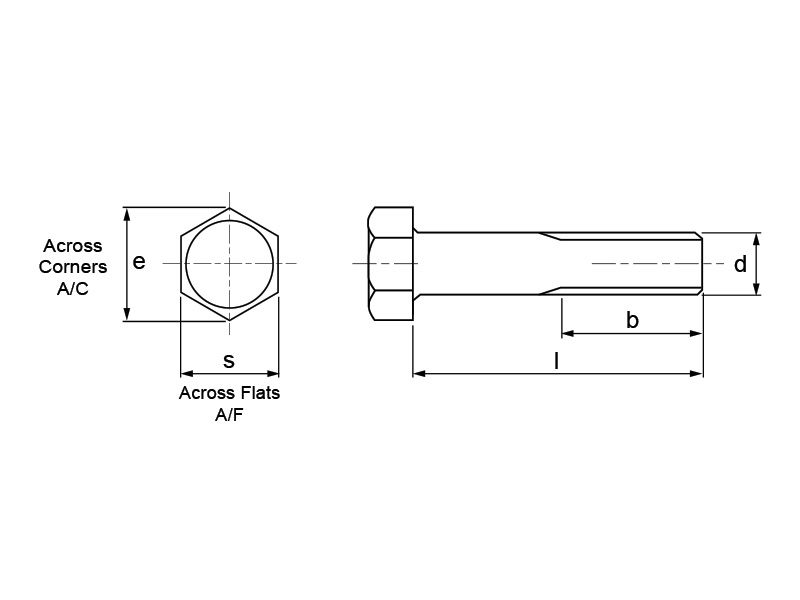

| SKU | Dia.-Pitch | Length | A/F [ s ] | A/C [ e ] | Thread Length [ b ] |
|---|---|---|---|---|---|
| 1467.0080020 | M8–1.25 | 20mm | 13mm | 15mm | 22mm |
| 1467.0080025 | M8–1.25 | 25mm | 13mm | 15mm | 22mm |
| 1467.0080030 | M8–1.25 | 30mm | 13mm | 15mm | 22mm |
| 1467.0080035 | M8–1.25 | 35mm | 13mm | 15mm | 22mm |
| 1467.0080040 | M8–1.25 | 40mm | 13mm | 15mm | 22mm |
| 1467.0080050 | M8–1.25 | 50mm | 13mm | 15mm | 22mm |
| 1467.0080060 | M8–1.25 | 60mm | 13mm | 15mm | 22mm |
| 1467.0080065 | M8–1.25 | 65mm | 13mm | 15mm | 22mm |
| 1467.0080070 | M8–1.25 | 70mm | 13mm | 15mm | 22mm |
| 1467.0080075 | M8–1.25 | 75mm | 13mm | 15mm | 22mm |
| 1467.0080100 | M8–1.25 | 100mm | 13mm | 15mm | 22mm |
| 1467.0100020 | M10–1.5 | 20mm | 16mm | 18mm | 20mm |
| 1467.0100025 | M10–1.5 | 25mm | 16mm | 18mm | 25mm |
| 1467.0100030 | M10–1.5 | 30mm | 16mm | 18mm | 26mm |
| 1467.0100040 | M10–1.5 | 40mm | 16mm | 18mm | 26mm |
| 1467.0100050 | M10–1.5 | 50mm | 16mm | 18mm | 26mm |
| 1467.0100055 | M10–1.5 | 55mm | 16mm | 18mm | 26mm |
| 1467.0100060 | M10–1.5 | 60mm | 16mm | 18mm | 26mm |
| 1467.0100065 | M10–1.5 | 65mm | 16mm | 18mm | 26mm |
| 1467.0100070 | M10–1.5 | 70mm | 16mm | 18mm | 26mm |
| 1467.0100075 | M10–1.5 | 75mm | 16mm | 18mm | 26mm |
| 1467.0100080 | M10–1.5 | 80mm | 16mm | 18mm | 26mm |
| 1467.0100090 | M10–1.5 | 90mm | 16mm | 18mm | 26mm |
| 1467.0100100 | M10–1.5 | 100mm | 16mm | 18mm | 26mm |
| 1467.0100120 | M10–1.5 | 120mm | 16mm | 18mm | 26mm |
| 1467.0100130 | M10–1.5 | 130mm | 16mm | 18mm | 32mm |
| 1467.0120030 | M12–1.75 | 30mm | 18mm | 20mm | 30mm |
| 1467.0120040 | M12–1.75 | 40mm | 18mm | 20mm | 30mm |
| 1467.0120050 | M12–1.75 | 50mm | 18mm | 20mm | 30mm |
| 1467.0120060 | M12–1.75 | 60mm | 18mm | 20mm | 30mm |
| 1467.0120065 | M12–1.75 | 65mm | 18mm | 20mm | 30mm |
| 1467.0120075 | M12–1.75 | 75mm | 18mm | 20mm | 30mm |
| 1467.0120080 | M12–1.75 | 80mm | 18mm | 20mm | 30mm |
| 1467.0120090 | M12–1.75 | 90mm | 18mm | 20mm | 30mm |
| 1467.0120100 | M12–1.75 | 100mm | 18mm | 20mm | 30mm |
| 1467.0120120 | M12–1.75 | 120mm | 18mm | 20mm | 30mm |
| 1467.0120130 | M12–1.75 | 130mm | 18mm | 20mm | 36mm |
| 1467.0160040 | M16–2.0 | 40mm | 24mm | 27mm | 40mm |
| 1467.0160050 | M16–2.0 | 50mm | 24mm | 27mm | 42mm |
| 1467.0160065 | M16–2.0 | 65mm | 24mm | 27mm | 42mm |
| 1467.0160075 | M16–2.0 | 75mm | 24mm | 27mm | 42mm |
| 1467.0160080 | M16–2.0 | 80mm | 24mm | 27mm | 42mm |
| 1467.0160100 | M16–2.0 | 100mm | 24mm | 27mm | 42mm |
| 1467.0160120 | M16–2.0 | 120mm | 24mm | 27mm | 42mm |
| 1467.0160130 | M16–2.0 | 130mm | 24mm | 27mm | 57mm |
