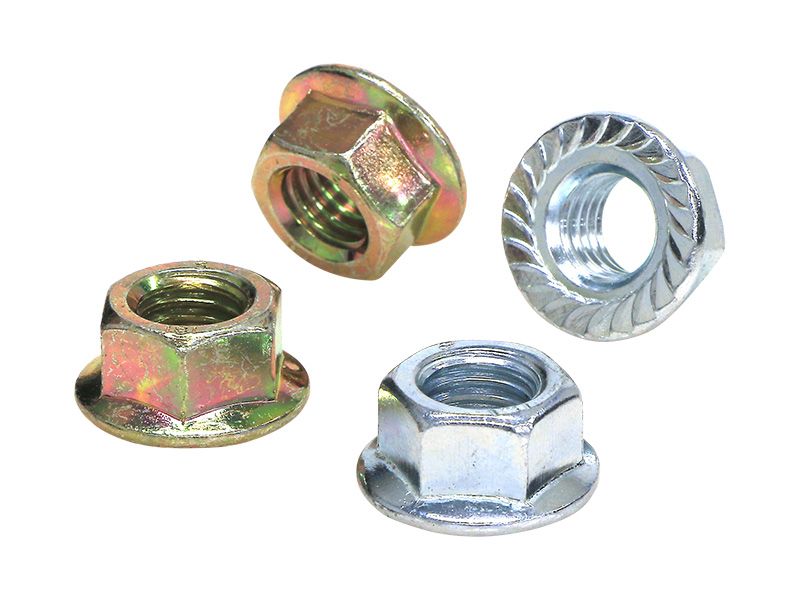

Flange Serrated Hex Nut Zinc Metric ISO4161
Flange Serrated Hex Nut Zinc Metric ISO4161
Serrated hex nuts formed with an enlarged base like washer, this flared bottom has serrations that creates a locking affect with the surface when tightened. Reducing the likelihood of the nut loosening under vibration.
Like an integrated washer the flange nut works well for oversized or irregular shaped holes, as the discrepancies are covered by the larger diameter.
- ISO 4161 class 8 hex nuts
- ISO 4042 electroplated zinc coatings to 5um
PLEASE specify zinc yellow or zinc (clear) plated before adding your selected size to your order. Both options may not always be avaible for your quantity needed.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
Electroplated Zinc Coated Fasteners
Zinc Yellow Passivate (ZY) – Product is electroplated with zinc which is then passivated with a iridescent yellow conversion layer. ZYP products have a greater resistance to corrosion than Z/P and are recommended for low-corrosion environments or temporary fixing.
Zinc Plated (ZP) – Product is electroplated with zinc which is then passivated with a transparent conversion layer. Z/P products are recommended for indoor and noncorrosive environments.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Carbon Steel |
| Coating & Plating | Zinc Yellow |
| Driver Type | Hex Sockets |
| Nut Type | Hex Flange Nuts |
| Diameter / Gauge | M8, M10, M12 |
| Thread Type | Metric |
Technical Information
| SKU | Thread–Pitch | Finish/Coating | A/F | Flange Dia. |
|---|---|---|---|---|
| 1957.0040000 | M4-0.7 | Zinc Plated | 7mm | |
| 1490.0050000 | M5-0.8 | Zinc Yellow | 8mm | 11.8mm |
| 1490.0060000 | M6-1.0 | Zinc Yellow | 10mm | 14.2mm |
| 1957.0060000 | M6-1.0 | Zinc Plated | 10mm | 14.2mm |
| 1490.0080000 | M8-1.25 | Zinc Yellow | 13mm | 17.9mm |
| 1957.0080000 | M8-1.25 | Zinc Plated | 13mm | 17.9mm |
| 1490.0100000 | M10-1.5 | Zinc Yellow | 15mm | 21.8mm |
| 1957.0100000 | M10-1.5 | Zinc Plated | 15mm | 21.8mm |
| 1490.0120000 | M12-1.75 | Zinc Yellow | 18mm | 26.0mm |
| 1957.0120000 | M12-1.75 | Zinc Plated | 18mm | 26.0mm |
