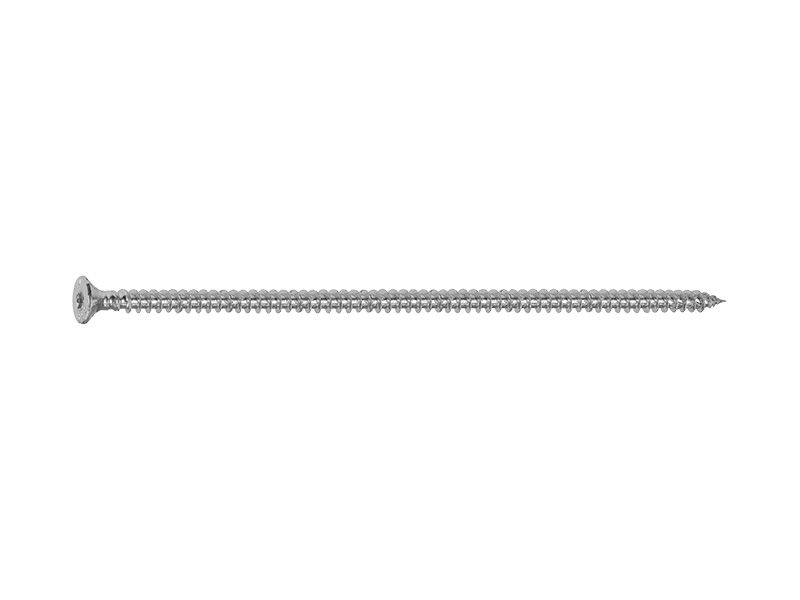

HDC-FC Timber Construction Screw Full Thread Countersunk Head

Construction countersunk head screws with full thread and TX drive for structural and reinforcement of wooden members.

Solid Timbers
Glued Laminated Timbers - CLT, KVH, BSH / GLT
Laminated Veneer Lumber - LVL

SKU 3WKFS-Z

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
M8 x 120mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $78.28
M8 x 140mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $87.95
M8 x 160mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $117.95
M8 x 180mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $127.80
M8 x 200mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $183.23
M8 x 220mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $171.00
M8 x 240mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $227.38
M8 x 260mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $255.55
M8 x 280mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $283.08
M8 x 300mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $307.25
M8 x 350mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $356.48
M8 x 400mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $442.15
M8 x 450mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $527.83
M8 x 500mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $613.55
M10 x 300mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $180.06
M10 x 330mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $190.41
M10 x 360mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $232.69
M10 x 400mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $281.51
M10 x 450mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $349.63
M10 x 500mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $409.89
M10 x 550mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $470.15
M10 x 600mm HDC-FC Timber Construction Screw Full Thread Csk Rib Torx T40 Hd Z/P From $530.41

Build A Quote?

Store Item

SKU:

Description

FEATURES

Full Thread - Without elements being over tighten to each other.
Countersunk Head - Allows quick and flush installation of the screw in the wooden member.
High Torque - Allows screws to be installed without pre-drilling, even in hardwood substrates.
Wax Coating - Wax coating applied during the production process significantly reduces the torque.

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Coating & Plating	Zinc Clear
Material Grade	Carbon Steel
Head Type	Countersunk
Driver Type	Torx Bit
Diameter / Gauge	M8, M10
Thread Type	Dual Thread
For use with	CLT (Cross Laminted Timber), LVL (Layerd Veneer Lumber), Timber, GLT (Glulam)

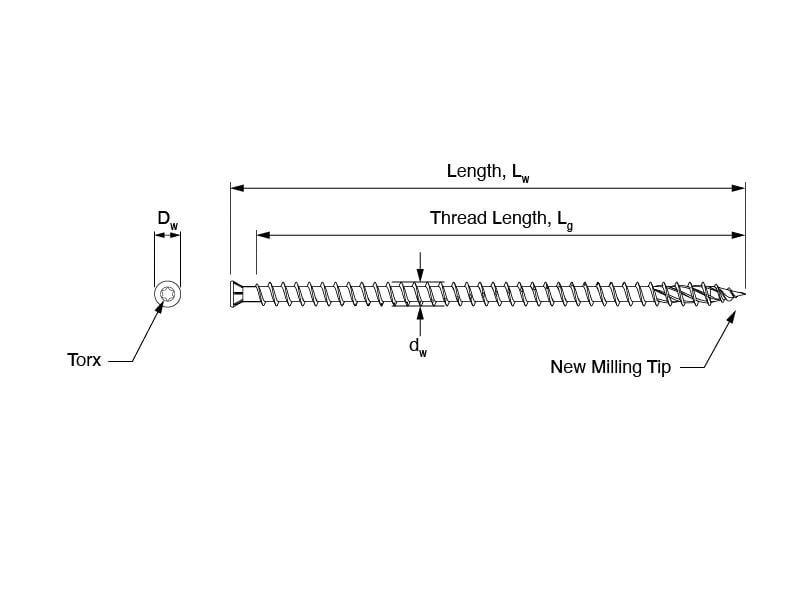

Technical Information

SKU	Description	Coating	Thread Length	Driver Bit
1214.0080120	M8 x 120mm HDC-FC	Zinc White	108mm	TX40
1214.0080140	M8 x 140mm HDC-FC	Zinc White	128mm	TX40
1214.0080160	M8 x 160mm HDC-FC	Zinc White	148mm	TX40
1214.0080180	M8 x 180mm HDC-FC	Zinc White	168mm	TX40
1214.0080200	M8 x 200mm HDC-FC	Zinc White	188mm	TX40
1214.0080220	M8 x 220mm HDC-FC	Zinc White	208mm	TX40
1214.0080240	M8 x 240mm HDC-FC	Zinc White	228mm	TX40
1214.0080260	M8 x 260mm HDC-FC	Zinc White	248mm	TX40
1214.0080280	M8 x 280mm HDC-FC	Zinc White	268mm	TX40
1214.0080300	M8 x 300mm HDC-FC	Zinc White	288mm	TX40
1214.0080350	M8 x 350mm HDC-FC	Zinc White	338mm	TX40
1214.0080400	M8 x 400mm HDC-FC	Zinc White	388mm	TX40
1214.0080450	M8 x 450mm HDC-FC	Zinc White	438mm	TX40
1214.0080500	M8 x 500mm HDC-FC	Zinc White	488mm	TX40
1214.0100300	M10 x 300mm HDC-FC	Zinc White	285mm	TX40
1214.0100330	M10 x 330mm HDC-FC	Zinc White	315mm	TX40
1214.0100360	M10 x 360mm HDC-FC	Zinc White	345mm	TX40
1214.0100400	M10 x 400mm HDC-FC	Zinc White	385mm	TX40
1214.0100450	M10 x 450mm HDC-FC	Zinc White	435mm	TX40
1214.0100500	M10 x 500mm HDC-FC	Zinc White	485mm	TX40
1214.0100550	M10 x 550mm HDC-FC	Zinc White	535mm	TX40
1214.0100600	M10 x 600mm HDC-FC	Zinc White	585mm	TX40
