Flat Washer Round Imperial – Zinc Plated
Flat Washer Round Imperial – Zinc Plated

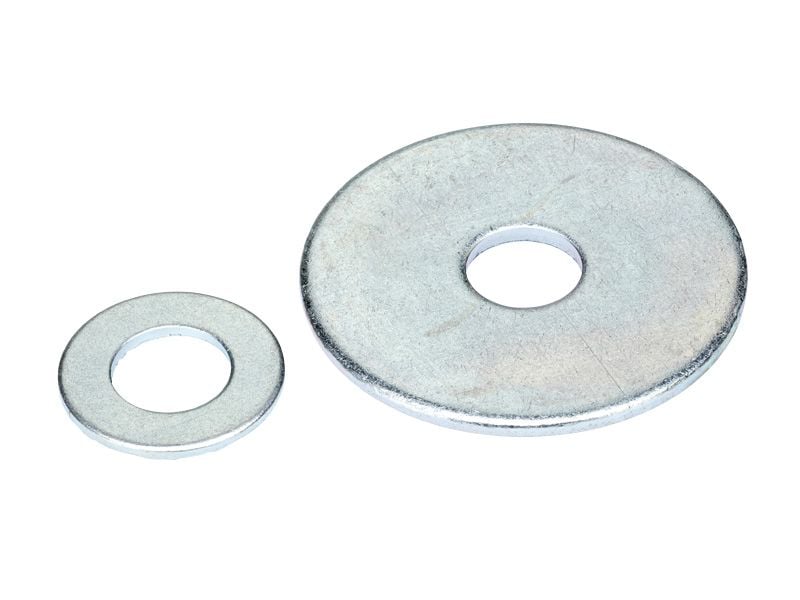

Zinc-plated steel washers are primarily used with bolts and fasteners not exposed to harsh or external conditions. These round washers are an imperial standard; please select the size that meets your requirements.
Washers are not a precision item and dimensional data should be used as a guide only.

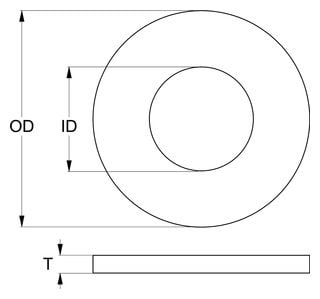

The imperial sizing distinguishes the inner hole diameter (ID) and the outer diameter (OD).
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Carbon Steel |
| Coating & Plating | Zinc Clear |
| Diameter / Gauge | 1/8", 3/16", 1/4", 5/16", 3/8", 1/2" |
| Thread Type | Imperial |
Technical Information
| SKU | Imperial Size: | Bolt Size: | ID / OD: | Thickness |
|---|---|---|---|---|
| 1546.0030807 | 1/8" x 5/16” | 3.7 / 8.1mm | 1/8” – M3 | 0.7mm (22g) |
| 1546.0031009 | 1/8" x 3/8” | 3.7 / 9.7mm | 1/8” – M3 | 0.9mm (20g) |
| 1546.0031209 | 1/8" x 1/2” | 3.8 / 12.7mm | 1/8” – M3 | 0.9mm (20g) |
| 1546.0031612 | 1/8" x 5/8” | 3.8 / 16.1mm | 1/8” – M3 | 1.2mm (18g) |
| 1546.0041009 | 5/32" x 3/8” | 4.6 / 9.7mm | 5/32” – M4 | 0.9mm (20g) |
| 1546.0051209 | 3/16" x 1/2” | 5.4 / 12.7mm | 3/16” – M4 | 0.9mm (20g) |
| 1546.0051612 | 3/16" x 5/8” | 5.4 / 16.1mm | 3/16” – M4 | 1.2mm (18g) |
| 1546.0052016 | 3/16" x 3/4” | 5.4 / 19.6mm | 3/16” – M4 | 1.6mm (16g) |
| 1546.0052516 | 3/16" x 1” | 5.4 / 12.7mm | 3/16” – M4 | 1.6mm (16g) |
| 1546.0061212 | 1/4" x 1/2” | 7.0 / 12.7mm | 1/4” – M6 | 1.2mm (18g) |
| 1546.0061412 | 1/4" x 9/16” | 7.0 / 14.3mm | 1/4” – M6 | 1.2mm (18g) |
| 1546.0061612 | 1/4" x 5/8” | 7.0 / 15.9mm | 1/4” – M6 | 1.2mm (18g) |
| 1546.0062016 | 1/4" x 3/4” | 7.0 / 19.6mm | 1/4” – M6 | 1.6mm (16g) |
| 1546.0062216 | 1/4" x 7/8” | 7.0 / 22.3mm | 1/4” – M6 | 1.6mm (16g) |
| 1546.0062516 | 1/4" x 1” | 7.0 / 25.6mm | 1/4” – M6 | 1.6mm (16g) |
| 1546.0063216 | 1/4" x 1-1/4” | 7.0 / 31.9mm | 1/4” – M6 | 1.6mm (16g) |
| 1546.0081612 | 5/16" x 5/8” | 9.0 / 16.1mm | 5/16” – M8 | 1.2mm (18g) |
| 1546.0082012 | 5/16" x 3/4” | 9.0 / 19.6mm | 5/16” – M8 | 1.2mm (18g) |
| 1546.0082212 | 5/16" x 7/8” | 9.0 / 22.3mm | 5/16” – M8 | 1.2mm (18g) |
| 1546.0082516 | 5/16" x 1” | 9.0 / 25.6mm | 5/16” – M8 | 1.6mm (16g) |
| 1546.0083216 | 5/16" x 1-1/4” | 9.0 / 31.9mm | 5/16” – M8 | 1.6mm (16g) |
| 1546.0083816 | 5/16” x 1-1/2" | 9.0 / 38.3mm | 5/16” – M8 | 1.6mm (16g) |
| 1546.0101612 | 3/8" x 5/8” | 11.0 / 16.1mm | 3/8” – M10 | 1.2mm (18g) |
| 1546.0102016 | 3/8" x 3/4” | 11.0 / 19.6mm | 3/8” – M10 | 1.6mm (16g) |
| 1546.0102216 | 3/8" x 7/8” | 11.0 / 22.3mm | 3/8” – M10 | 1.6mm (16g) |
| 1546.0102516 | 3/8" x 1” | 11.0 / 25.6mm | 3/8” – M10 | 1.6mm (16g) |
| 1546.0103216 | 3/8" x 1-1/4” | 11.0 / 31.9mm | 3/8” – M10 | 1.6mm (16g) |
| 1546.0103816 | 3/8" x 1-1/2” | 11.0 / 38.3mm | 3/8” – M10 | 1.6mm (16g) |
| 1546.0105016 | 3/8" x 2” | 11.0 / 51.2mm | 3/8” – M10 | 1.6mm (16g) |
| 1546.0122516 | 1/2" x 1” | 13.7 / 25.6mm | 1/2” – M12 | 1.6mm (16g) |
| 1546.0122816 | 1/2” x 1-1/8" | 13.7 / 28.6mm | 1/2” – M12 | 1.6mm (16g) |
| 1546.0123216 | 1/2" x 1-1/4” | 13.7 / 31.9mm | 1/2” – M12 | 1.6mm (16g) |
| 1546.0123820 | 1/2" x 1-1/2” | 13.7 / 38.3mm | 1/2” – M12 | 2.0mm (14g) |
| 1546.0125016 | 1/2 x 2” | 13.7 / 51.2mm | 1/2” – M12 | 1.6mm (16g) |
