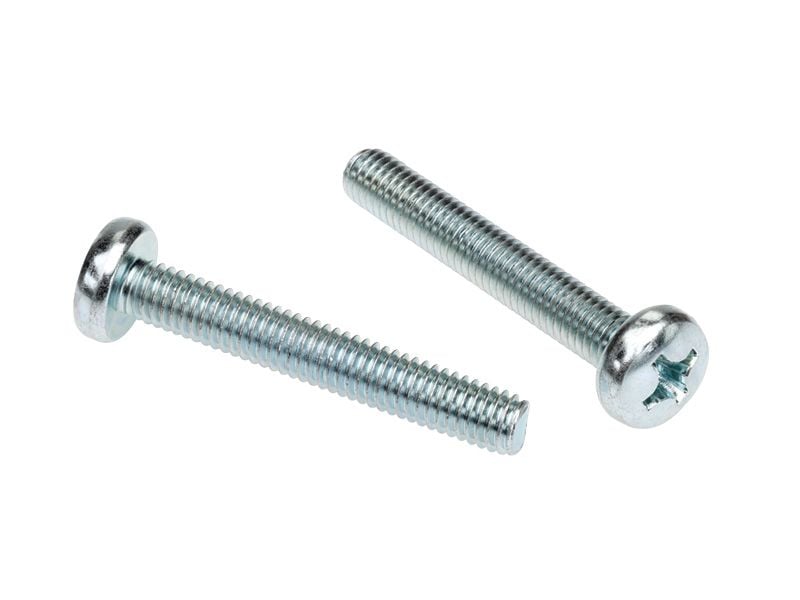

Pan Head Metal Thread Zinc Metric Phillips Drive
Pan Head Metal Thread Zinc Metric Phillips Drive
Metal threads (or machine screws) are not supplied with nuts or washers. The metric thread allows these to be installed generally in pre thread component such as draw handles or other hardware assemblies.
Zinc plated metal threads for internal application that remains realtively dry.
Length is quoted from under the pan head.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Carbon Steel |
| Coating & Plating | Zinc Clear |
| Head Type | Pan |
| Driver Type | Philips Bit |
| Diameter / Gauge | M3, M4, M5, M6 |
| Thread Type | Metric |
Technical Information
| SKU | Dia. | Length | Pitch | Driver Bit | Description |
|---|---|---|---|---|---|
| 1522.0030005 | M3 | 5mm | 0.5 | M3 x 5mm | |
| 1522.0030006 | M3 | 6mm | M3 x 6mm | ||
| 1522.0030008 | M3 | 8mm | M3 x 8mm | ||
| 1522.0030010 | M3 | 10mm | M3 x 10mm | ||
| 1522.0030012 | M3 | 12mm | M3 x 12mm | ||
| 1522.0030016 | M3 | 16mm | M3 x 16mm | ||
| 1522.0030020 | M3 | 20mm | M3 x 20mm | ||
| 1522.0030025 | M3 | 25mm | M3 x 25mm | ||
| 1522.0040005 | M4 | 5mm | 0.7 | M4 x 5mm | |
| 1522.0040006 | M4 | 6mm | M4 x 6mm | ||
| 1522.0040008 | M4 | 8mm | M4 x 8mm | ||
| 1522.0040010 | M4 | 10mm | M4 x 10mm | ||
| 1522.0040012 | M4 | 12mm | M4 x 12mm | ||
| 1522.0040016 | M4 | 16mm | M4 x 16mm | ||
| 1522.0040020 | M4 | 20mm | M4 x 20mm | ||
| 1522.0040025 | M4 | 25mm | M4 x 25mm | ||
| 1522.0040030 | M4 | 30mm | M4 x 30mm | ||
| 1522.0040035 | M4 | 35mm | M4 x 35mm | ||
| 1522.0040040 | M4 | 40mm | M4 x 40mm | ||
| 1522.0040050 | M4 | 50mm | M4 x 50mm | ||
| 1522.0050008 | M5 | 8mm | 0.8 | M5 x 8mm | |
| 1522.0050010 | M5 | 10mm | M5 x 10mm | ||
| 1522.0050012 | M5 | 12mm | M5 x 12mm | ||
| 1522.0050016 | M5 | 16mm | M5 x 16mm | ||
| 1522.0050020 | M5 | 20mm | M5 x 20mm | ||
| 1522.0050025 | M5 | 25mm | M5 x 25mm | ||
| 1522.0050030 | M5 | 30mm | M5 x 30mm | ||
| 1522.0050035 | M5 | 35mm | M5 x 35mm | ||
| 1522.0050040 | M5 | 40mm | M5 x 40mm | ||
| 1522.0050045 | M5 | 45mm | M5 x 45mm | ||
| 1522.0050050 | M5 | 50mm | M5 x 50mm | ||
| 1522.0050065 | M5 | 65mm | M5 x 65mm | ||
| 1522.0060012 | M6 | 12mm | 1 | M6 x 12mm | |
| 1522.0060016 | M6 | 16mm | M6 x 16mm | ||
| 1522.0060020 | M6 | 20mm | M6 x 20mm | ||
| 1522.0060025 | M6 | 25mm | M6 x 25mm | ||
| 1522.0060030 | M6 | 30mm | M6 x 30mm | ||
| 1522.0060035 | M6 | 35mm | M6 x 35mm | ||
| 1522.0060040 | M6 | 40mm | M6 x 40mm | ||
| 1522.0060045 | M6 | 45mm | M6 x 45mm | ||
| 1522.0060050 | M6 | 50mm | M6 x 50mm |
