Cup Head Bolt & Nut Galvanised ISO8678/AS1390

Cup Head Bolt & Nut Galvanised ISO8678/AS1390

Cup Head Bolt & Nut Galvanised ISO8678/AS1390

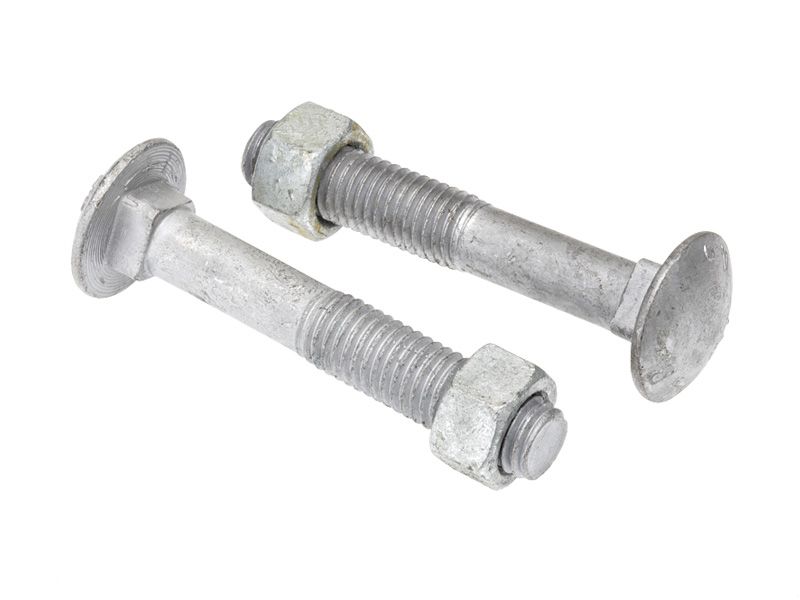

Cup head bolt and nut assemeblies are desgined for timber to timber or timber to steel connections. The square neck under the dome head prevents the bolt from turning in the pre-drilled timber hole. Cup heads are typically hammered in and tighten off with a spanner.

Not to be confused with a coach bolt which has a hex head and woodthread, cup head bolts (or carriage bolts as sometimes called) have a metric thread with the flat chamfered end. In most cases the bolt length will have a clear shank as the thread will only be required at the final 10 - 20mm of bolt length.

SKU 6B.021
Availability:
Pack:
Sub-total: / ex. gst.
Description

Installation Tips:

  • Pre drill hole to match bolt diameter
  • Hammer in so the underside of the head engages the timber
  • Select a length that will not protrude greatly. The bolt diameter roughly matches the nut height ie; M10 has a nut height of 10mm. Allow for at least 5mm of thread at the end of the bolt.
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery SHIPS IN 1 - 2 DAYS
Material Grade 4.6 Mild Steel
Coating & Plating Galvanised
Head Type Cup Head
Diameter / Gauge M8, M10, M12, M16
Thread Type Metric
Technical Information
SKU Dia. Length Pitch A/F (mm) Description
6DCMGN08040 M8 40mm M8 x 40mm
6DCMGN10050 M10 50mm M10 x 50mm
6DCMGN10060 M10 60mm M10 x 60mm
6DCMGN10065 M10 65mm M10 x 65mm
6DCMGN10075 M10 75mm M10 x 75mm
6DCMGN10100 M10 100mm M10 x 100mm
6DCMGN10120 M10 120mm M10 x 120mm
6DCMGN10140 M10 140mm M10 x 140mm
6DCMGN10160 M10 160mm M10 x 160mm
6DCMGN10180 M10 180mm M10 x 180mm
6DCMGN10200 M10 200mm M10 x 200mm
6DCMGN10220 M10 220mm M10 x 220mm
6DCMGN10240 M10 240mm M10 x 240mm
6DCMGN10260 M10 260mm M10 x 260mm
6DCMGN12040 M12 40mm M12 x 40mm
6DCMGN12030 M12 30mm M12 x 30mm
6DCMGN12065 M12 65mm M12 x 65mm
6DCMGN12075 M12 75mm M12 x 75mm
6DCMGN12090 M12 90mm M12 x 90mm
6DCMGN12100 M12 100mm M12 x 100mm
6DCMGN12120 M12 120mm M12 x 120mm
6DCMGN12130 M12 130mm M12 x 130mm
6DCMGN12150 M12 150mm M12 x 150mm
6DCMGN12160 M12 160mm M12 x 160mm
6DCMGN12180 M12 180mm M12 x 180mm
6DCMGN12200 M12 200mm M12 x 200mm
6DCMGN12240 M12 240mm M12 x 240mm
6DCMGN16050 M16 50mm M16 x 50mm
6DCMGN16065 M16 65mm M16 x 65mm
6DCMGN16075 M16 75mm M16 x 75mm
6DCMGN12260 M12 260mm M12 x 260mm
6DCMGN12280 M12 280mm M12 x 280mm
6DCMGN12300 M12 300mm M12 x 300mm
6DCMGN16100 M16 100mm M16 x 100mm
6DCMGN16120 M16 120mm M16 x 120mm
6DCMGN16130 M16 130mm M16 x 130mm
6DCMGN16140 M16 140mm M16 x 140mm
6DCMGN16150 M16 150mm M16 x 150mm
6DCMGN16170 M16 170mm M16 x 170mm
6DCMGN16180 M16 180mm M16 x 180mm
6DCMGN16200 M16 200mm M16 x 200mm
6DCMGN16220 M16 220mm M16 x 220mm
6DCMGN16240 M16 240mm M16 x 240mm
