Square Plate Flat Washers

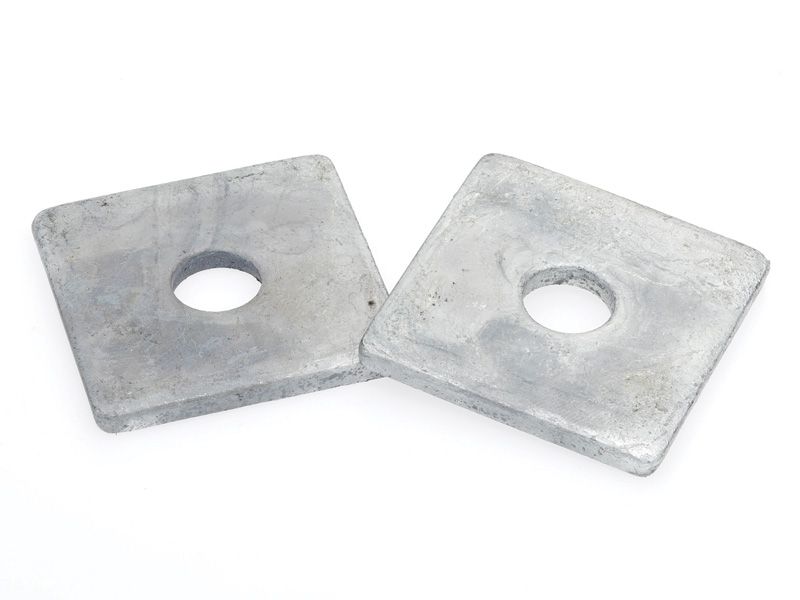

Square Flat Washer HDG Metric Hole
Square plate washers should be placed between the surface and nut on threaded fastening assembly, the wider shape of the square washers aid in distribution of load on the fixing point.
- Size: metric hole dia. M8 to M36
- Plate thickness: 3mm, 5mm, 6mm, 10mm, 12mm, 16mm
- Material: mild steel
- Finish: hot dipped galvanised (HDG)
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | Carbon Steel |
| Coating & Plating | Hot Dipped Galvanised (HDG) |
| Diameter / Gauge | M8, M10, M12, M16, M20, M24, M30, M36 |
| Use for | Concrete Reinforcement, Critical Anchoring, Formwork, Foundation, Steel to Steel Connections, Structural Fixing |
Technical Information
| SKU | Nominal Bolt Size | Square x Thickness [ mm ] | Material Thickness | Hole Dia. |
|---|---|---|---|---|
| 1545.0804003 | M8 | 40 x 40 x 3mm | 3mm | 9mm |
| 1545.1004003 | M10 | 40 x 40 x 3mm | 3mm | 11mm |
| 1545.1005003 | M10 | 50 x 50 x 3mm | 3mm | 11mm |
| 1545.1204003 | M12 | 40 x 40 x 3mm | 3mm | 13mm |
| 1545.1205003 | M12 | 50 x 50 x 3mm | 3mm | 13mm |
| 1545.1205005 | M12 | 50 x 50 x 5mm | 5mm | 13mm |
| 1545.1206505 | M12 | 65 x 65 x 5mm | 5mm | 13mm |
| 1545.1605003 | M16 | 50 x 50 x 3mm | 3mm | 17mm |
| 1545.1605005 | M16 | 50 x 50 x 5mm | 5mm | 17mm |
| 1545.1605006 | M16 | 50 x 50 x 6mm | 6mm | 17mm |
| 1545.1607505 | M16 | 75 x 75 x 5mm | 5mm | 17mm |
| 1545.1607506 | M16 | 75 x 75 x 6mm | 6mm | 17mm |
| 1545.1607510 | M16 | 75 x 75 x 10mm | 10mm | 17mm |
| 1545.2005003 | M20 | 50 x 50 x 3mm | 3mm | 21mm |
| 1545.2005005 | M20 | 50 x 50 x 5mm | 5mm | 21mm |
| 1545.2005006 | M20 | 50 x 50 x 6mm | 6mm | 21mm |
| 1545.2006505 | M20 | 65 x 65 x 5mm | 5mm | 21mm |
| 1545.2006506 | M20 | 65 x 65 x 6mm | 6mm | 21mm |
| 1545.2007505 | M20 | 75 x 75 x 5mm | 5mm | 21mm |
| 1545.2007506 | M20 | 75 x 75 x 6mm | 6mm | 21mm |
| 1545.2007510 | M20 | 75 x 75 x 10mm | 10mm | 21mm |
| 1545.2010016 | M20 | 100 x 100 x 16mm | 16mm | 21mm |
| 1545.2010012 | M20 | 100 x 100 x 12mm | 12mm | 21mm |
| 1545.2407506 | M24 | 75 x 75 x 6mm | 6mm | 25mm |
| 1545.2407510 | M24 | 75 x 75 x 10mm | 10mm | 25mm |
| 1545.2410012 | M24 | 100 x 100 x 12mm | 12mm | 25mm |
| 1545.2410016 | M24 | 100 x 100 x 16mm | 16mm | 25mm |
| 1545.3007506 | M30 | 75 x 75 x 6mm | 6mm | 31mm |
| 1545.3007510 | M30 | 75 x 75 x 10mm | 10mm | 31mm |
| 1545.3010012 | M30 | 100 x 100 x 12mm | 12mm | 31mm |
| 1545.3010016 | M30 | 100 x 100 x 16mm | 16mm | 31mm |
| 1545.3607510 | M36 | 75 x 75 x 10mm | 10mm | 39mm |
| 1545.3610012 | M36 | 100 x 100 x 12mm | 12mm | 39mm |
| 1545.3610016 | M36 | 100 x 100 x 16mm | 16mm | 39mm |
