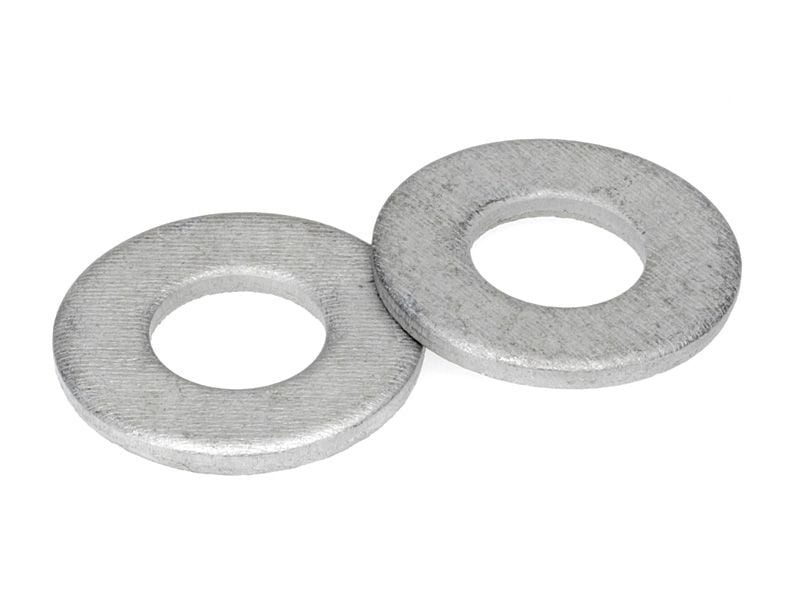

Flat Washer Gal Metric DIN125A/AS1237:2002
Flat Washer Gal Metric DIN125A/AS1237:2002
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Material Grade | Carbon Steel |
|---|---|
| Coating & Plating | Galvanised |
| Diameter / Gauge | M8, M10, M12, M16, M20, M24, M30, M36, M42 |
| Thread Type | Metric |
Technical Information
| SKU | Nominal Size: | I.D (mm) | O.D (mm) | Thick. (mm) |
|---|---|---|---|---|
| 1549.0081616 | M8 x 16mm | 8.40 | 16 | 1.6mm |
| 1549.0102020 | M10 x 20mm | 10.50 | 20 | 2.0mm |
| 1549.0103025 | M10 x 30mm | 10.50 | 30 | 2.5mm |
| 1549.0122425 | M12 x 24mm | 13.00 | 24 | 2.5mm |
| 1549.0163030 | M16 x 30mm | 17.00 | 30 | 3.0mm |
| 1549.0203730 | M20 x 37mm | 22.00 | 37 | 3.0mm |
| 1549.0244440 | M24 x 44mm | 26.00 | 44 | 4.0mm |
| 1549.0305640 | M30 x 56mm | - | 56 | 4.0mm |
| 1549.0366650 | M36 x 66mm | - | 66 | 5.0mm |
| 1549.0427880 | M42 x 78mm | - | 78 | 8.0mm |
