Undercut Through-set Anchor with Seismic Loading

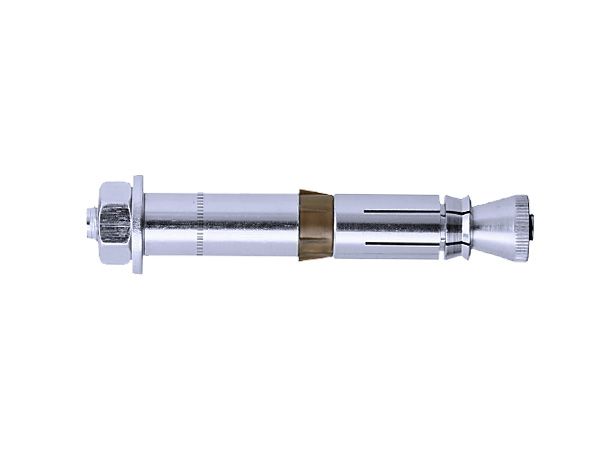

UAT-Z Undercut Through-set Anchor Seismic C1/C2
- Self-undercutting anchors are easy to install without any need for special tools.
- Undercut anchors provide the benefits of immediate loading unlike other post-installed anchors relying on a chemical bond.
- With low-expansion forces and mechanical interlock achieved within the concrete, undercut anchors are superior to other expansion anchor types
- Provide the highest levels of reliability and safety for critical applications such as within tunnels and nuclear facilities
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
CHARACTERISTICS AND BENEFITS
- Ease of installation – self-undercut and mechanical internlock.
- Low-expansion forces allow small spacings and edge distances.
- Through-set installation method.
- No special drill bits or undercut tools required.
- ETA assessed for use in areas of seismic activity.
- Assessed option 1 anchor for cracked and un-cracked concrete.
- For static and quasi-static loads.
- Assessed for fire resistance
- Zinc electroplated acc. EN ISO 4042 ≥ 5um
- Threaded bolt and nut to EN ISO 898: property class 8.8
- Acceptable use in structures subject to dry internal conditions or indoor conditions with temporary condensation.
APPLICATIONS
- Structural fixings in cracked and non-cracked concrete, including industrial, infrastructure and nuclear facilities
- Safety critical applications
- Very good suitability for overhead installation
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | 8.8 Hi-Tensile Steel |
|---|---|
| Coating & Plating | Zinc Clear |
| Diameter / Gauge | M8, M12, M16 |
| Thread Type | Metric |
| For use with | Concrete (cracked), Concrete (un-cracked) |
| Setting Conditions | Dustless Drilling, Hammer Drilling, Close to Edge, Overhead, Through Fixture |
| Approvals & Documents | ETA Certification, Fire Resistance |
| Compliance | AS 5216:2021, 100 Year Design Life , Cyclic Loads, Seismic C1 & C2 |
| Software | AFOS® Anchor Design Software |
| Use for | Critical Anchoring, Structural Fixing, Suspension & Gantry |
Technical Information

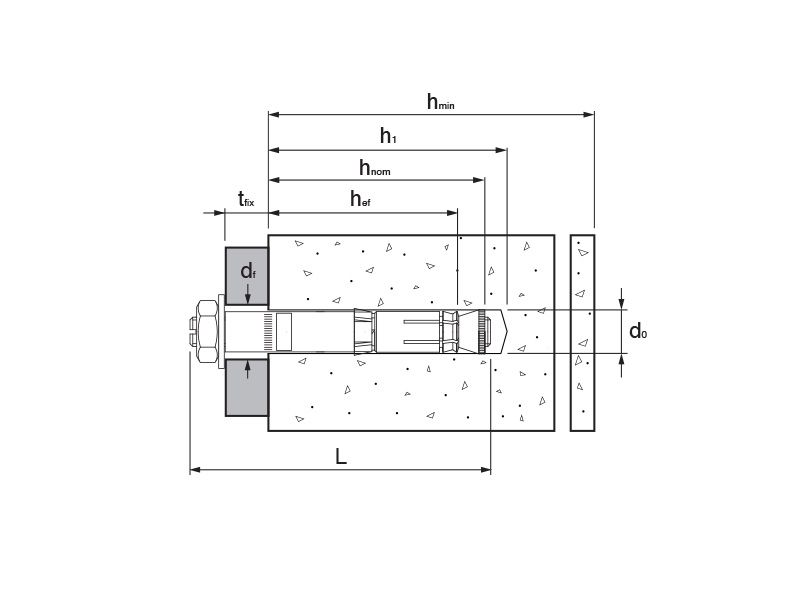

| SKU | Dia. x Length | Max. Fix. | Drill Dia. x Depth | Seismic C1/C2 |
|---|---|---|---|---|
| 1949.0080080 | M8 x 80mm UAT-Z | 25mm | ø 14 x 100mm | -/- |
| 1949.0080130 | M8 x 130mm UAT-Z | 25mm | ø 14 x 100mm | -/- |
| 1949.0120130 | M12 x 130mm UAT-Z | 15mm | ø 20 x 175mm | ✓ / ✓ |
| 1949.0120145 | M12 x 145mm UAT-Z | 30mm | ø 20 x 175mm | ✓ / ✓ |
| 1949.0120215 | M12 x 215mm UAT-Z | 30mm | ø 20 x 175mm | ✓ / ✓ |
| 1949.0160220 | M16 x 220mm UAT-Z | 30mm | ø 25 x 235mm | ✓ / ✓ |
| 1949.0160280 | M16 x 280mm UAT-Z | 40mm | ø 25 x 235mm | ✓ / ✓ |
| 1949.0160300 | M16 x 300mm UAT-Z | 60mm | ø 25 x 235mm | ✓ / ✓ |
