Undercut Pre-set Anchor with Seismic Rating
UAP-Z Undercut Pre-set Anchor Seismic C1/C2
- Pre-set installation method − nut and washer to be removed after inserting into the drilled hole, prior to fixture being installed
- Most reliable and secure heavy-duty anchor for safety-critical applications, including tunnels and nuclear facilities
- Easy to install self-undercutting anchor without any need for special drill bits or undercut tools
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
CHARACTERISTICS AND BENEFITS
- Ease of installation – self-undercut and mechanical interlock.
- Low-expansion forces allow small spacings and edge distances.
- Pre-set installation method.
- No special drill bits or undercut tools required.
- ETA assessed for use in areas of seismic activity.
- Assessed option 1 anchor for cracked and uncracked concrete.
- For static and quasi-static loads.
- Assessed for fire resistance
- Zinc electroplated acc. EN ISO 4042 ≥ 5um
- Threaded bolt and nut to EN ISO 898: property class 8.8
- Acceptable use in structures subject to dry internal conditions or indoor conditions with temporary condensation.
APPLICATIONS
- Structural fixings in cracked and uncracked concrete, including industrial, infrastructure and nuclear facilities
- Safety critical applications
- Very good suitability for overhead installation
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Material Grade | 8.8 Hi-Tensile Steel |
|---|---|
| Coating & Plating | Zinc Clear |
| Head Type | Externally Threaded |
| Diameter / Gauge | M12, M16 |
| Thread Type | Metric |
| For use with | Concrete (cracked), Concrete (uncracked) |
| Setting Conditions | Dustless Drilling, Hammer Drilling, Close to Edge, Overhead, Pre-set |
| Approvals & Documents | ETA Certification |
| Compliance | AS 5216:2026, Cyclic Loads, Seismic C1 & C2 |
| Software | AFOS® Anchor Design Software |
| Use for | Critical Anchoring, Structural Fixing, Suspension & Gantry, 100 Year Design Life , Dynamic Loads |
Technical Information

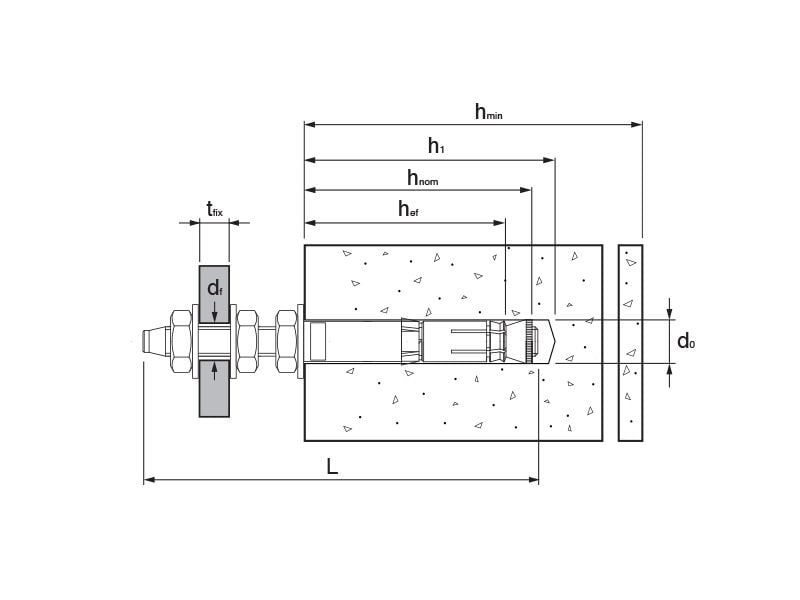

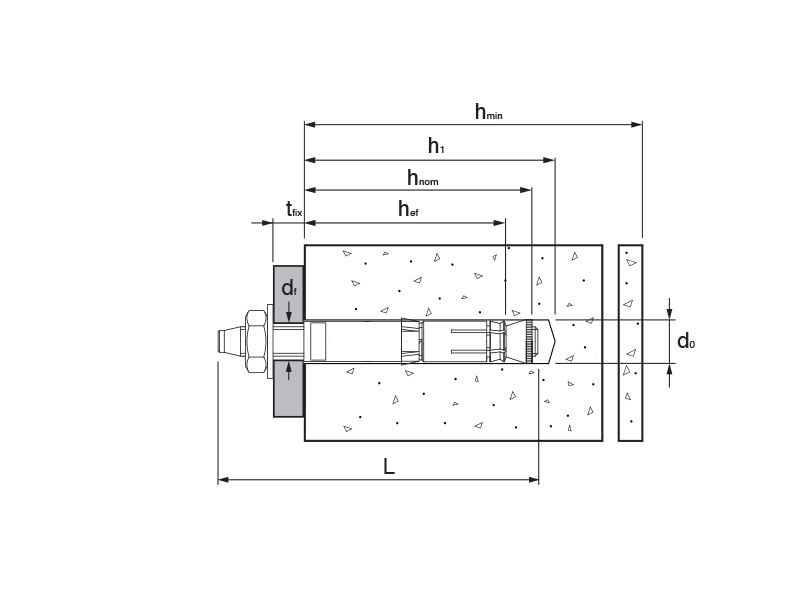

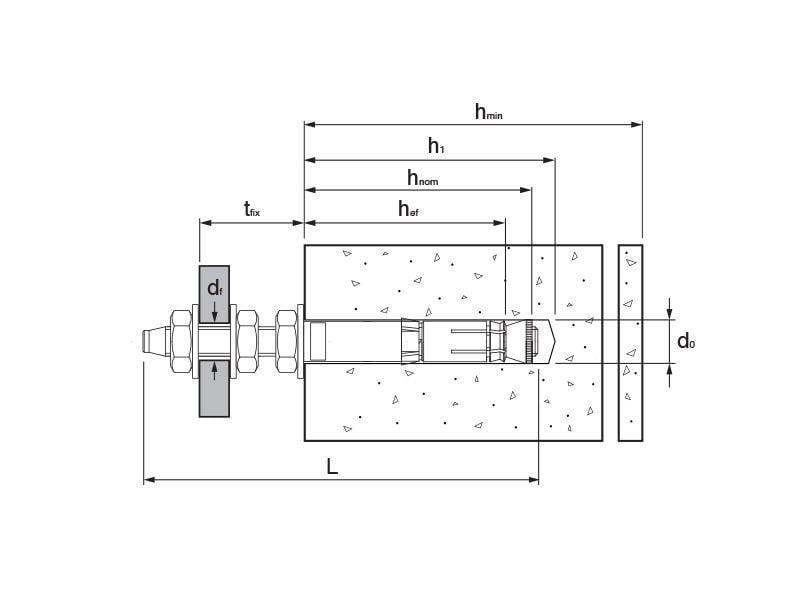

| SKU | Dia. x Length | Max. Fix. | Drill Dia. x Depth | Seismic C1/C2 |
|---|---|---|---|---|
| 1947.0120135 | M12 x 135mm UAP-Z | 15mm | ø 20 x 105mm | ✓ / ✓ |
| 1947.0120220 | M12 x 220mm UAP-Z | 30mm | ø 20 x 175mm | ✓ / ✓ |
| 1947.0160240 | M16 x 240mm UAP-Z | 40mm | ø 25 x 185mm | ✓ / ✓ |
| 1947.0160290 | M16 x 290mm UAP-Z | 40mm | ø 25 x 235mm | ✓ / ✓ |
