UAP-S Undercut Pre-set Anchor 316 (A4) Stainless Steel
UAP-S Undercut Pre-set Anchor 316 (A4) Stainless Steel
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
CHARACTERISTICS AND BENEFITS
- Ease of installation – self-undercut and mechanical internlock.
- Low-expansion forces allow small spacings and edge distances.
- Pre-set installation method.
- No special drill bits or undercut tools required.
- ETA assessed option 1 anchor for cracked and un-cracked concrete.
- For static and quasi-static loads.
- Assessed for fire resistance
- A4 (316) stainless steel acc. EN 10088
- Threaded bolt and nut to EN ISO 3506: class 80
- Acceptable use in internal and external structures including concrete exposed to constant atmospheric conditions such as industrial and marine environments.
APPLICATIONS

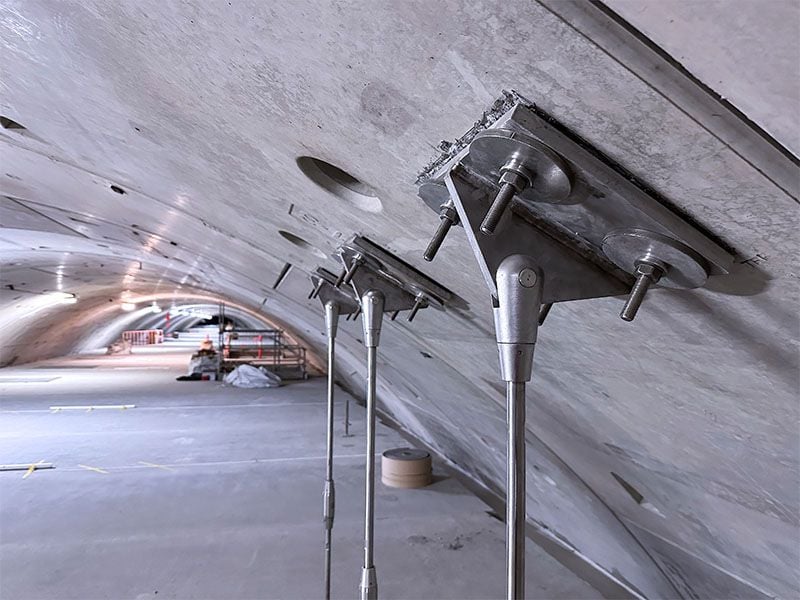

- Structural fixings in cracked and non-cracked concrete, including industrial, infrastructure and nuclear facilities
- Safety critical applications
- Very good suitability for overhead installation
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Material Grade | 316 Stainless Steel |
|---|---|
| Coating & Plating | Plain / Unplated |
| Head Type | Externally Threaded |
| Diameter / Gauge | M12, M16 |
| Thread Type | Metric |
| For use with | Concrete (cracked), Concrete (un-cracked) |
| Setting Conditions | Dustless Drilling, Hammer Drilling, Close to Edge, Pre-set |
| Approvals & Documents | ETA Certification, Fire Resistance |
| Compliance | AS 5216:2021, 100 Year Design Life , Cyclic Loads, Dynamic Loads |
| Software | AFOS® Anchor Design Software |
| Use for | Critical Anchoring, Structural Fixing, Suspension & Gantry |
Technical Information

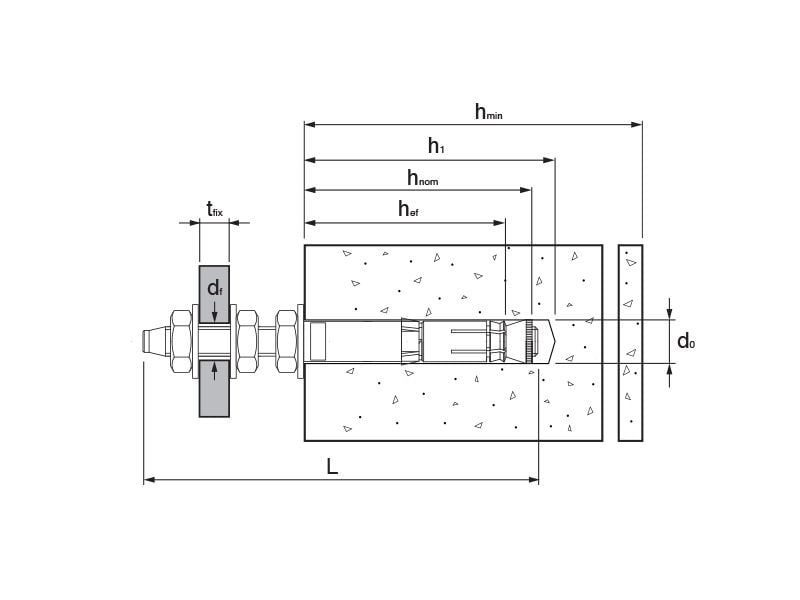

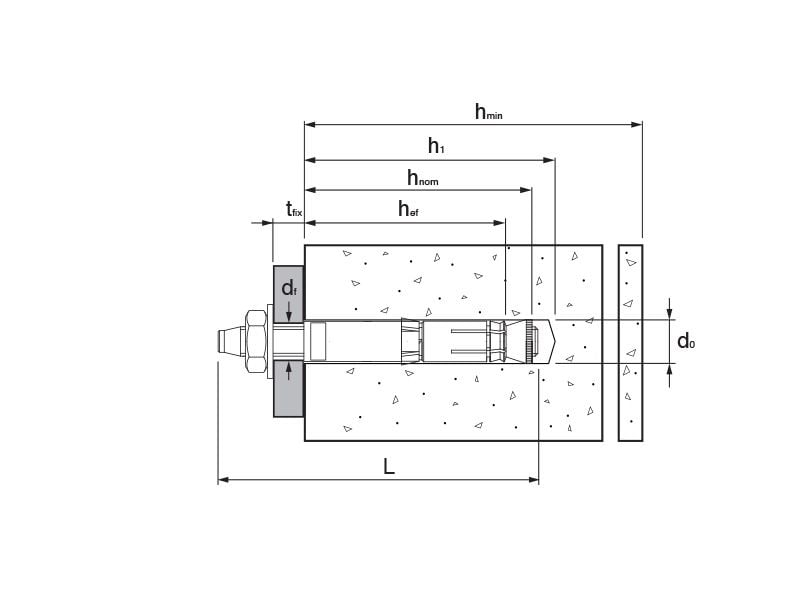

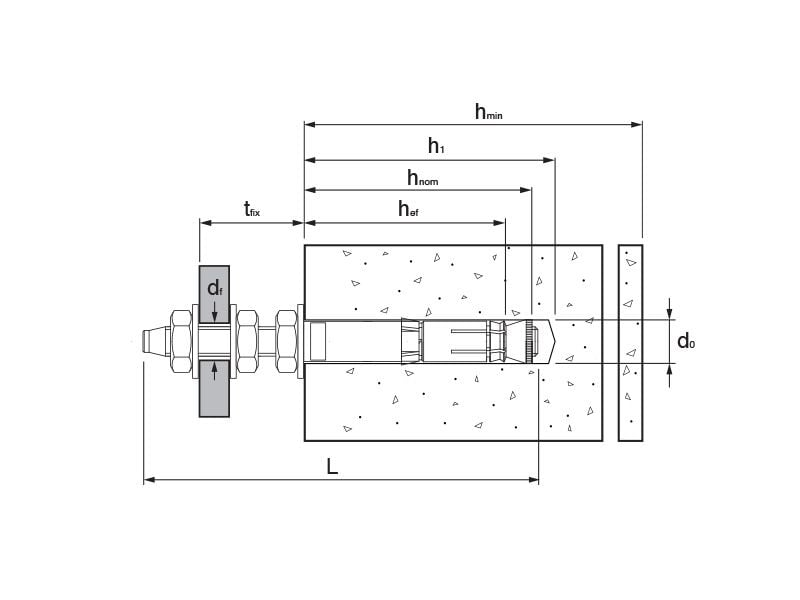

| SKU | Dia x Length | Max. Fix. | Drill Dia. x Depth | Base Material Thickness |
|---|---|---|---|---|
| 1946.0080080 | M8 x 80mm UAP-S | 15mm | ø 14 x 40mm | 300mm |
| 1946.0080130 | M8 x 130mm UAP-S | 25mm | ø 14 x 80mm | 300mm |
| 1946.0120135 | M12 x 135mm UAP-S | 15mm | ø 20 x 105mm | 300mm |
| 1946.0120220 | M12 x 220mm UAP-S | 30mm | ø 20 x 175mm | 300mm |
| 1946.0160240 | M16 x 240mm UAP-S | 40mm | ø 25 x 185mm | 400mm |
| 1946.0160290 | M16 x 290mm UAP-S | 40mm | ø 25 x 235mm | 400mm |
