Undercut 8g Head Self Driller Zinc

Undercut 8g Head Self Driller Zinc

  • 8g undercut countersunk head
  • 10g thread
  • Self drilling screw point (for metal)
  • Zinc plated
  • Phillips drive
SKU 3DU8CZ
Availability:
Pack:
Sub-total: / ex. gst.
Description

INSTALLATION

  • Drill Capacity: 0.75-3.5mm of Steel
  • Driver Type: Philips P2
  • Installation Speed: 2300-2500 RPM Max Drill Speed

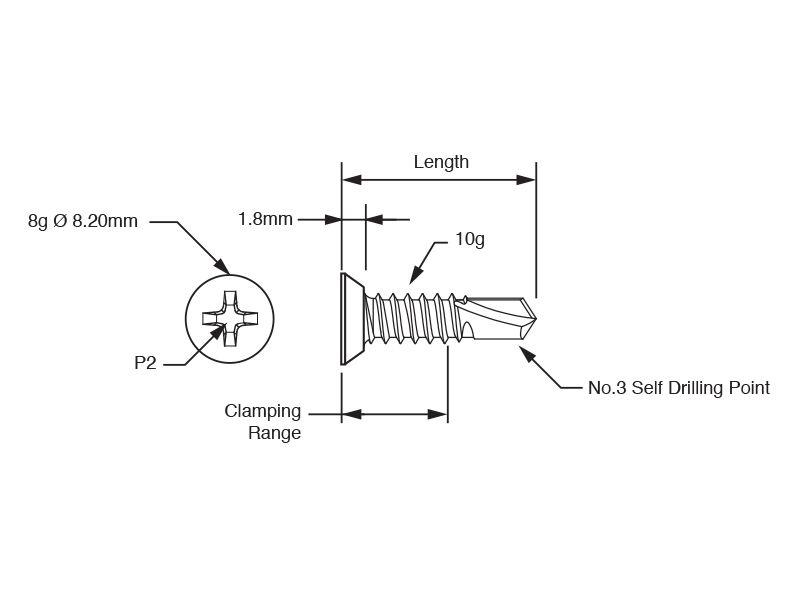

PHYSICAL CHARACTERISTICS

  • Head Type: 8g Undercut head (8g head on 10g screw)
  • Point Type: Self Drilling Point
  • Material: Carbon Steel
  • Finish: Zinc Plated
  • Head Dia: 8.2mm
  • Head Height: 1.9mm
Product List
SKU Description Availability List Price Pack
Pack:
More Information
More Information
Delivery SHIPS IN 1 - 2 DAYS
Coating & Plating Zinc Clear
Material Grade Carbon Steel
Head Type Undercut
Driver Type Philips
Diameter / Gauge 10g
Point Type Drill Point No.3
Thread Type Coarse
Application Steel-to-Steel Self Drilling
Technical Information
SKU Gauge x Length Finish Driver Bit Head Dia Gauge x Length
3DU8CZ10016 10-16 x 16mm Zinc Plated Ph2 8.0 mm 10-16 x 16mm
3DU8CZ10020 10-16 x 20mm Zinc Plated Ph2 8.0mm 10-16 x 20mm
Documents
