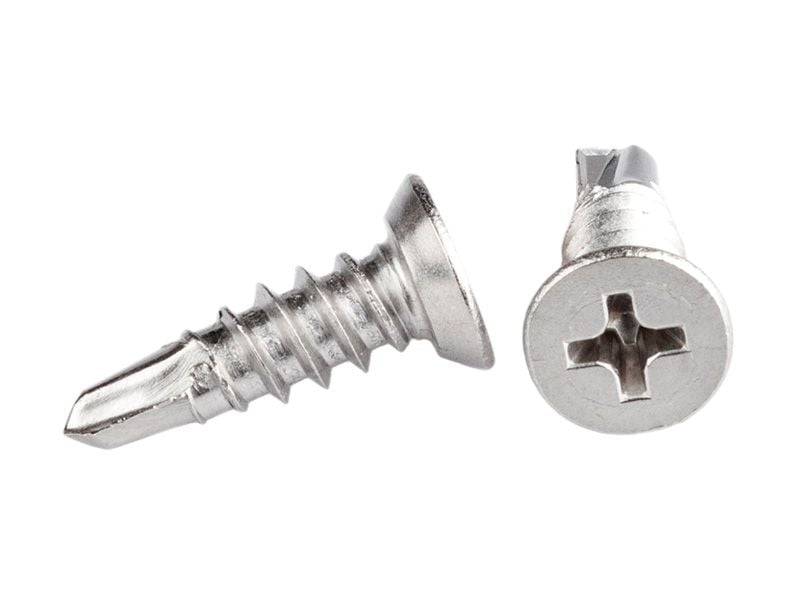

Undercut 8g Head Self Driller 304 Stainless
Undercut 8g Head Self Driller 304 Stainless
- 8g undercut countersunk head
- 10g thread
- Self drilling screw point (for metal)
- 304 stainless steel
- Phillips drive
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 0.75-3mm of Steel
- Driver Type: Philips P2
- Installation Speed: 2300-2500 RPM Max Drill Speed

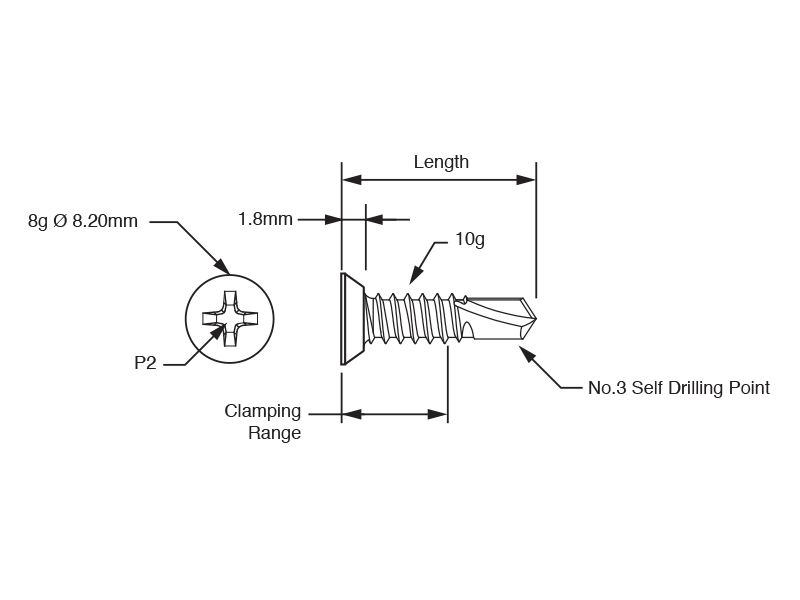

PHYSICAL CHARACTERISTICS
- Head Type: 8g Undercut Head
- Point Type: Self Drilling point
- Material: Grade 304 Stainless Steel
- Finish: N/A
- Head Dia: 8.2mm
- Head Height: 1.9mm
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Material Grade | 304 Stainless Steel |
| Head Type | Undercut |
| Driver Type | Philips Bit |
| Diameter / Gauge | 10g |
| Point Type | Drill Point No.3 |
| Thread Type | Coarse |
| Application | Steel-to-Steel Self Drilling |
Technical Information
| SKU | Gauge x Length | Finish | Driver Bit | Head Dia | Gauge x Length |
|---|---|---|---|---|---|
| 1131.0100016 | 10-16 x 16mm | Gr304 Stainless | Ph2 | 8.0 mm | 10-16 x 16mm |
