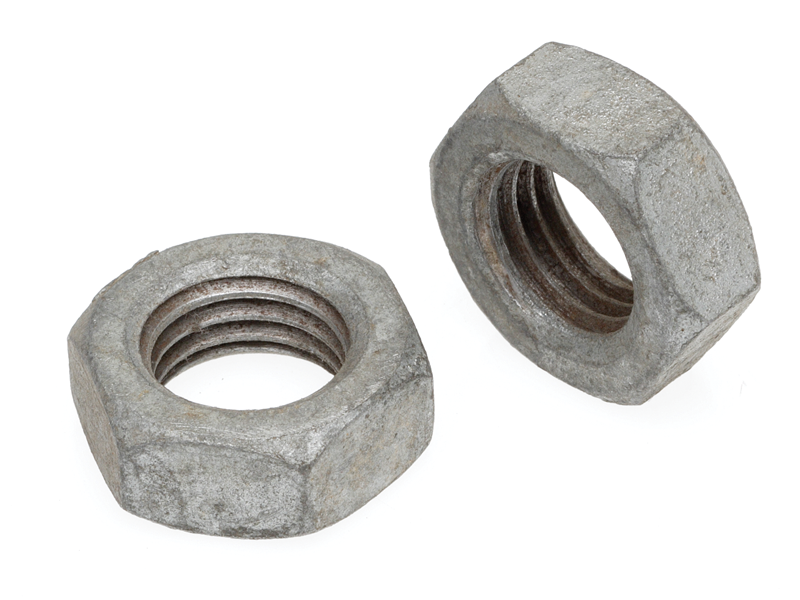

Hex Lock (Jam) Nut Gal Metric Class 4 AS1112.4
Hex Lock (Jam) Nut Gal Metric Class 4 AS1112.4

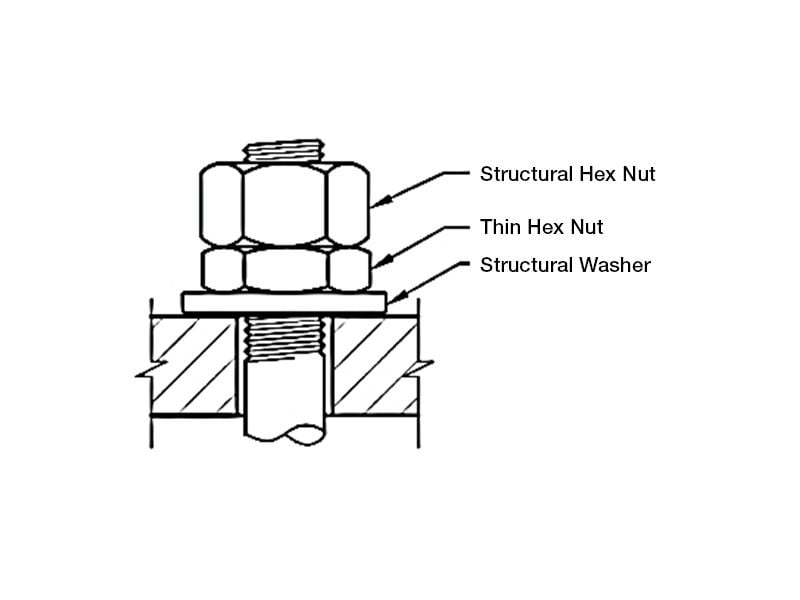

Lock nuts (or thin nuts) can be used with AS1252 bolt assemblies for a tighter fit in there application, acting as a lock between the full class 8 hex nut and structural washer.
A suitable lock nut to be used with AS1252 structural bolts are AS1112.4 galvanised lock nuts with a material property class 4. The total strength of this assembly is applied through the large class 8 hex nut, therefore a matching class 8 lock nut is not required.
- Hot dipped galvanised
- Lock nuts or jam nuts should be assembled between the washer and full hex nut
- Finger tighten the lock nut against the washer first
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: | ||||
More Information
| Material Grade | Carbon Steel |
|---|---|
| Coating & Plating | Hot Dipped Galvanised (HDG) |
| Nut Type | Hex Nuts |
| Diameter / Gauge | M8, M10, M12, M16, M20, M24, M36, M42, M48, M56, M64 |
| Thread Type | Metric |
Technical Information

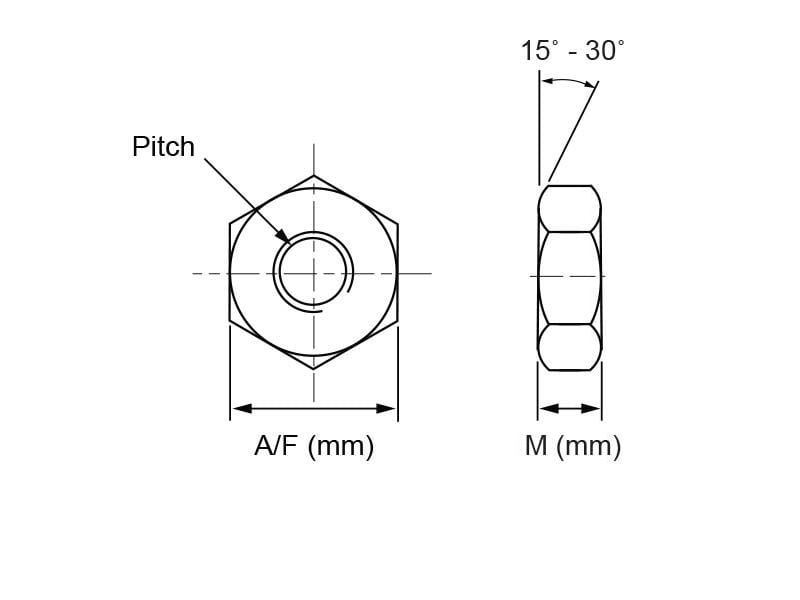

| SKU | Dia. - Pitch | A/F [ mm ] | M [ mm ] |
|---|---|---|---|
| 1513.0080000 | M8 - 1.25 | 13 | 4 |
| 1513.0100000 | M10 - 1.50 | 16 | 5 |
| 1513.0120000 | M12 - 1.75 | 18 | 6 |
| 1513.0160000 | M16 - 2.00 | 24 | 8 |
| 1513.0200000 | M20 - 2.50 | 30 | 10 |
| 1513.0240000 | M24 - 3.00 | 35 | 12 |
| 1513.0300000 | M30 - 3.50 | 35 | 15 |
| 1513.0360000 | M36 - 4.00 | 55 | 18 |
| 1513.0420000 | M42 - 4.5 | 65 | 21 |
| 1513.0480000 | M48 - 5.00 | 75 | 24 |
| 1513.0560000 | M56 - 5.50 | 85 | 27 |
| 1513.0640000 | M64 - 6.00 | 95 | 32 |
