SD500® Wafer 12-24 Self Drilling Screws Gr316 Stainless Bi-Metal

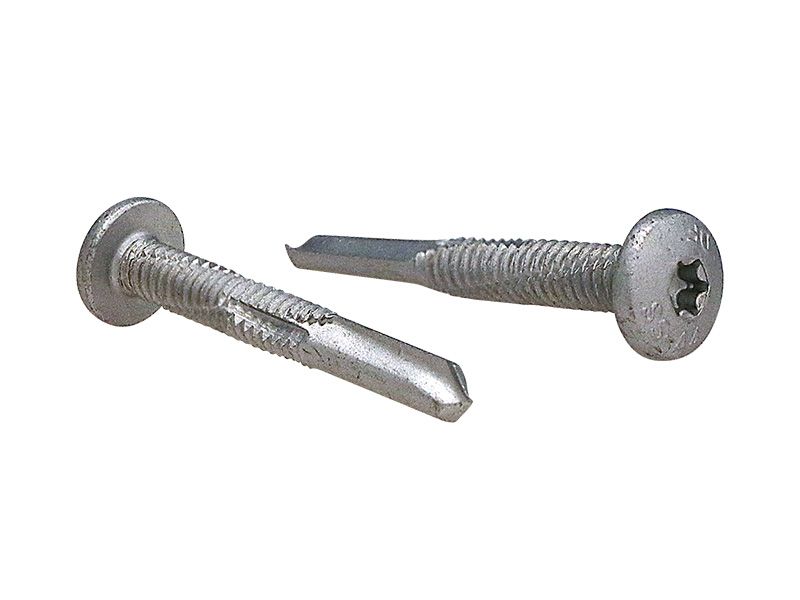

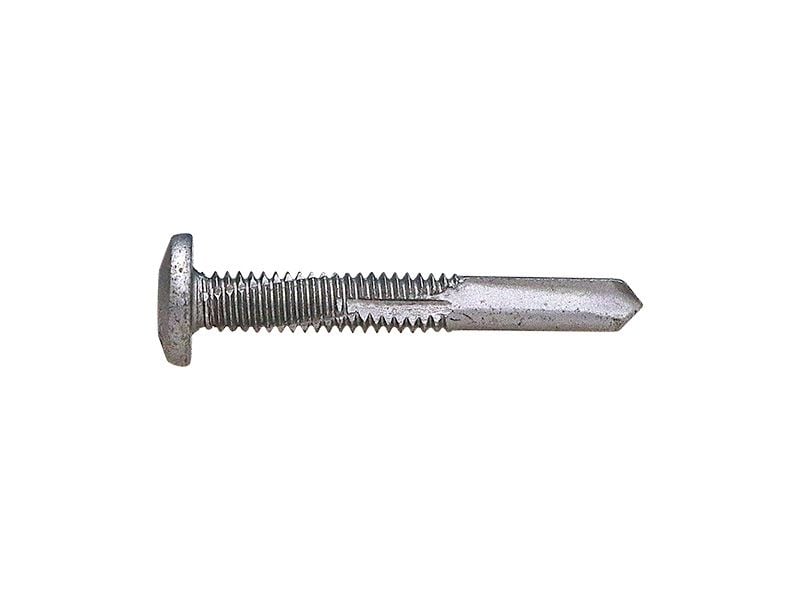

Torx wafer head SD500® self-drilling screws are an ideal fixing for thick 12mm steel section such as purlins and hot-rolled steel. Used by builders and façade installers for exterior and cladding application the bimetal stainless steel has excellent corrosion resistant properties. A torx recess drive also provides increased amount of positive drive, reducing cam-out and damage to screw heads. Wafer head screws are also more aesthetically pleasing with their very flat head design at only 3mm high.

SD500 screws are a self drilling screw featuring an extended (no. 5) drill point for drilling through steel up to 12 mm. Designed to cut its own mating threads into the material to fasten securely in one action. To ensure effective installation the drill point must be completely drilled through the joining material.

SKU 3S5WT1BS4

Availability:

Pack:

Buy

Sub-total: / ex. gst.

Grouped product items
Product Name	Qty
12-24 x 40mm S/Drill SD500 Screw Wafer Hd Torx T25 Drv Gr316 S/S Bi-Metal From $623.70

Build A Quote?

Store Item

SKU:

Description

INSTALLATION

Drill Capacity: 12mm of Steel
Driver Type: T25 Torx Drive
Installation Speed: 1800 RPM Max Drill Speed

PHYSICAL CHARACTERISTICS

Head Type: Wafer Head
Point Type: Self-Drilling No 5 Point
Material: Bimetal (stainless steel 316 grade, heat treated alloy steel tip)
Finish: Ruspert Coating
Head Dia: 12.0mm
Head Height: 3.0mm

CORROSION RESISTANCE

Austenitic stainless steel 316 grade with Ruspert coating. Marine grade 316 stainless steel provides adequate corrosive resistance, whilst the ruspert coating ensures an aesthetically consistent surface appearance.

Ruspert coating is a high-grade metal surface technology that prevents surface corrosion. Consisting of a baked ceramic surface coating and a second metallic zinc layer, these layers are bonded together through chemical reactions producing
a strong coating film.

Product List

SKU	Description	Availability	List Price	Pack
				Pack:

More Information

More Information
Coating & Plating	Ruspert
Material Grade	Bimetal Stainless Steel
Head Type	Wafer
Driver Type	Torx Bit
Diameter / Gauge	12g
Point Type	Drill Point No.5
Thread Type	Fine
For use with	Steel
Application	Self Drilling Thick Steel, Steel-to-Steel Self Drilling
Use for	Facade & Cladding, Marine & Pool Areas, Outdoor Structure, Steel to Steel Connections
