SD500® Insulated Panel Screws Bimetal Stainless
SD500® Insulated Panel Screws Bimetal Stainless

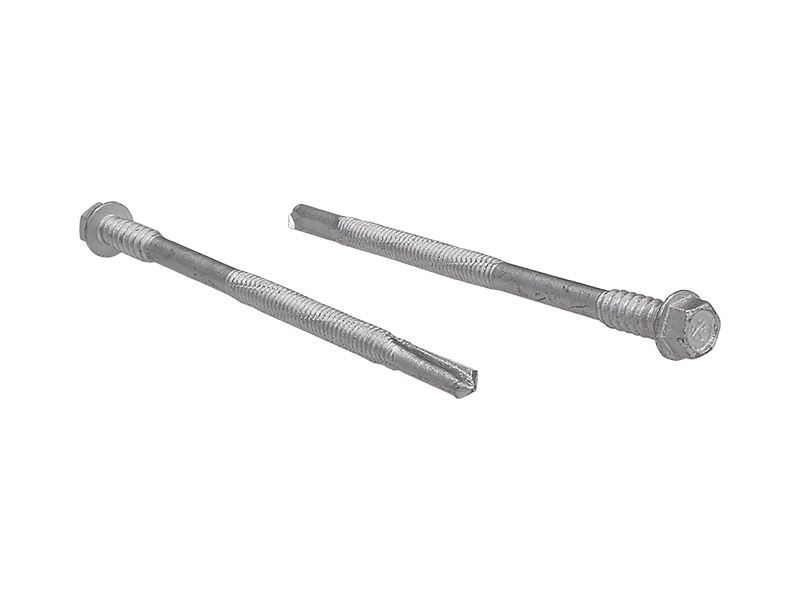

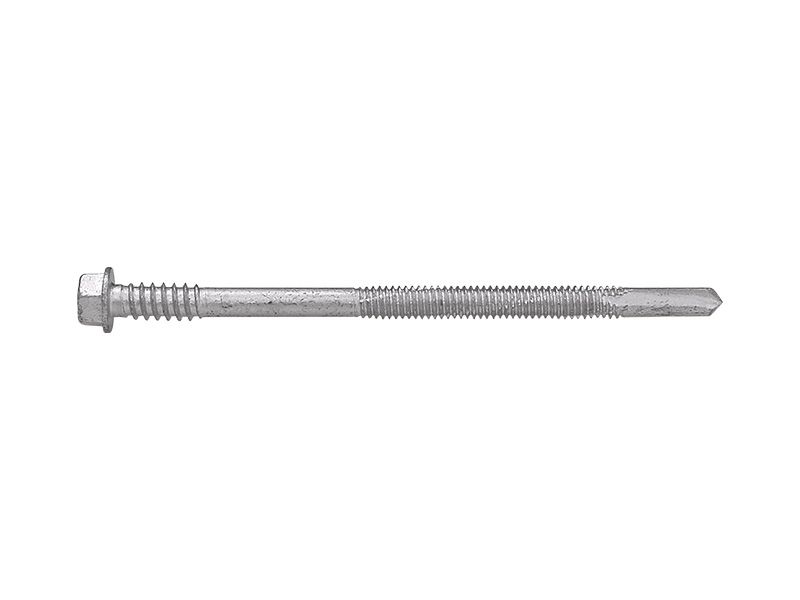

Self-drilling long 12–24-gauge panel screws feature threads below the head suitable for fixing insulated panel sheeting to metal. The panel grip thread below the head secures roof sheeting and prevents movement along the screw shank when the roof is walked upon.
These insulation panel screws are a bimetal material – a hardened carbon steel drill tip with a 304 grade stainless steel body and head. This provides the ultimate corrosion protection in a self-drilling screw to the outdoor elements. A dual layer Ruspert surface coating is applied and will not appear to have a typical stainless steel look.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Description
INSTALLATION
- Drill Capacity: 4.5-12mm of Steel
- Driver Type: 5/16 Hex Socket
- Installation Speed: 1800 RPM Max Drill Speed

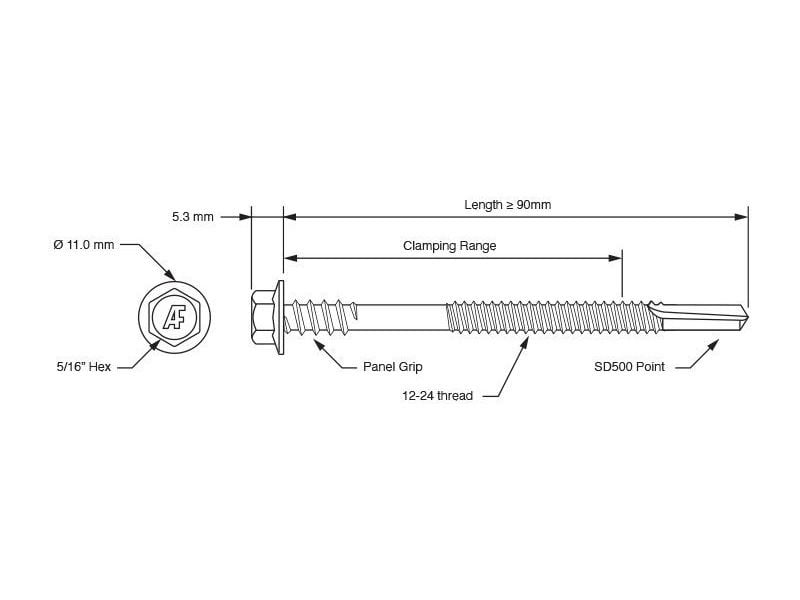

PHYSICAL CHARACTERISTICS
- Head Type: Hex
- Point Type: Self-Drilling No 5 Point
- Material: Bimetal (stainless steel 304 grade, heat treated alloy steel tip)
- Finish: Ruspert
- Head Dia: 11mm
- Head Height: 5.3mm
CORROSION RESISTANCE
Austenitic stainless steel 304 grade with Ruspert coating. Ruspert coating is a high-grade metal surface technology that prevents surface corrosion. Consisting of a baked ceramic surface coating and a second metallic zinc layer, these layers are bonded together through chemical reactions producing a strong coating film.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Delivery | SHIPS IN 1 - 2 DAYS |
|---|---|
| Coating & Plating | Ruspert |
| Material Grade | Bimetal Stainless Steel |
| Head Type | Hex Washer |
| Driver Type | Hex Sockets |
| Diameter / Gauge | 12g |
| Point Type | Drill Point No.5 |
| Thread Type | Fine |
| Application | Timber-to-Steel Self Drilling |
Technical Information
| SKU | Gauge x Length | Material | Fix. Range | Thread | Gauge x Length |
|---|---|---|---|---|---|
| 1171.0120090 | 12-24 x 90mm | Bimetal | 22 / 67mm | Part | 12-24 x 90mm |
| 1171.0120100 | 12-24 x 100mm | Bimetal | 22 / 77mm | Part | 12-24 x 100mm |
| 1171.0120125 | 12-24 x 125mm | Bimetal | 47 / 102mm | Part | 12-24 x 125mm |
