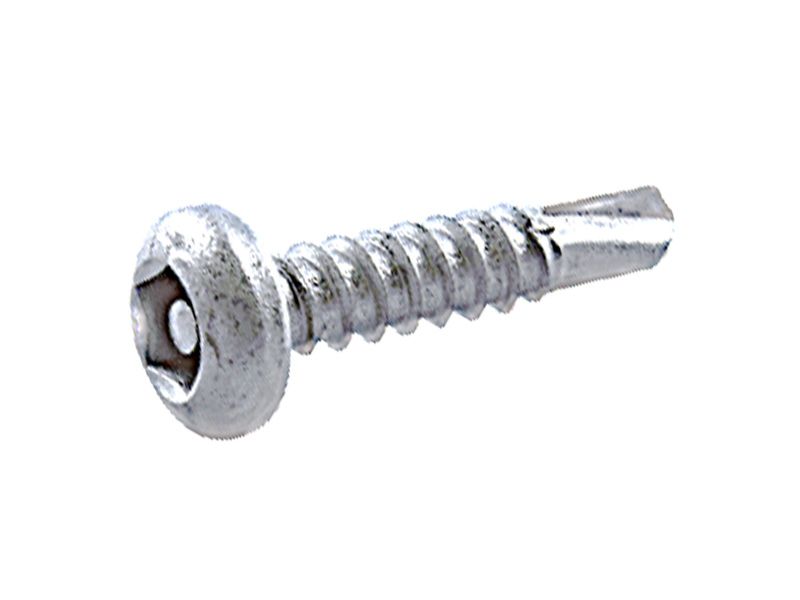

PROLOK Pentaforce Pan Self Drilling Screw Galvanised
PROLOK Pentaforce Pan Self Drilling Screw Galvanised
High Security ● ● ●
Pentaforce Pan screw offers medium security, it features a 5 sided pentagon recess to stop all standard driver tool shapes. Pan head shape provides a clean and excellent visuals and safety benefit, seats flush into the material.
It requires a special driver to fix and tighten to desired torque.
Availability:
Require a Quote?
Instant quotes online are available to all our trade customers using Trade Portal.
Login and simply add items into your cart. View and edit your cart before pressing Submit Quote. Quotes will be available instantly online.
Product List
| SKU | Description | Availability | List Price | Pack |
|---|---|---|---|---|
| Pack: |
More Information
| Security Level | High Security |
|---|---|
| Tooling | Restricted availability – registration of tool is required with purhcase of tools. |

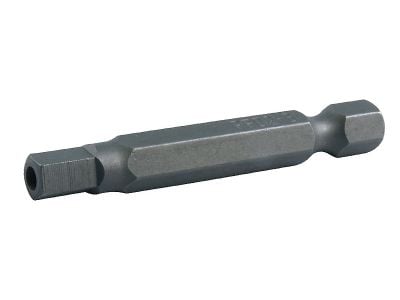

| Driver Type | Pentaforce Security Bit |
| Head Type | Pan |
| Diameter / Gauge | 8g, 10g, 12g, 14g |
| Thread Type | Coarse |
| Point Type | Drill Point No.3 |
| Material Grade | Carbon Steel |
| Coating & Plating | Galvanised |
Technical Information
| SKU | Item: | Drive Direction: | Driver Type: |
|---|---|---|---|
| 1572.0081809 | 8g-18 x 9.5mm | 2-WAY | No.1 Pentaforce |
| 1572.0081812 | 8g-18 x 12.5mm | 2-WAY | No.1 Pentaforce |
| 1572.0081819 | 8g-18 x 19mm | 2-WAY | No.1 Pentaforce |
| 1572.0081825 | 8g-18 x 25mm | 2-WAY | No.1 Pentaforce |
| 1572.0101016 | 10g-16 x 16mm | 2-WAY | No.1 Pentaforce |
| 1572.0101625 | 10g-16 x 25mm | 2-WAY | No.1 Pentaforce |
| 1572.0101638 | 10g-16 x 38mm | 2-WAY | No.1 Pentaforce |
| 1572.0121525 | 12g-14 x 25mm | 2-WAY | No.2 Pentaforce |
| 1572.0121438 | 12g-14 x 38mm | 2-WAY | No.2 Pentaforce |
| 1572.0121450 | 12g-14 x 50mm | 2-WAY | No.2 Pentaforce |
| 1572.0121463 | 12g-14 x 63mm | 2-WAY | No.2 Pentaforce |
| 1572.0141050 | 14g-10 x 50mm | 2-WAY | No.2 Pentaforce |
